RH35I-ZID.DC.CR
Brand：
ZIEHL-ABEGG
Category：
Centrifugal Fan
Description：
Type: EC Centrifugal fan
Air output (m³/h):8200
Speed (RPM): 3100
IP54 protection: Moisture and hot climate protection

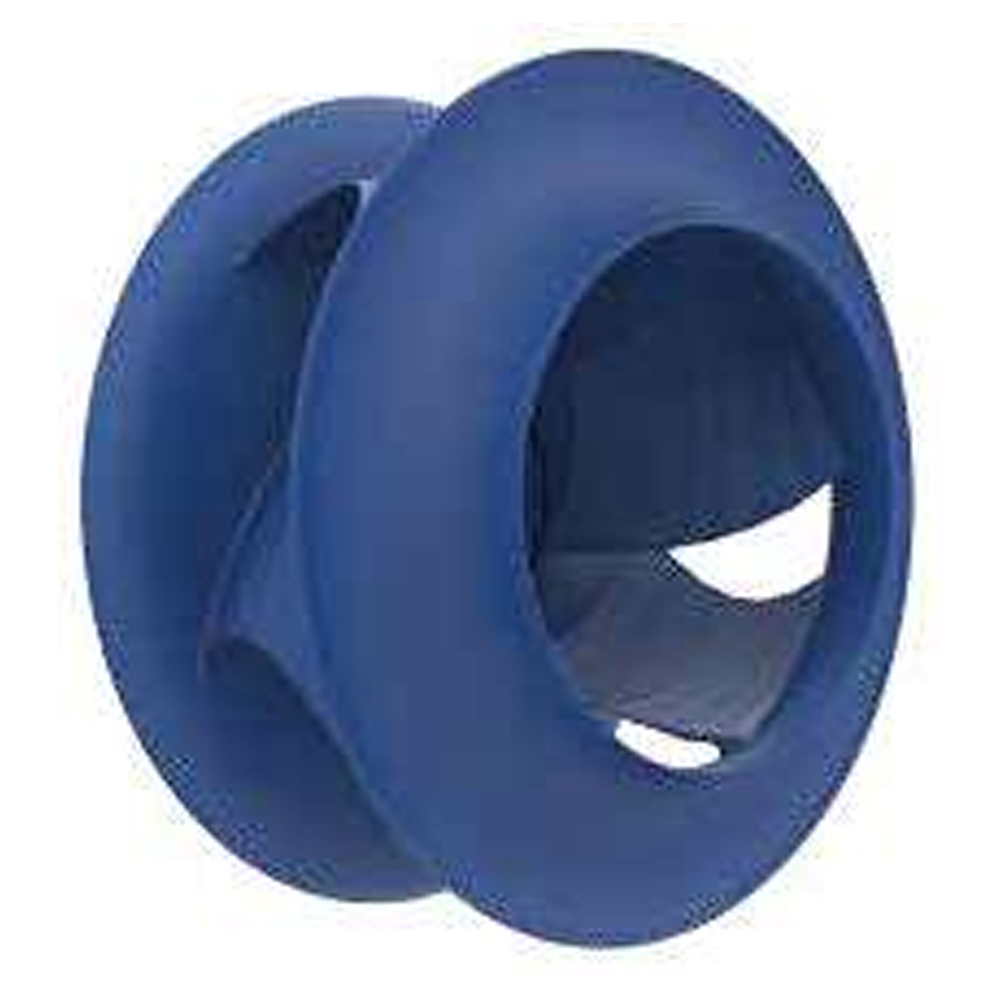

ZAmid- high performance composite material impeller
Air output (m³/h):8200
Speed (RPM): 3100
IP54 protection: Moisture and hot climate protection
ZAmid- high performance composite material impeller
Nominal data
Brand：
ZIEHL-ABEGG
Part No.：
RH35I-ZID.DC.CR
Fan Type：
Centrifugal Fan
Rated Voltage(V)：
400
Size(mm)：
355
Max.Air Flow(m³/h)：
8200
Max.Pressure(Pa)：
1610
Input Power(W)：
2500
Speed(rpm)：
3100
Noise(db)：
78
Description

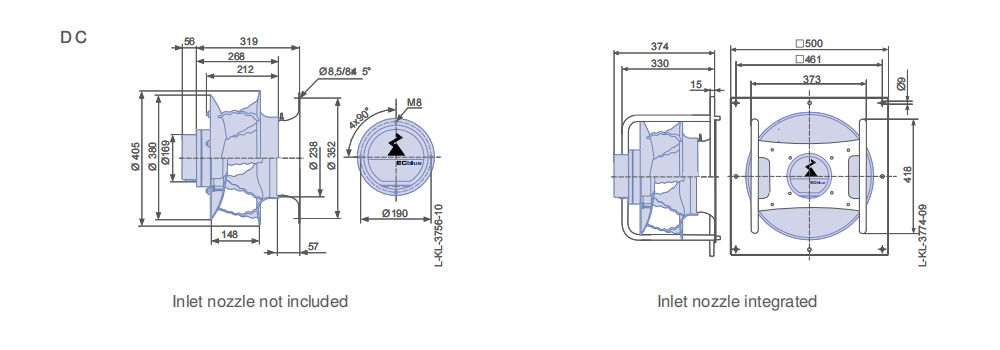

RH35I-ZID.DC.CR Ziehl-Abegg Specification Drawing：
