Product
GR22V-4IP.ZC.AR
Brand:
ZIEHL-ABEGG
Category:
Centrifugal Fan
Description:
Type: Centrifugal fan
Air output (m³/h): 1380
Speed (RPM): 3230
Min. operating temperature: -30°C
IP54 protection: Moisture and hot climate protection
High-performance composites impeller
Air output (m³/h): 1380
Speed (RPM): 3230
Min. operating temperature: -30°C
IP54 protection: Moisture and hot climate protection
High-performance composites impeller
Nominal data
Brand:
ZIEHL-ABEGG
Part No.:
GR22V-4IP.ZC.AR
Fan Type:
Centrifugal Fan
Rated Voltage(V):
230
Size(mm):
220
Max.Air Flow(m³/h):
1380
Max.Pressure(Pa):
800
Input Power(W):
170
Speed(rpm):
3230
Noise(db):
40
Description

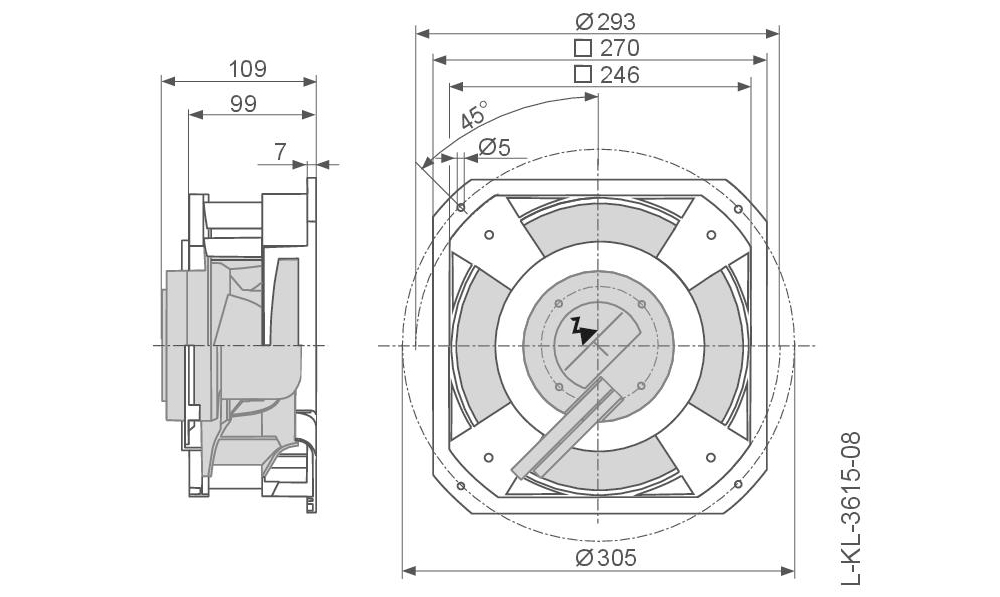

GR22V-4IP.ZC.AR Ziehl-Abegg Specification Drawing:
