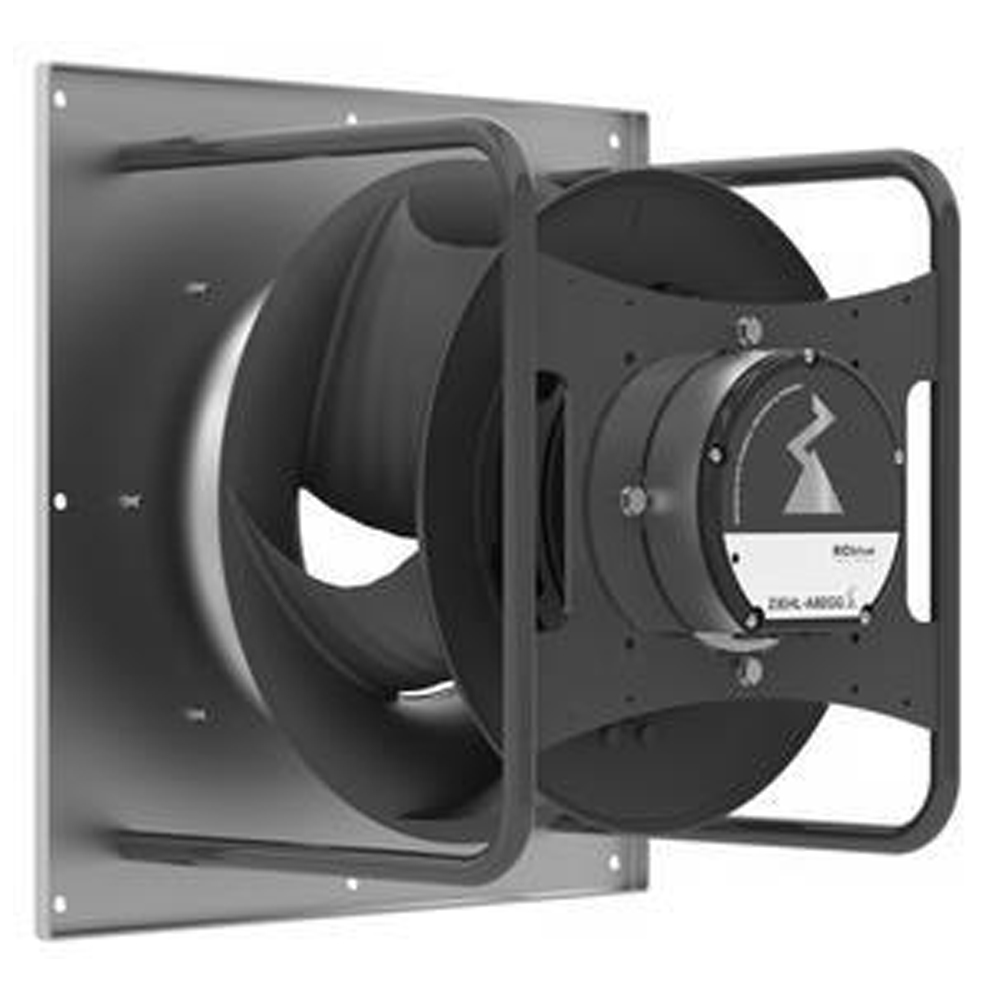

Product
GR28I-6ID.BD.CR
Brand:
ZIEHL-ABEGG
Category:
Centrifugal Fan
Description:
Type: Centrifugal fan
Air output (m³/h): 3960
Speed (RPM): 3110
Min. operating temperature: -20°C
IP54 protection: Moisture and hot climate protection
ZAmid impeller
Air output (m³/h): 3960
Speed (RPM): 3110
Min. operating temperature: -20°C
IP54 protection: Moisture and hot climate protection
ZAmid impeller
Nominal data
Brand:
ZIEHL-ABEGG
Part No.:
GR28I-6ID.BD.CR
Fan Type:
Centrifugal Fan
Rated Voltage(V):
230
Size(mm):
280
Max.Air Flow(m³/h):
3960
Max.Pressure(Pa):
1000
Input Power(W):
780
Speed(rpm):
3110
Noise(db):
40
Description

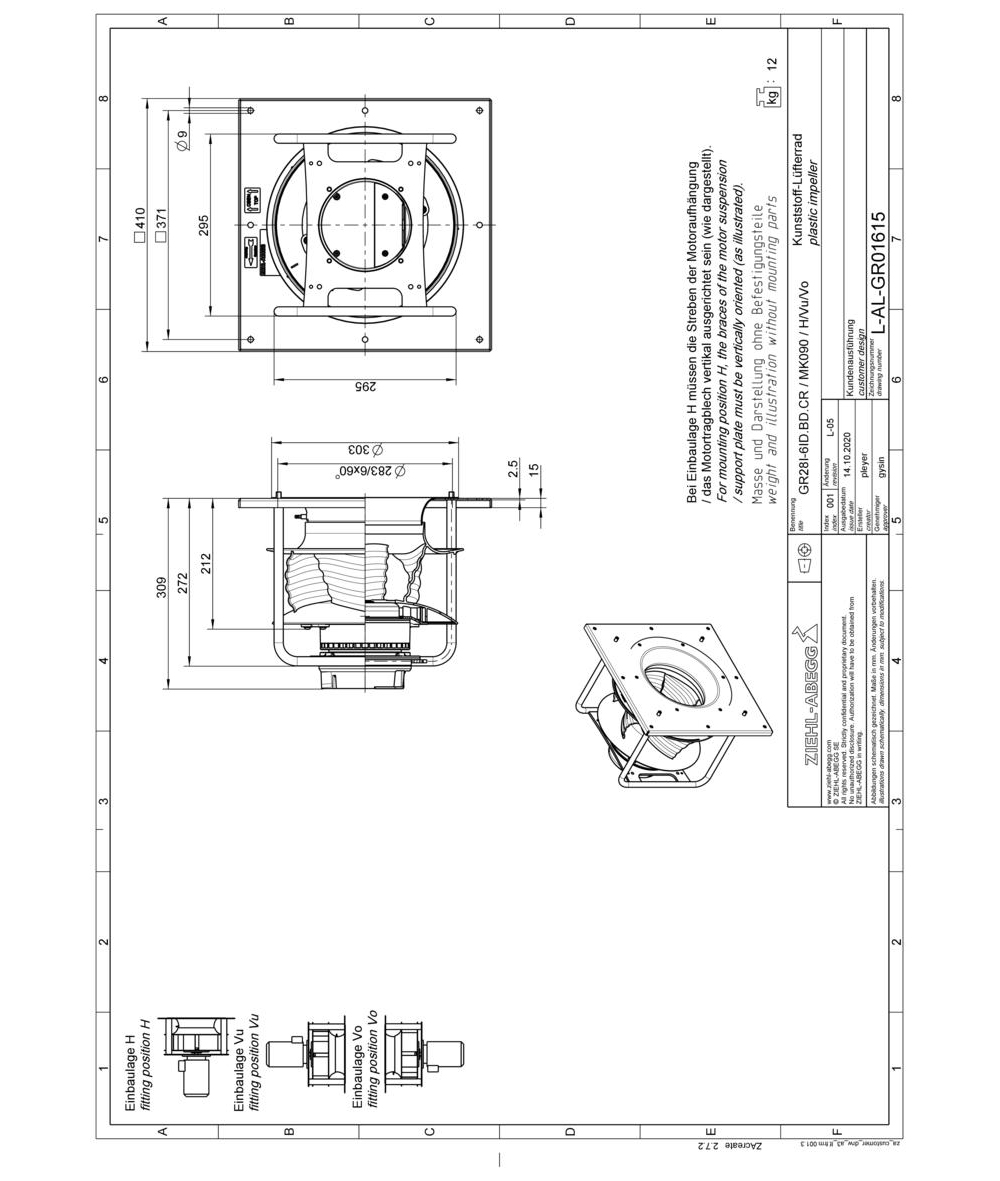

GR28I-6ID.BD.CR Ziehl-Abegg Specification Drawing:
