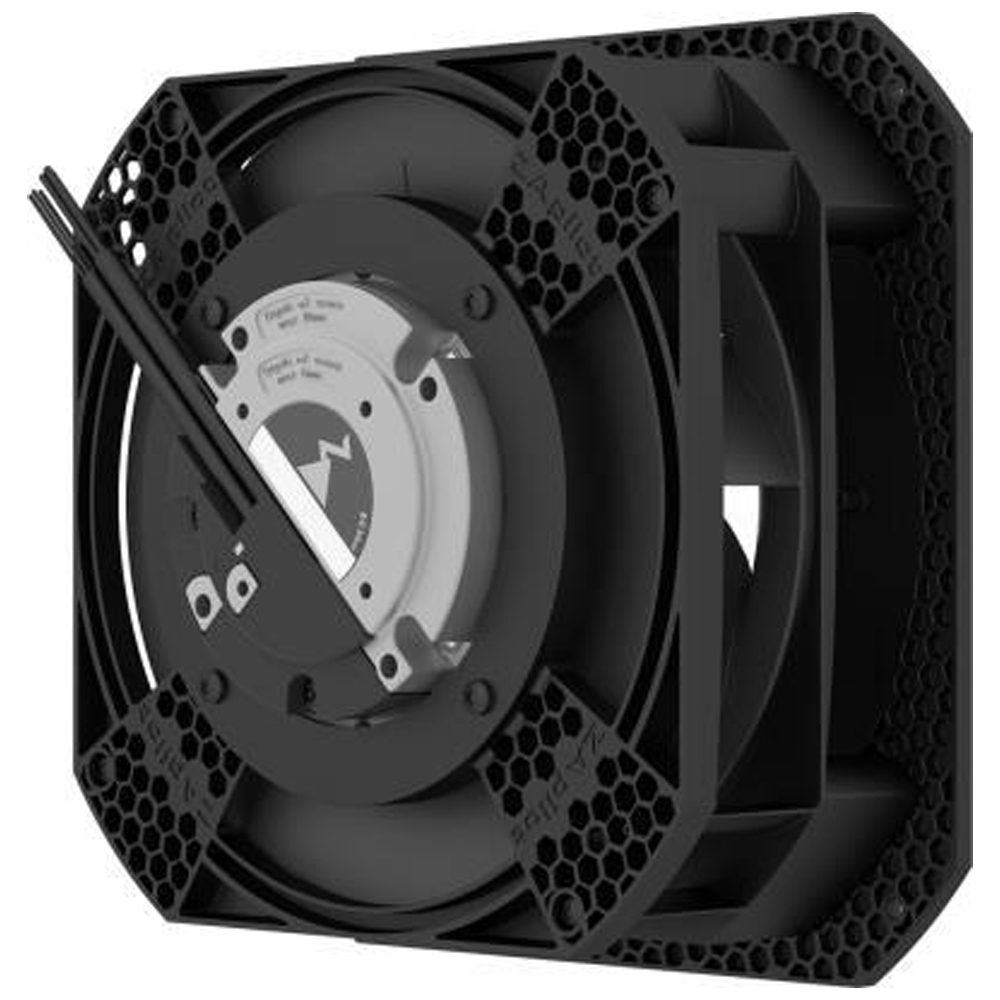

GR25V-4IP.ZC.AR
Brand：
ZIEHL-ABEGG
Category：
Centrifugal Fan
Description：
Type: Centrifugal fan
Air output (m³/h): 1750
Speed (RPM): 2480
Min. operating temperature: -30°C
IP54 protection: Moisture and hot climate protection
High-performance composites impeller
Air output (m³/h): 1750
Speed (RPM): 2480
Min. operating temperature: -30°C
IP54 protection: Moisture and hot climate protection
High-performance composites impeller
Nominal data
Brand：
ZIEHL-ABEGG
Part No.：
GR25V-4IP.ZC.AR
Fan Type：
Centrifugal Fan
Rated Voltage(V)：
230
Size(mm)：
250
Max.Air Flow(m³/h)：
1750
Max.Pressure(Pa)：
780
Input Power(W)：
170
Speed(rpm)：
2480
Noise(db)：
45
Description

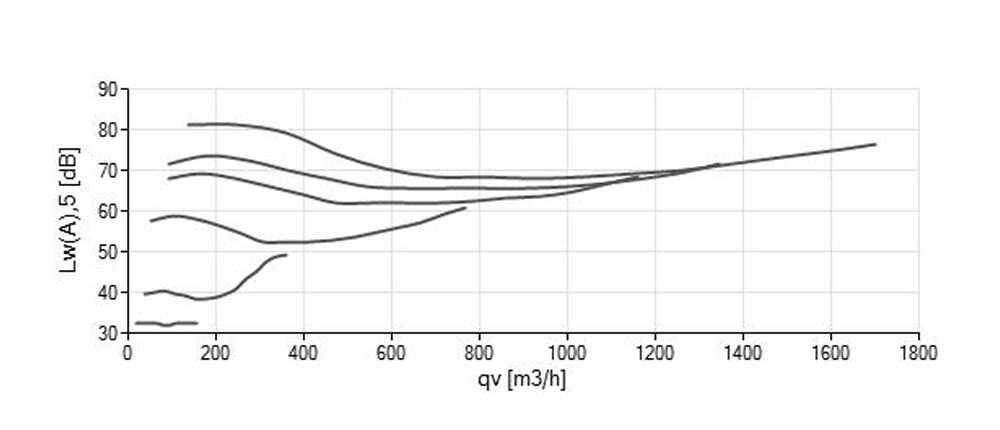

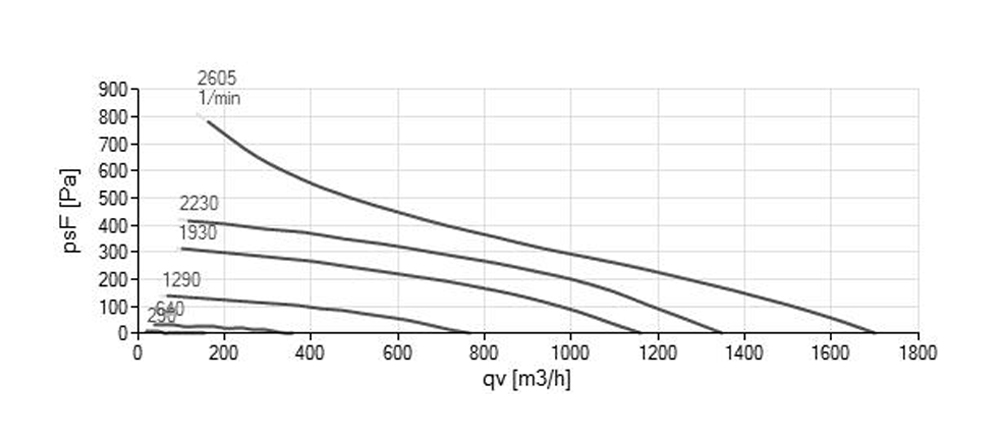

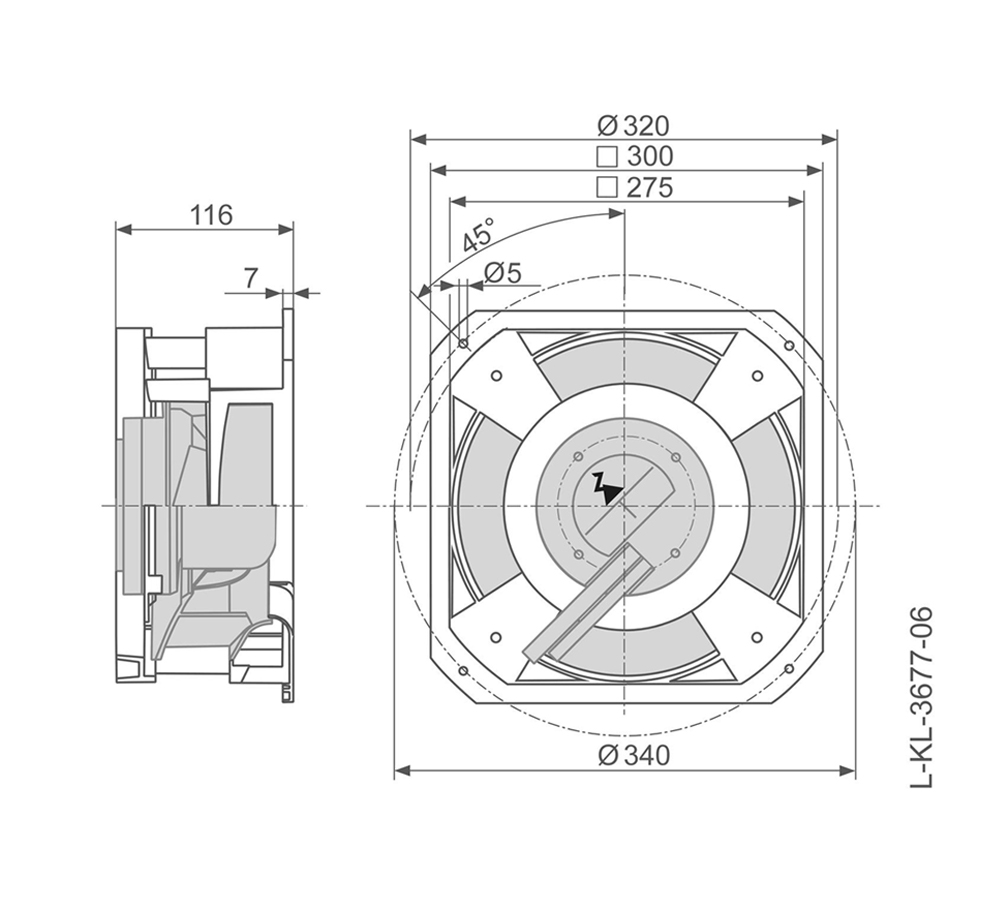

GR25V-4IP.ZC.AR Ziehl-Abegg Specification Drawing：
