Product
GR22V-4IP.ZC.BR
Brand:
ZIEHL-ABEGG
Category:
Centrifugal Fan
Description:
Type: Centrifugal fan
Air output (m³/h): 1480
Speed (RPM): 2810
Min. operating temperature: -30°C
IP54 protection: Moisture and hot climate protection
High-performance composites impeller
Air output (m³/h): 1480
Speed (RPM): 2810
Min. operating temperature: -30°C
IP54 protection: Moisture and hot climate protection
High-performance composites impeller
Nominal data
Brand:
ZIEHL-ABEGG
Part No.:
GR22V-4IP.ZC.BR
Fan Type:
Centrifugal Fan
Rated Voltage(V):
230
Size(mm):
225
Max.Air Flow(m³/h):
1480
Max.Pressure(Pa):
810
Input Power(W):
170
Speed(rpm):
2810
Noise(db):
40
Description

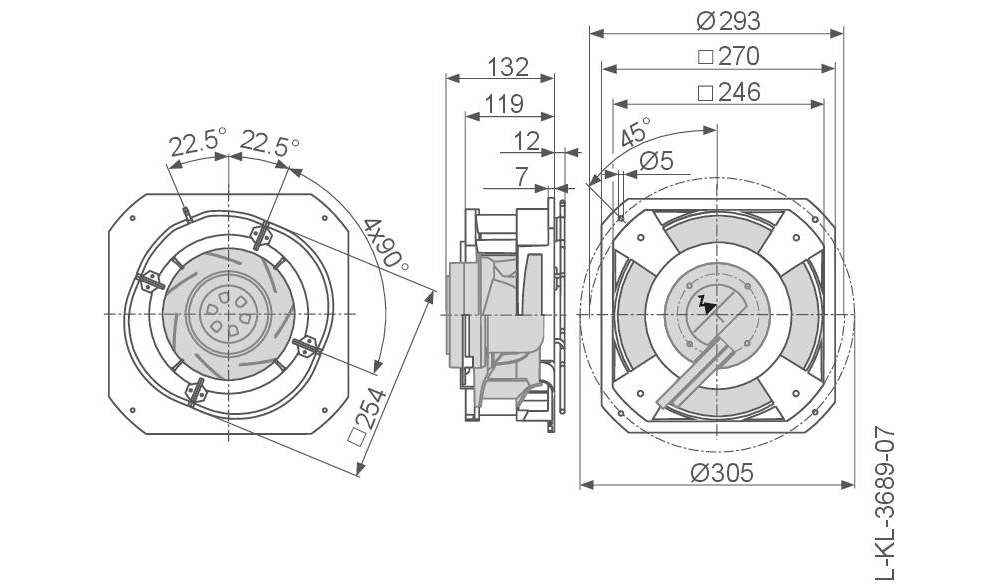

GR22V-4IP.ZC.BR Ziehl-Abegg Specification Drawing:
