Product
GR35I-ZID.DG.CR
Brand:
ZIEHL-ABEGG
Category:
Centrifugal Fan
Description:
Type: EC Centrifugal fan
Air output (m³/h): 9000
Speed (RPM): 3410
IP55 protection: Moisture and hot climate protection
ZAmid- high performance composite material impeller
Air output (m³/h): 9000
Speed (RPM): 3410
IP55 protection: Moisture and hot climate protection
ZAmid- high performance composite material impeller
Nominal data
Brand:
ZIEHL-ABEGG
Part No.:
GR35I-ZID.DG.CR
Fan Type:
Centrifugal Fan
Rated Voltage(V):
400
Size(mm):
355
Max.Air Flow(m³/h):
9000
Max.Pressure(Pa):
1975
Input Power(W):
3300
Speed(rpm):
3410
Noise(db):
80
Description

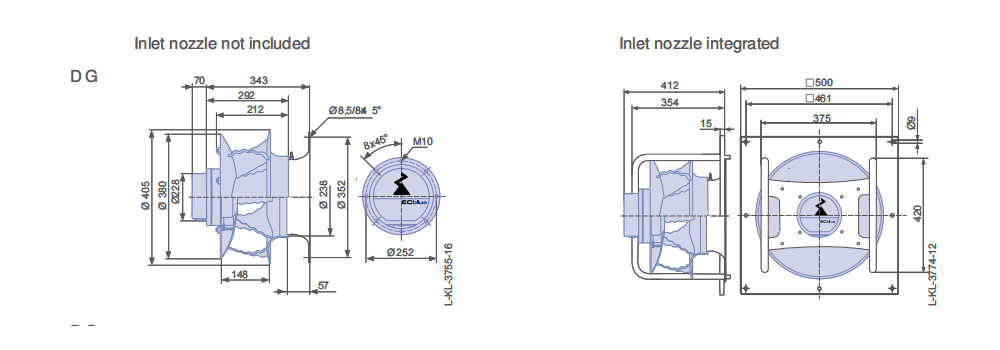

GR35I-ZID.DG.CR Ziehl-Abegg Specification Drawing:
