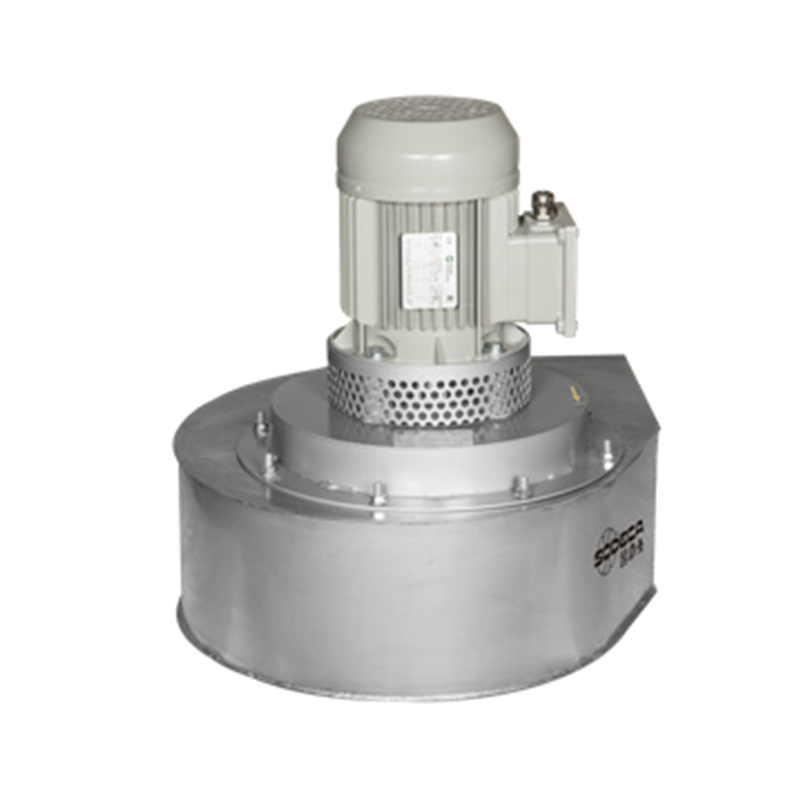

SDECB/Z Fans For Ovens
Brand：
SODECA
Document：
Category：
Description：
Stainless steel centrifugal fans to extract air at up to 300 ºC in bakery and process ovens. Vertical air outlet
Description
Fan:
• Stainless steel sheet casing.
• Forward curved impeller in galvanised sheet steel.
• Directly coupled motor with B-5 flange.
• With one or two cooling disk mounted on the motor shaft to dissipate the heat.
• Heat shield separator in sheet steel.
• Maximum temperature of air to be carried: -25 ºC +300 ºC.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive with temperature resistant anticaloric paint, aluminum color.
On request:
• Special windings for different voltages.
• Painted steel fan.
