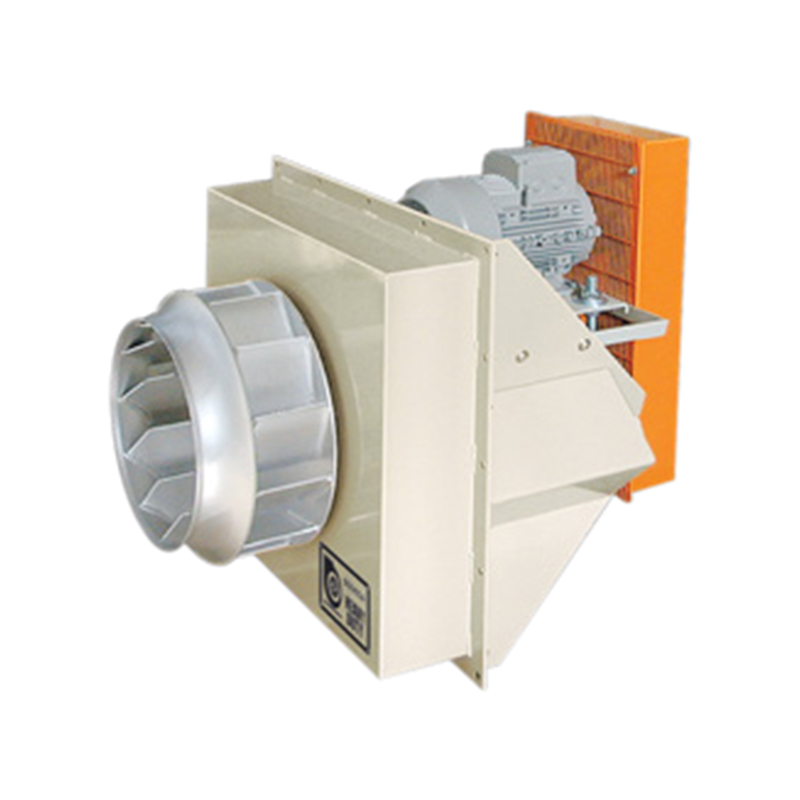

CMRH Fans For Ovens
Brand：
SODECA
Document：
Category：
Description：
Belt driven fans, with electric motor, pulleys, belts, guards and 150 mm thich insulation, for horizontal installation
Nominal data
Brand：
SODECA
Part No.：
CMRH
Fan Type：
Rated Voltage(V)：
1~230/3~400
Size(mm)：
Max.Air Flow(m³/h)：
9620
Max.Pressure(Pa)：
Input Power(W)：
2200-22000
Speed(rpm)：
1365-2120
Noise(db)：
79-90
Description
Fan:
• Structure in thick sheet steel.
• Backward curved impeller in highly robust sheet steel.
• Transmission group with cast iron bearings and support.
• Maximum temperature of air to be carried: -25 ºC +300 ºC.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Treatment with heat resistant paint.
On request:
• Special windings for different voltages.
• Refractory steel fan for temperatures up to 400 ºC.
• Execution for vertical work.
