SDECB/M Fans For Ovens
Brand：
SODECA
Document：
Category：
Description：

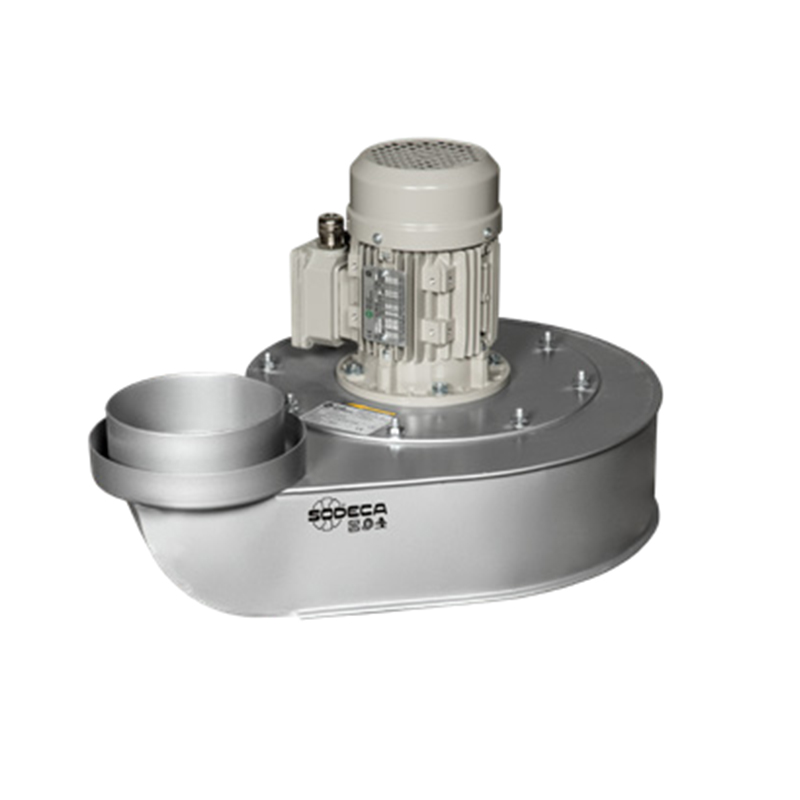

Centrifugal fans to extract air at up to 80 ºC in bakery and process ovens. Vertical air outlet
Nominal data
Brand：
SODECA
Part No.：
SDECB/M
Fan Type：
Rated Voltage(V)：
1~230/3~400
Size(mm)：
Max.Air Flow(m³/h)：
830
Max.Pressure(Pa)：
Input Power(W)：
250-370
Speed(rpm)：
890-2800
Noise(db)：
49-60
Description
Fan:
• Sheet steel casing.
• Forward curved impeller in galvanised sheet steel.
• Directly coupled motor with B-5 flange.
• Maximum temperature of air to be carried: -25 ºC +80 ºC.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive with temperature resistant anticaloric paint, aluminum color.
On request:
• Special windings for different voltages.
• Stainless steel fan.
