FC091-SDQ.7Q.V7

Brand：

ZIEHL-ABEGG

Category：

Axial Fan

Description：

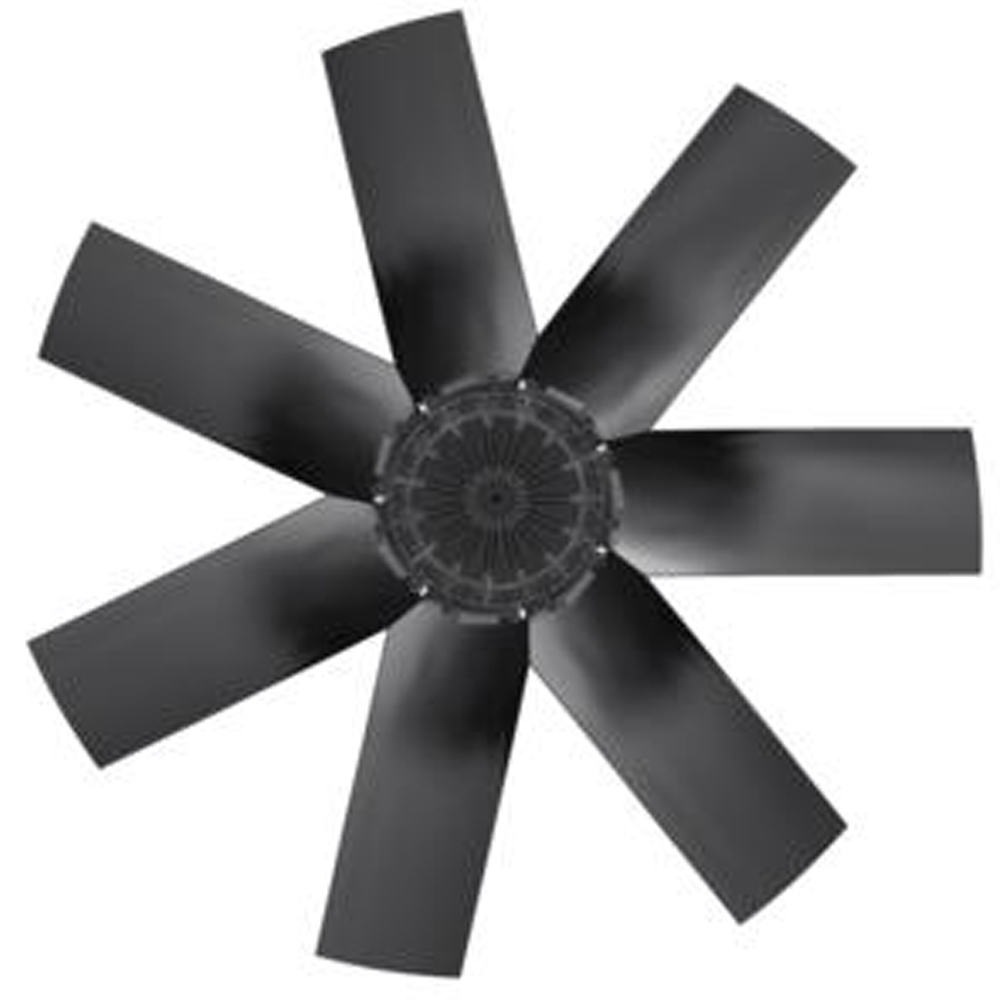

Type: Axial fan with die-cast blades and square wall ring plate
Air output (m³/h): 27168
Speed (RPM): 850
Min. operating temperature: -40°C
IP54 protection
Aluminium rotor and blades

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

FC091-SDQ.7Q.V7

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

910

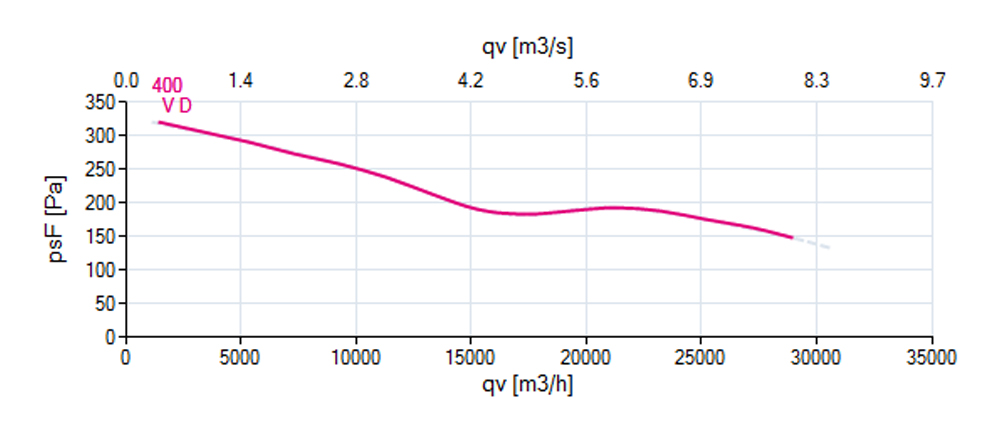

Max.Air Flow(m³/h)：

27168

Max.Pressure(Pa)：

310

Input Power(W)：

330

Speed(rpm)：

850

Noise(db)：

Description

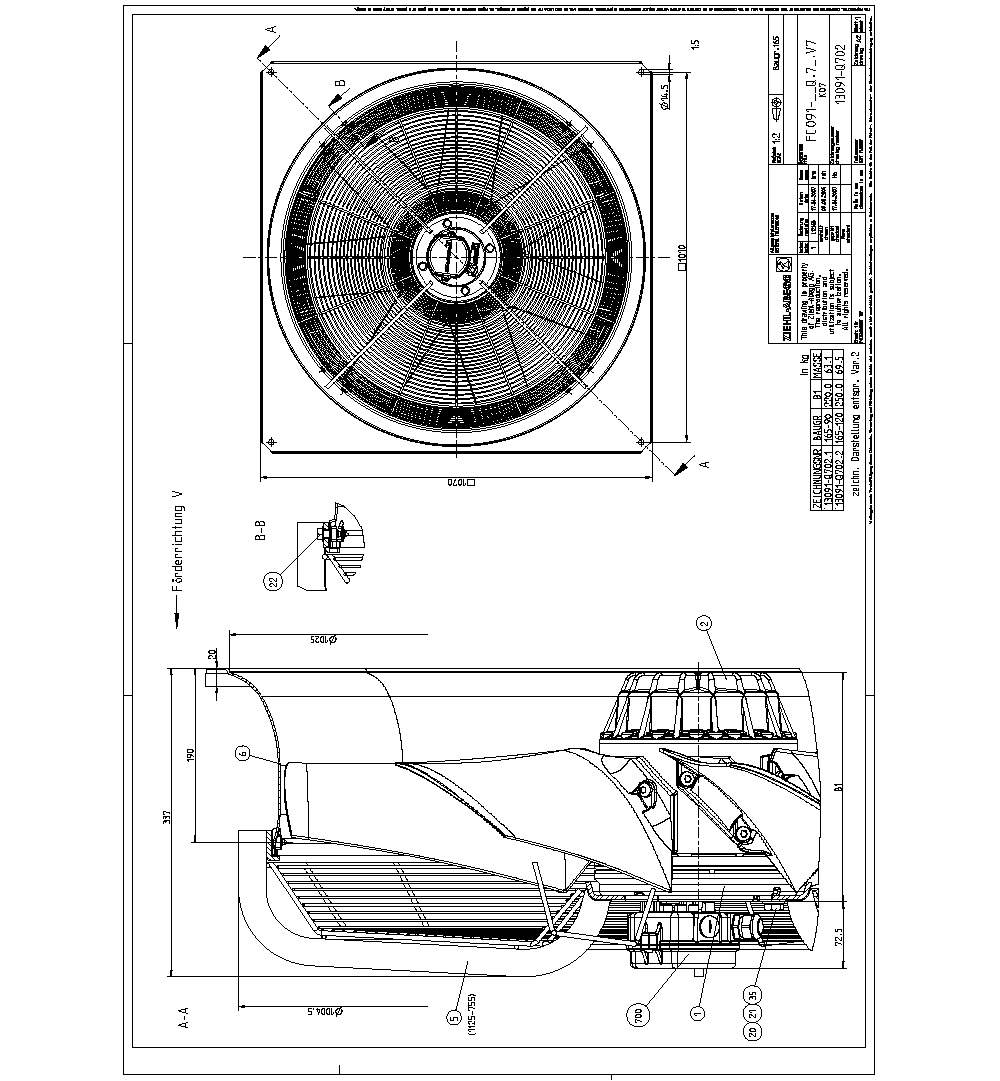

FC091-SDQ.7Q.V7 Ziehl-Abegg Specification Drawing：
