Product
FC091-6DQ.7Q.A7
Brand:
ZIEHL-ABEGG
Category:
Axial Fan
Description:

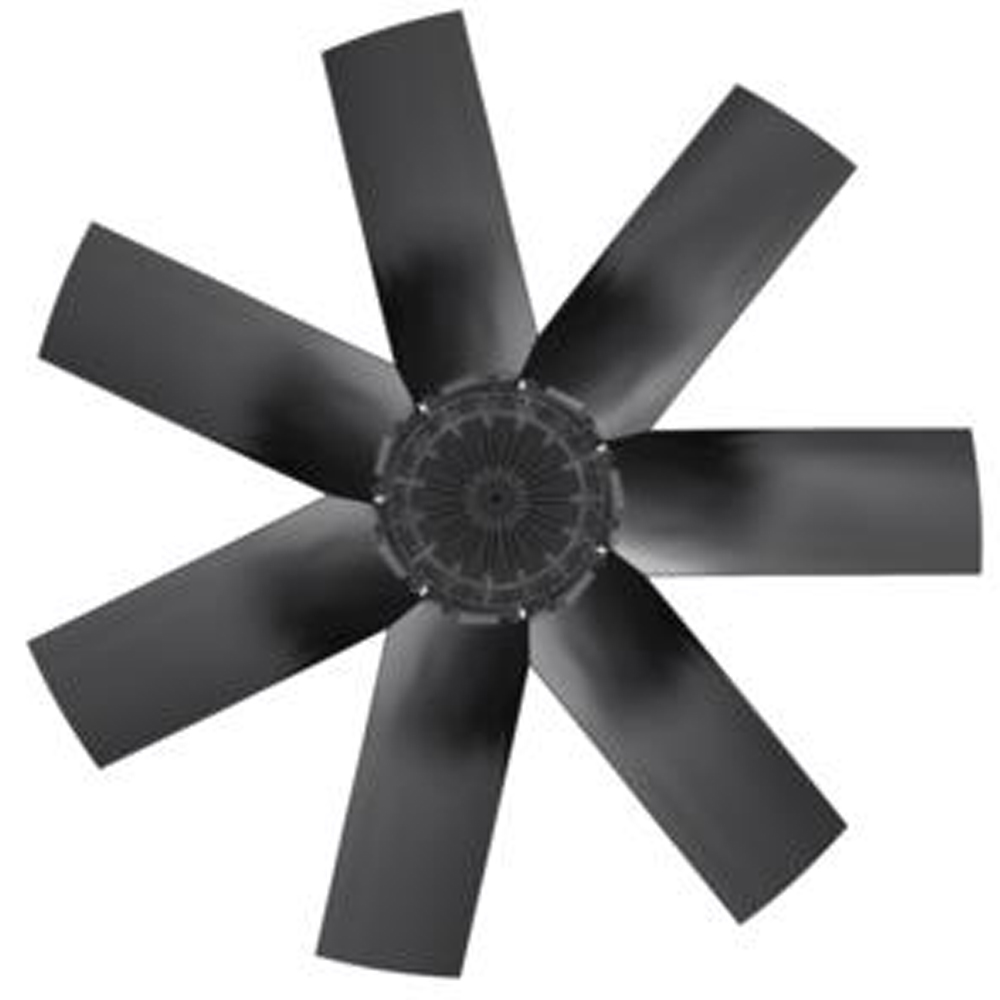

Type: Axial fan
Air output (m³/h): 37000
Speed (RPM): 890
Min. operating temperature: -40°C
IP54 protection
Aluminium rotor and blades
Air output (m³/h): 37000
Speed (RPM): 890
Min. operating temperature: -40°C
IP54 protection
Aluminium rotor and blades
Nominal data
Brand:
ZIEHL-ABEGG
Part No.:
FC091-6DQ.7Q.A7
Fan Type:
Axial Fan
Rated Voltage(V):
400
Size(mm):
910
Max.Air Flow(m³/h):
37000
Max.Pressure(Pa):
400
Input Power(W):
3600
Speed(rpm):
890
Noise(db):
66
Description

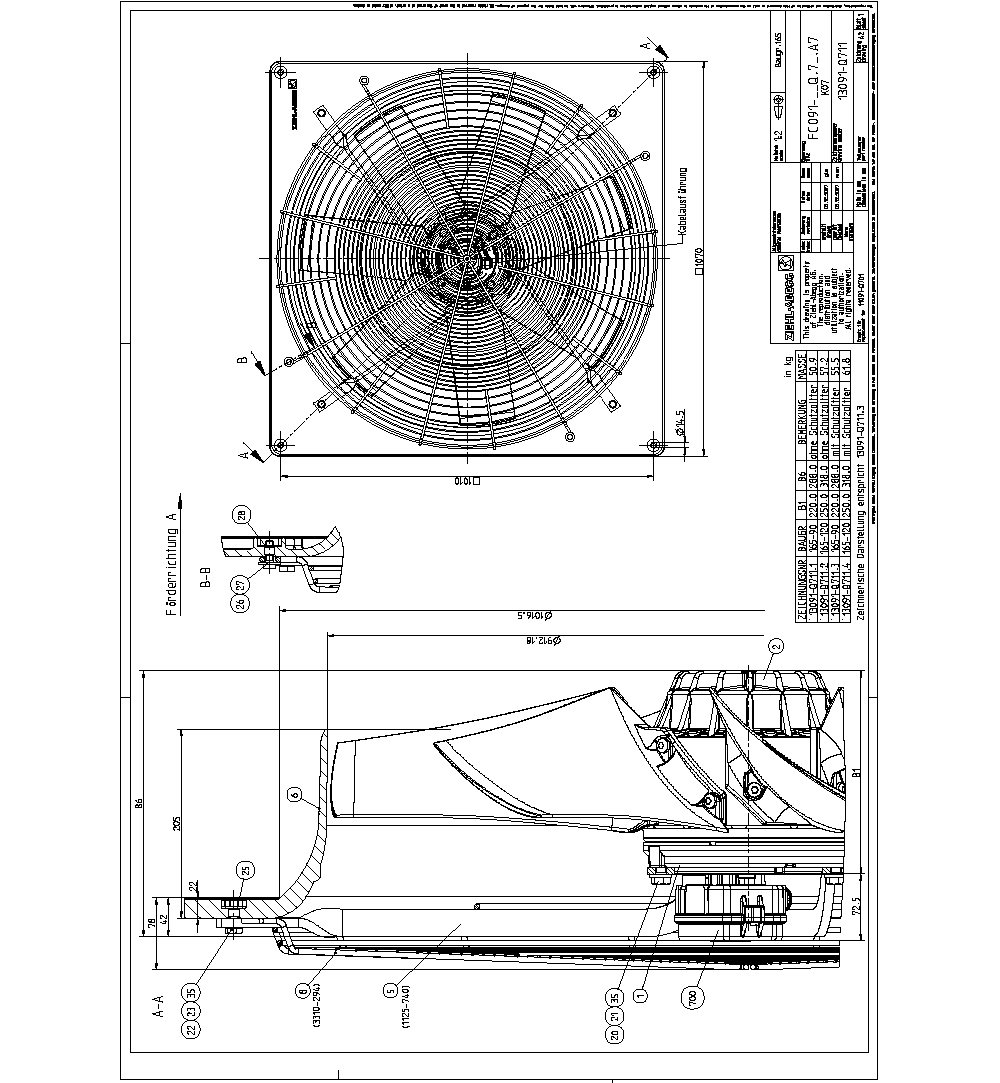

FC091-6DQ.7Q.A7 Ziehl-Abegg Specification Drawing:
