Product
FC080-4DQ.7Q.A4
Brand:
ZIEHL-ABEGG
Category:
Axial Fan
Description:
Type: Axial fan
Not voltage-controllable
Air output (m³/h): 38000
Speed (RPM): 1370
Min. operating temperature: -40°C
IP54 protection
Aluminium rotor and blades
Not voltage-controllable
Air output (m³/h): 38000
Speed (RPM): 1370
Min. operating temperature: -40°C
IP54 protection
Aluminium rotor and blades
Nominal data
Brand:
ZIEHL-ABEGG
Part No.:
FC080-4DQ.7Q.A4
Fan Type:
Axial Fan
Rated Voltage(V):
400
Size(mm):
800
Max.Air Flow(m³/h):
38000
Max.Pressure(Pa):
650
Input Power(W):
5400
Speed(rpm):
1370
Noise(db):
94
Description

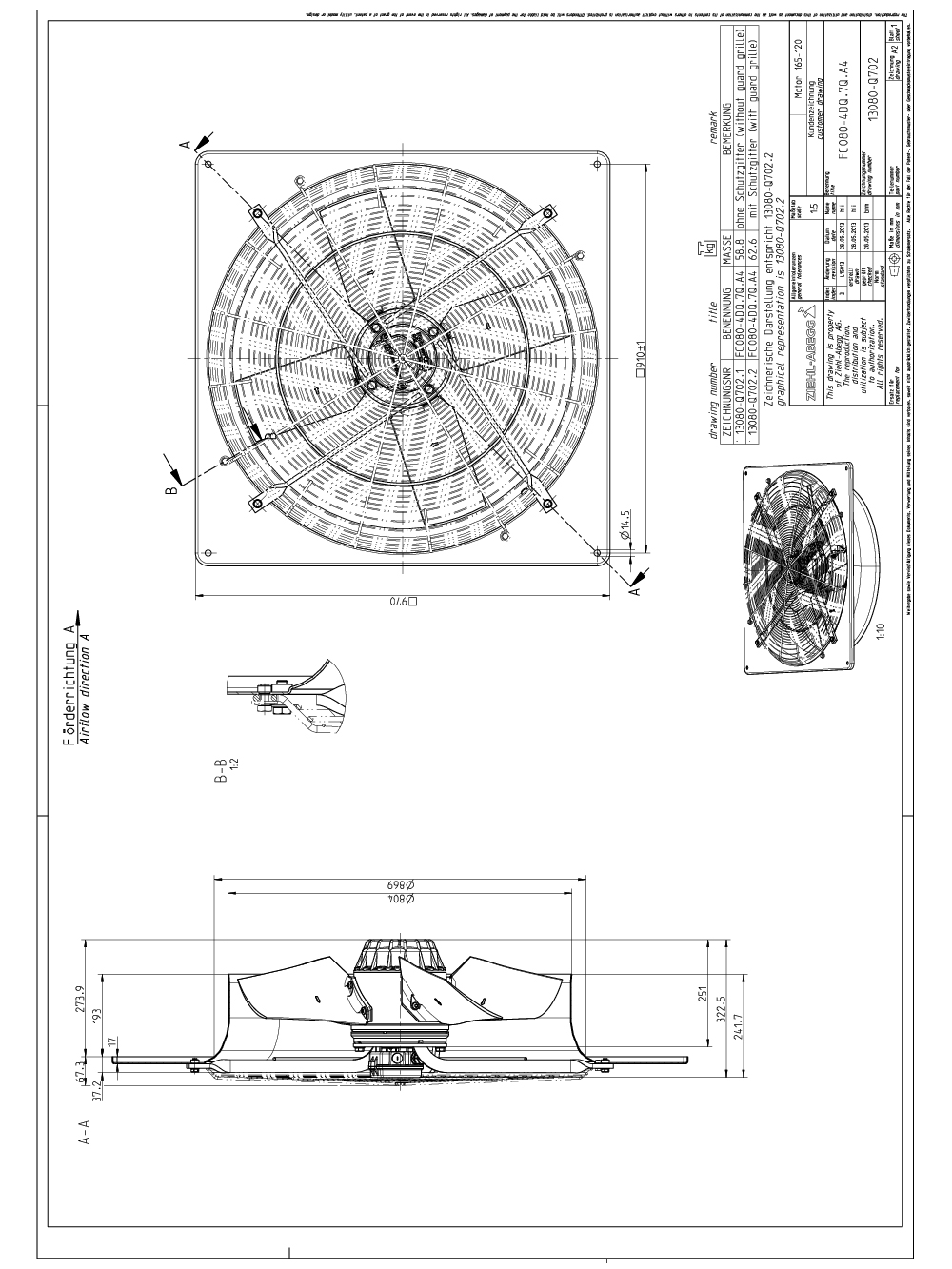

FC080-4DQ.7Q.A4 Ziehl-Abegg Specification Drawing:
