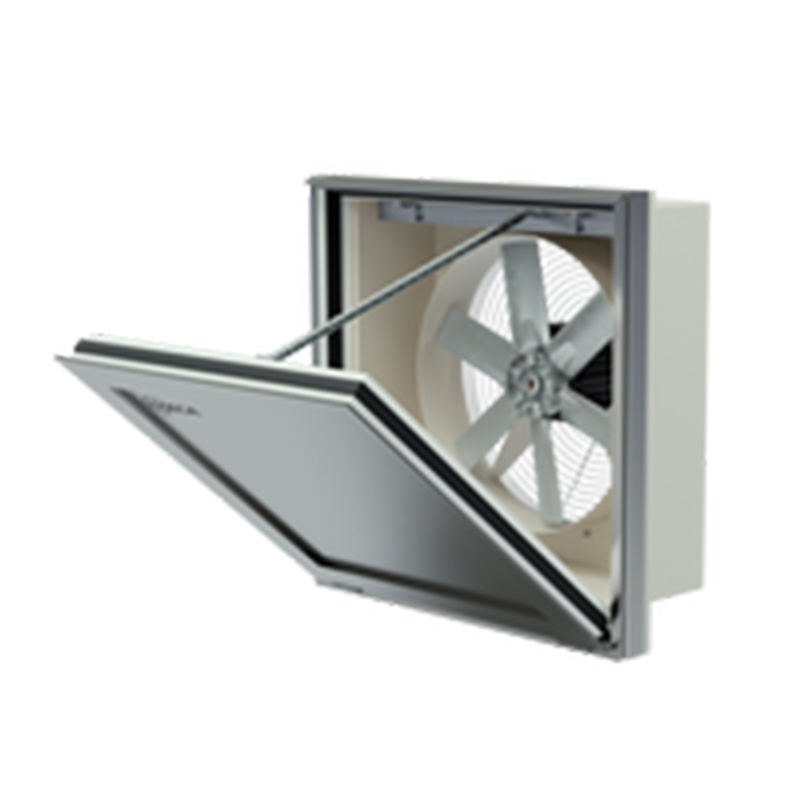

THT/WALL-F Smoke Extract Fans SODECA
Description
Dynamic wall extractor fans with motorised opening system and protective grating for use without extract duct. Specially designed for the fast, effective exhaust of harmful smoke and gases in the event of fire. Suitable for installation in industrial buildings, stores or in any other type of building. Can be used for ambient ventilation.
Fan:
• Wall fixing flange for correct and easy installation.
• Support frame in galvanised sheet steel.
• Approved in accordance with standard EN 12101-3, with certifications no.: 0370-CPR-0305 (F400) and 0370-CPR-0973 (F300).
• Variable angle impeller made of cast aluminium.
• Shielded power cable with EMC protection.
• Airflow direction from motor to impeller.
• Protection grid against contacts according to UNE-EN ISO 12499.
Extruded aluminum hatch:
• An extremely robust structure that is able to withstand severe weather changes.
• Designed to ensure watertightness.
• Aluminum profile with thermal bridge break.
• Central ceiling and structure equipped with high performance thermal insulation.
• Thermal resistance of the assembly less than 0.89 W/m²·K.
• Position indicators in both positions (open and closed).
• Upper and lower opening mounting versions.
• Manual opening system.
• Airborne acoustic insulation value according to UNE-EN ISO 10140-2: Rw = 27 (0;-2) dB.
Motor:
• Class H motors for S1 continuous operation and S2 emergency use. With ball bearings, IP55 protection and 1 or 2 speeds, depending on model.
• IE3 efficiency motors.
• Three-phase 230/400 V 50 Hz (up to 3 kW) and 400/690 V 50 Hz (powers greater than 3 kW).
• Maximum temperature of air to be carried: S1 -25 ºC +40 ºC continuous service, also suitable for warm climates with temperatures up to 50 ºC. S2 operation, 300 ºC/2h, 400 ºC/2h.
Actuator:
• Reliability greater than 20,000 dual cycles.
• Supply voltage at 230 V AC 50/60 Hz.
• Working temperature: -25 ºC +60 ºC.
• Protection at the leading edge when closing the hatch.
• The stop in the closed position is regulated by an electronic limit switch.
Hatch finish:
• Anti-corrosive in extruded aluminum.
• RAL 7016 supplied as standard. Any other RAL can be supplied on demand.
On request:
• Actuator with 24 V DC supply voltage.
