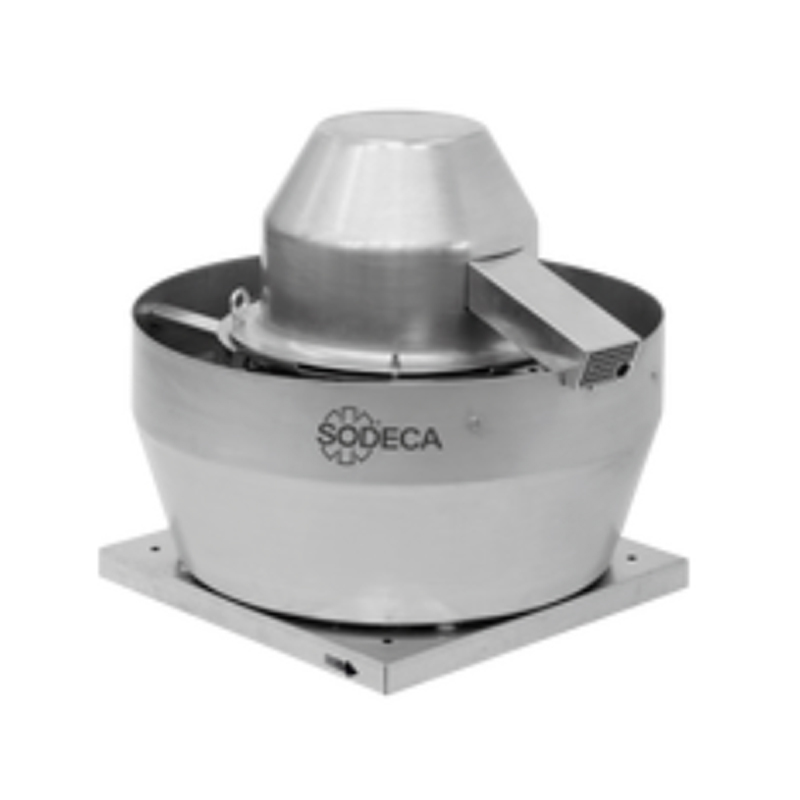

CVT/EC Smoke Extract Fans SODECA
Nominal data
Description
Centrifugal roof fans with vertical air outlet and aluminum hood, equipped with EC Technology IE5 motor with integrated electronics.
Fan:
• Support base in galvanised steel sheet.
• Backward curved impeller made of galvanised sheet steel.
• Bird protection grid.
• Aluminum rain cover.
• Approved in accordance with standard EN 12101-3, with certificate no.: 0370-CPR-7365.
• Maximum temperature of air to be carried: -25 ºC +120 ºC.
Motor:
• High efficiency EC Technology motors with integrated electronics, regulated by 0-10 V or 4-20 mA.
• IE5 efficiency motors, class F and IP55 protection.
• Single-phase 220-277 V 50/60 Hz and three-phase 380-480 V 50/60 Hz.
• Working temperature: -25 ºC +60 ºC.
• Built-in control with fire mode function.
EC CONTROL:
Supplied as an optional accessory. Control panel for ventilation systems with EC Technology motors with the electronics integrated in the motor itself. With the following characteristics:
• CPC: Constant pressure control.
• CFC: Constant flow control.
• DAY/NIGHT: Double pressure setpoint adjustment according to time of day.
• External sensor: Compatible with temperature, humidity, air quality or CO sensor.
• Equipment preconfigured in constant pressure mode with 100 Pa set point.
Finish:
• Galvanised steel sheet and aluminum.
