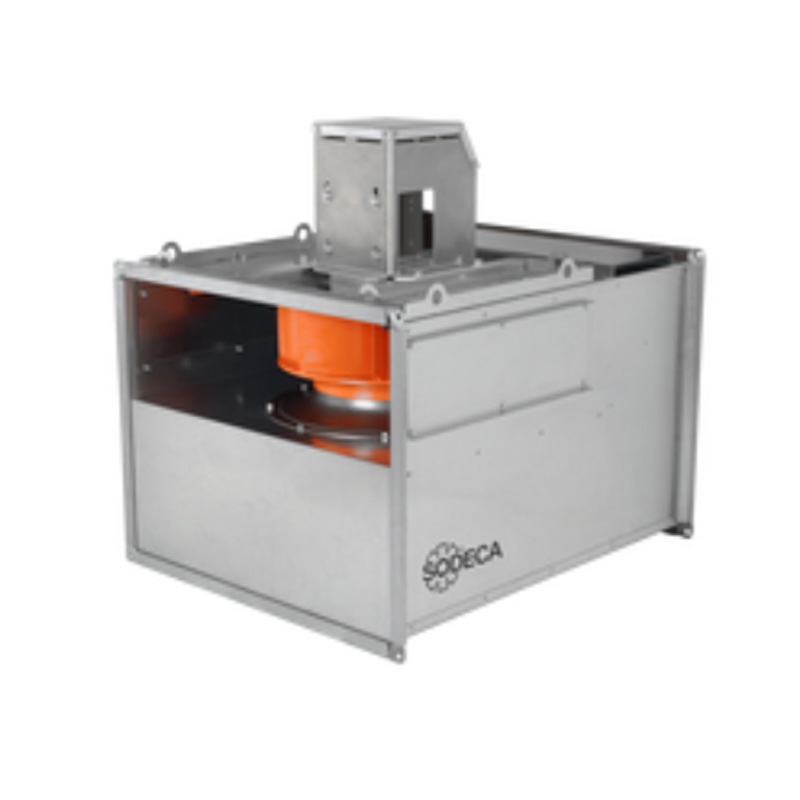

CJLINE/EC Smoke Extract Fans SODECA
Nominal data
Description
Air extraction units with linear inlet and outlet, equipped with EC Technology IE5 motor with integrated electronics.
Fan:
• Galvanised sheet steel structure.
• Backward curved impeller made of sheet steel.
• Linear airflow direction.
Motor:
• High efficiency EC Technology motors with integrated electronics, regulated by 0-10 V or 4-20 mA.
• IE5 efficiency motors, class F and IP55 protection.
• Single-phase 220-277 V 50/60 Hz.
• Working temperature: -25 ºC +60 ºC.
EC CONTROL:
Supplied as an optional accessory. Control panel for ventilation systems with EC Technology motors with the electronics integrated in the motor itself. With the following characteristics:
• CPC: Constant pressure control.
• CFC: Constant flow control.
• DAY/NIGHT: Double pressure setpoint adjustment according to time of day.
• External sensor: Compatible with temperature, humidity, air quality or CO sensor.
• Equipment preconfigured in constant pressure mode with 100 Pa set point.
Finish:
• Galvanised steel sheet.
