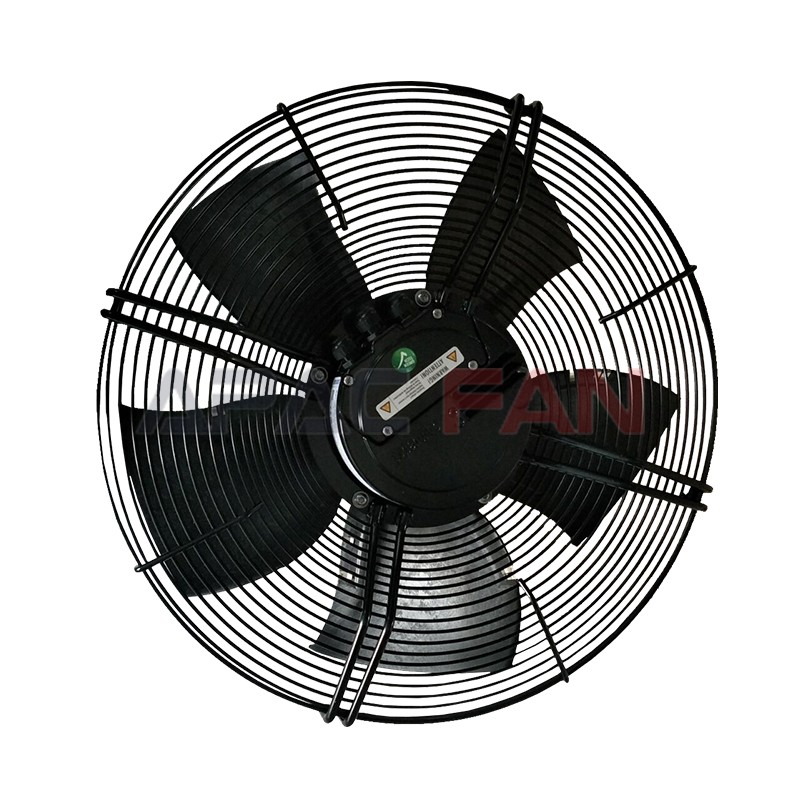

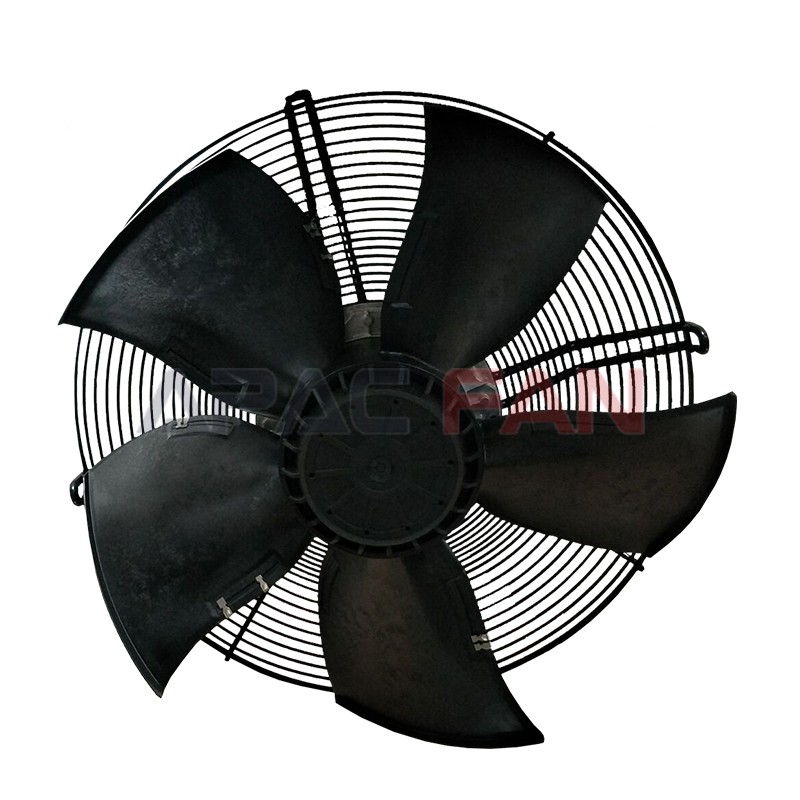

S3G500-BE33-01 Ebm-papst Axial Fan
Brand：
ebmpapst
Category：
Axial Fan
Description：
Brand：ebmpapst
Part No：S3G500-BE33-01
Fan Type：Axial Fan
Rated Voltage(V)：400
Size(mm)：500
Max.Air Flow(m³/h)：10630
Max.Pressure(Pa)：180
Input Power(W)：1050
Speed(RPM)：1440
Noise(dB)：75
Part No：S3G500-BE33-01
Fan Type：Axial Fan
Rated Voltage(V)：400
Size(mm)：500
Max.Air Flow(m³/h)：10630
Max.Pressure(Pa)：180
Input Power(W)：1050
Speed(RPM)：1440
Noise(dB)：75
Nominal data
Brand：
ebmpapst
Part No.：
S3G500-BE33-01
Fan Type：
Axial Fan
Rated Voltage(V)：
400
Size(mm)：
500
Max.Air Flow(m³/h)：
10630
Max.Pressure(Pa)：
180
Input Power(W)：
1050
Speed(rpm)：
1440
Noise(db)：
75
Description

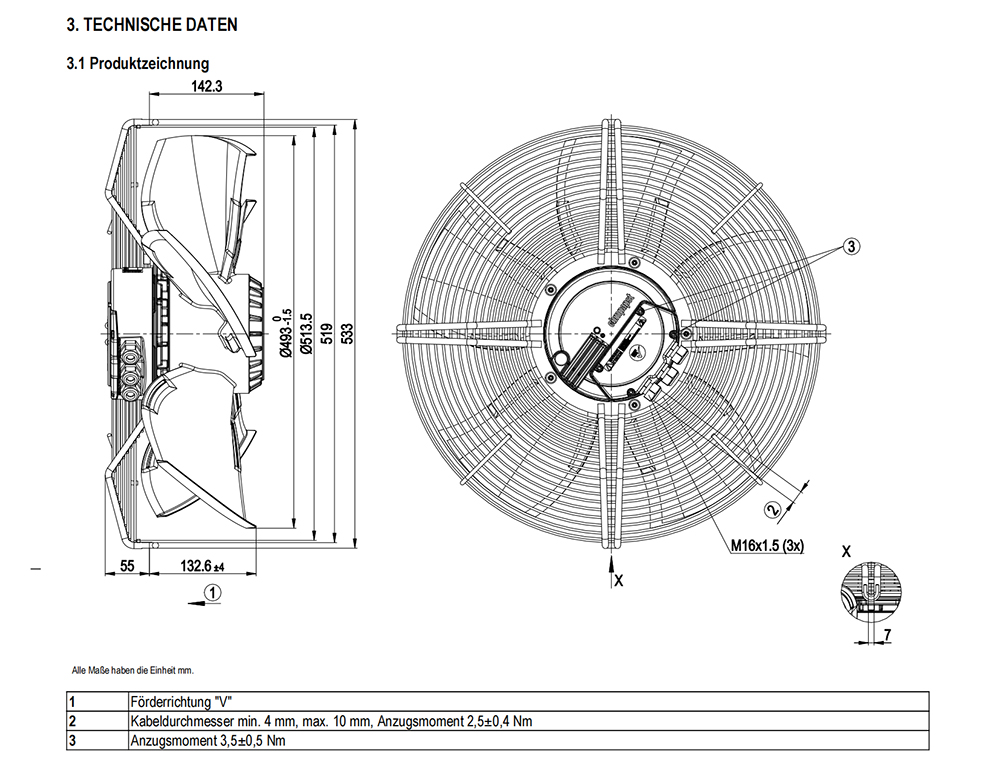

S3G500-BE33-01 Ebm-papst Specification drawing：
