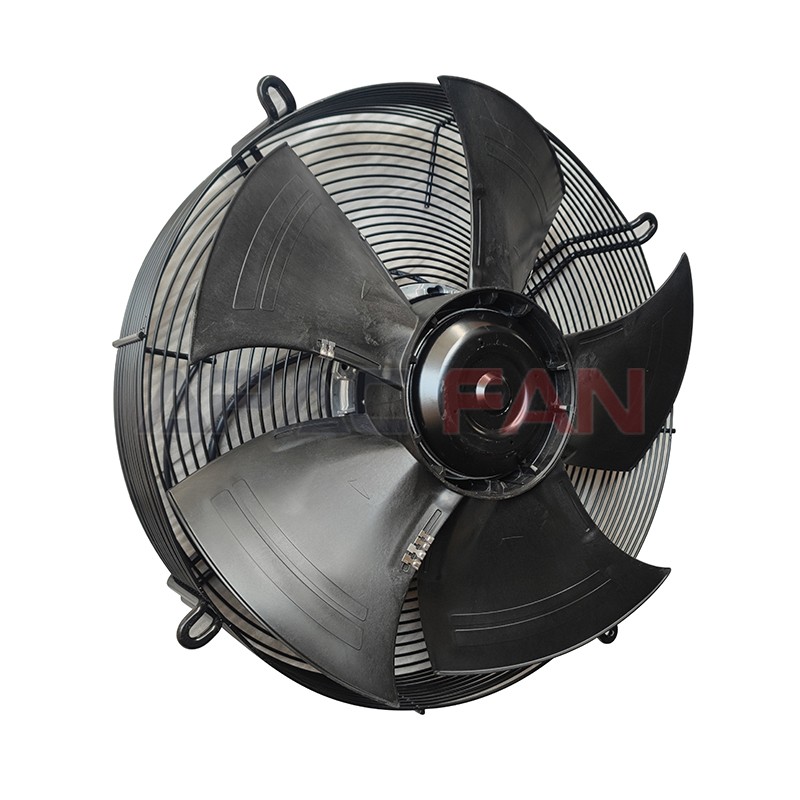

S3G450-LL03-H1
Brand：
ebmpapst
Document：
Category：
Axial Fan
Description：
Brand：ebmpapst
Part No：S3G450-LL03-H1
Fan Type：Axial Fan
Rated Voltage(V)：230
Size(mm)：450
Max.Air Flow(m³/h)：7355
Max.Pressure(Pa)：150
Input Power(W)：500
Speed(RPM)：1500
Noise(dB)：64
Part No：S3G450-LL03-H1
Fan Type：Axial Fan
Rated Voltage(V)：230
Size(mm)：450
Max.Air Flow(m³/h)：7355
Max.Pressure(Pa)：150
Input Power(W)：500
Speed(RPM)：1500
Noise(dB)：64
Nominal data
Brand：
ebmpapst
Part No.：
S3G450-LL03-H1
Fan Type：
Axial Fan
Rated Voltage(V)：
230
Size(mm)：
450
Max.Air Flow(m³/h)：
7355
Max.Pressure(Pa)：
150
Input Power(W)：
500
Speed(rpm)：
1500
Noise(db)：
64
Description

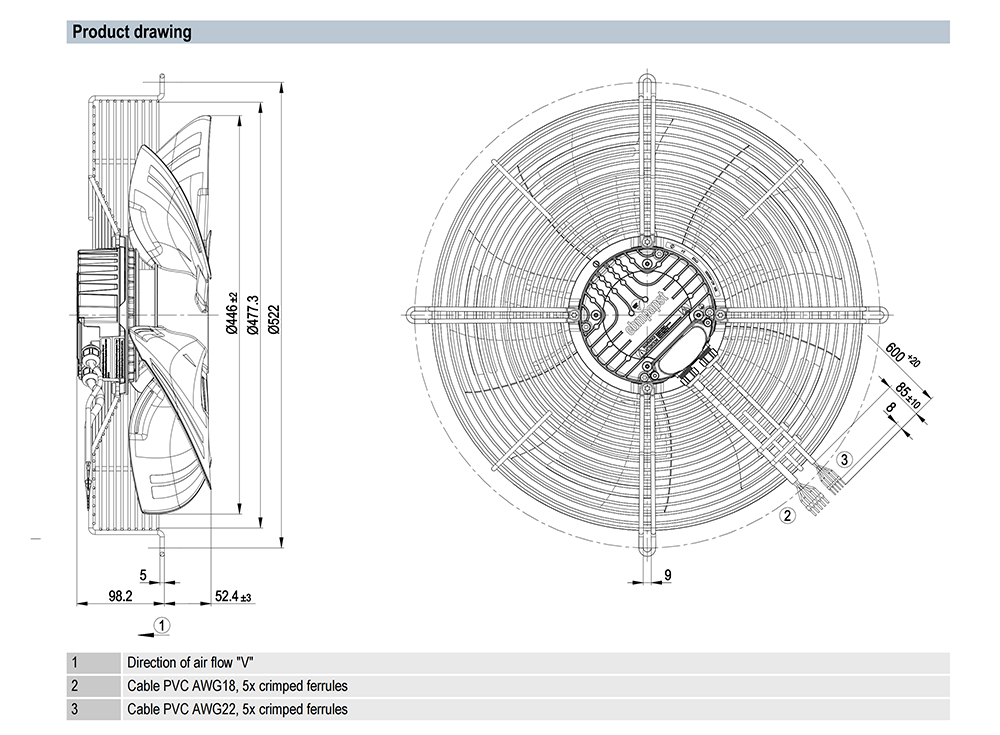

S3G450-LL03-H1 Ebm-papst Specification drawing：
