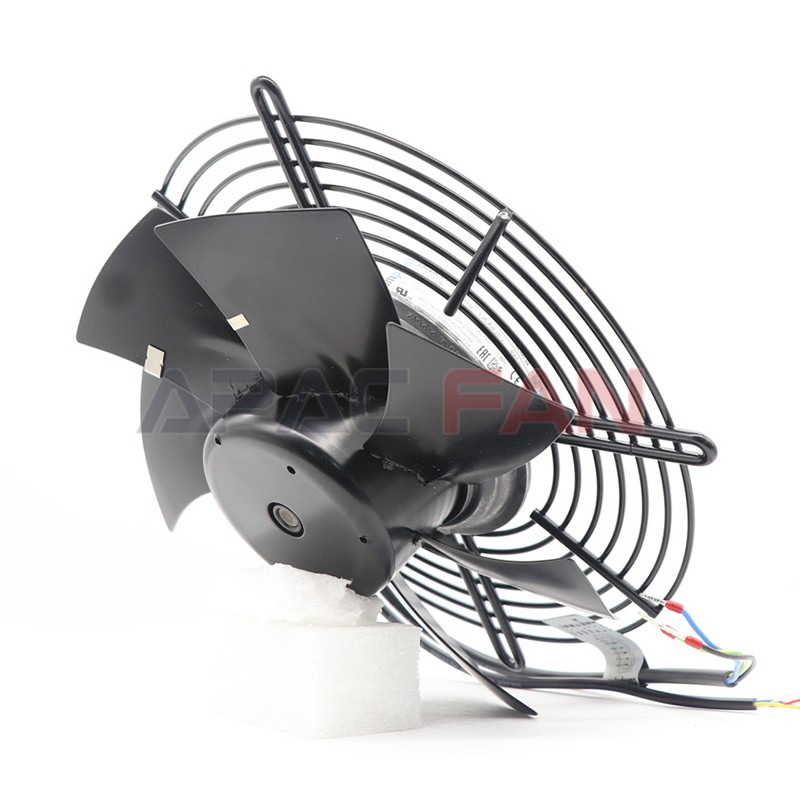

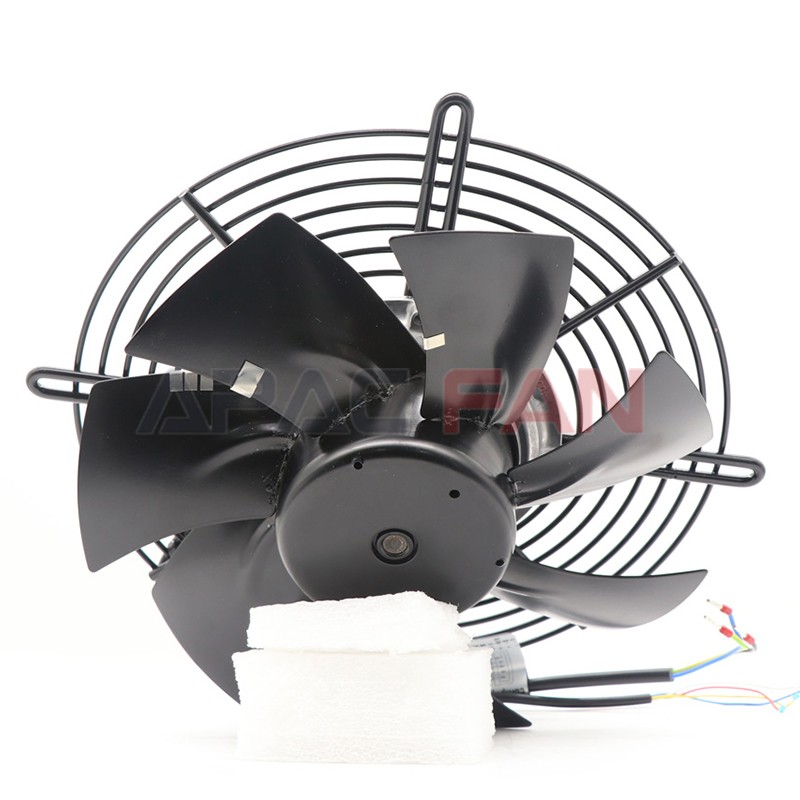

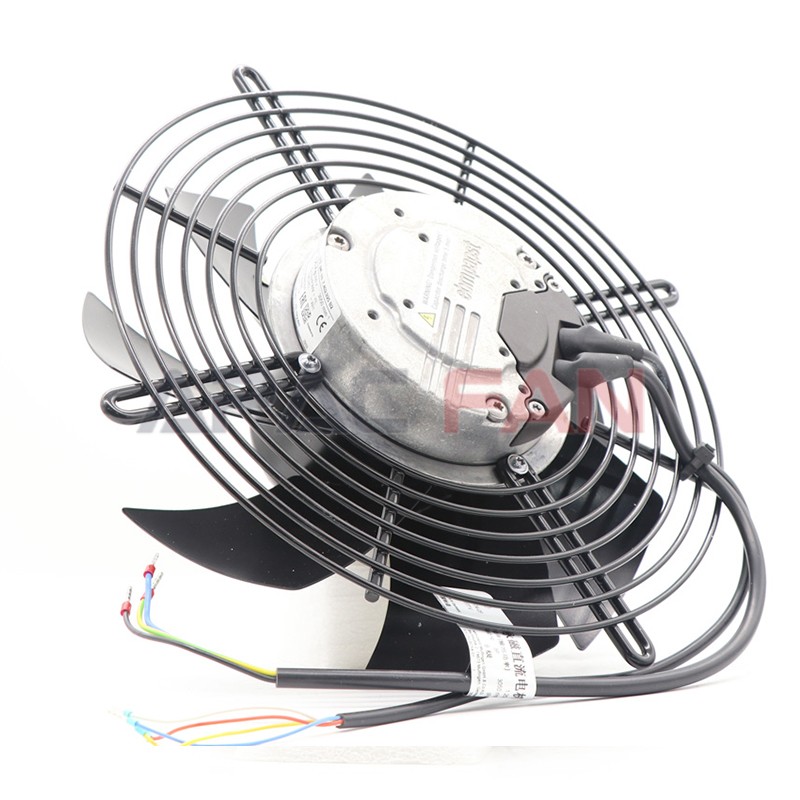

S3G250-BC54-01 Ebm-papst Axial Fan 230V
Brand：
ebmpapst
Document：
Category：
Axial Fan
Description：
Brand：ebmpapst
Part No：S3G250-BC54-01
Fan Type：Axial Fan
Rated Voltage(V)：230
Size(mm)：250
Max.Air Flow(m³/h)：2215
Max.Pressure(Pa)：200
Input Power(W)：170
Speed(RPM)：3050
Noise(dB)：72
Part No：S3G250-BC54-01
Fan Type：Axial Fan
Rated Voltage(V)：230
Size(mm)：250
Max.Air Flow(m³/h)：2215
Max.Pressure(Pa)：200
Input Power(W)：170
Speed(RPM)：3050
Noise(dB)：72
Nominal data
Brand：
ebmpapst
Part No.：
S3G250-BC54-01
Fan Type：
Axial Fan
Rated Voltage(V)：
230
Size(mm)：
250
Max.Air Flow(m³/h)：
2215
Max.Pressure(Pa)：
200
Input Power(W)：
170
Speed(rpm)：
3050
Noise(db)：
72
Description

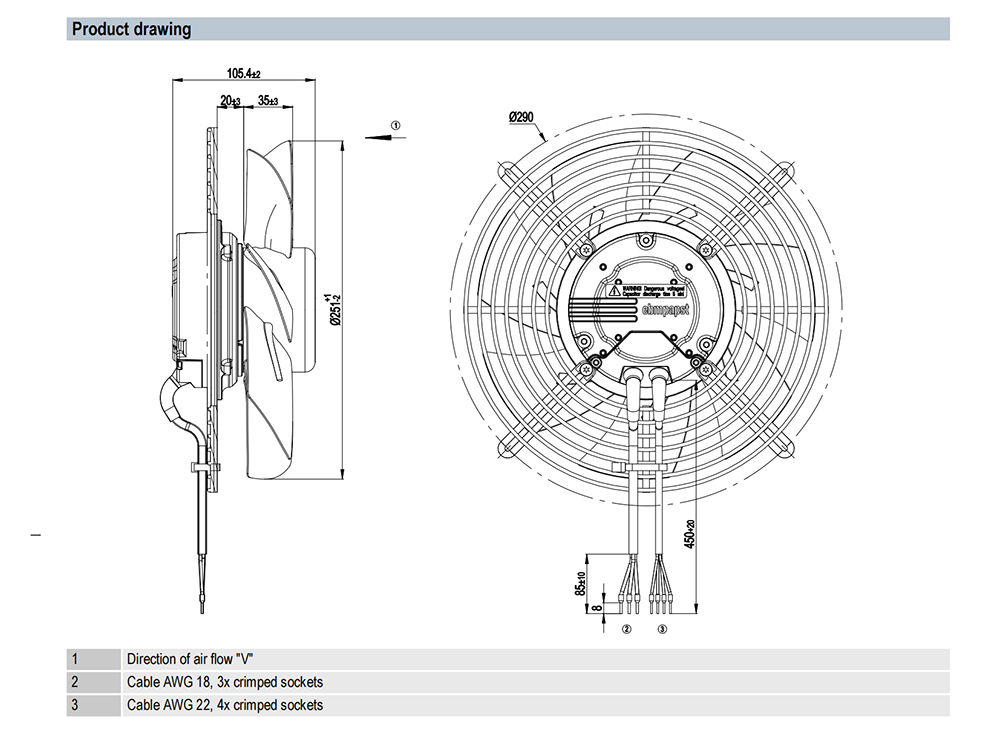

S3G250-BC54-01 Ebm-papst Specification drawing：
