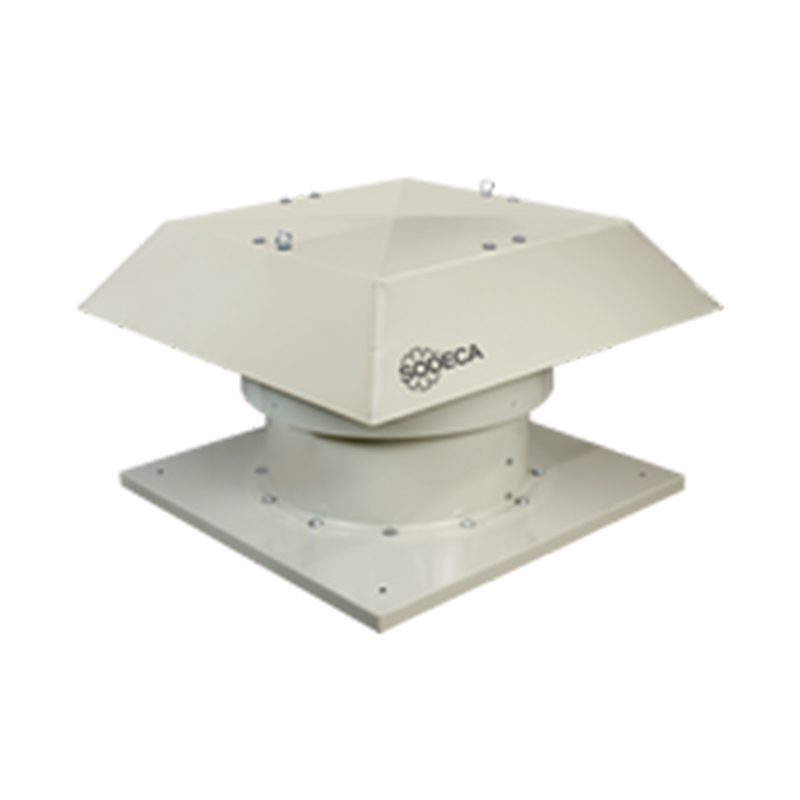

HTMF/IE5 Smoke Extract Fans SODECA
Nominal data
Description
Multifunctional roof extractors 400 ºC/2h with ultra-high efficiency IE5 motor, suitable for operation in fire-risk zones, designed for smoke evacuation in industrial buildings or similar facilities.
Fan:
• Support base in painted galvanised steel sheet.
• Adjustable cast aluminum impeller.
• Protection grid against contacts according to UNE-EN ISO 12499.
• Cap in painted galvanised steel sheet, with natural air outlet.
• Certified according to EN 12101-3, F400 classification.
Motor:
• Class H motors for continuous use (S1) and emergency use (S2). With ball bearings, IP55 protection, and single speed.
• IE5 efficiency motors.
• Three-phase 230/400 V 50 Hz (up to 3 kW) and 400/690 V 50 Hz (powers greater than 3 kW).
• Maximum air temperature: Service S1 -25 ºC to +40 ºC continuously, also suitable for hot climates up to 50 ºC. Service S2 400 ºC/2h.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
