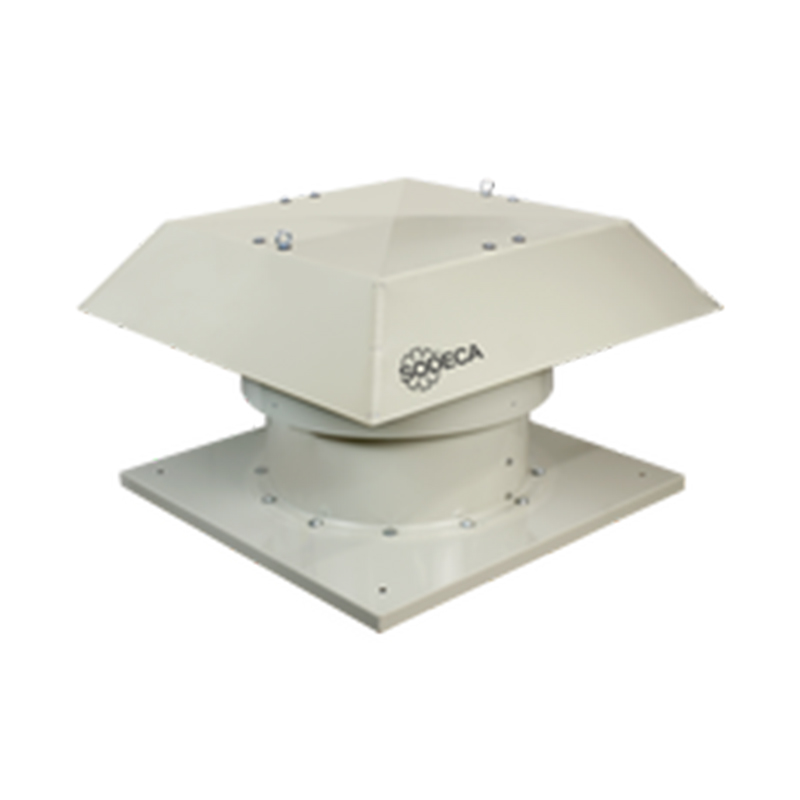

HTMF Smoke Extract Fans SODECA
Description
400 ºC/2h and 300 ºC/2h rated roof mounted multifunctional extract fans for work in fire risk zones, designed for smoke extraction in industrial or similar buildings.
Fan:
• Support base in painted galvanised steel sheet.
• Adjustable cast aluminum impeller.
• Protection grid against contacts according to UNE-EN ISO 12499.
• Cap in painted galvanised steel sheet, with natural air outlet. Approval according to EN 12101-3, with certifications No. 0370-CPR-0305 (F400) and 0370-CPR-0973 (F300).
Motor:
• Class H motors for S1 continuous operation and S2 emergency use. With ball bearings, IP55 protection and 1 or 2 speeds, depending on model.
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Three-phase 230/400 V 50 Hz (up to 3 kW) and 400/690 V 50 Hz (powers greater than 3 kW).
• Maximum temperature of air to be carried: S1 -25 ºC +40 ºC continuous service, also suitable for warm climates with temperatures up to 50 ºC. S2 operation, 300 ºC/2h, 400 ºC/2h.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
