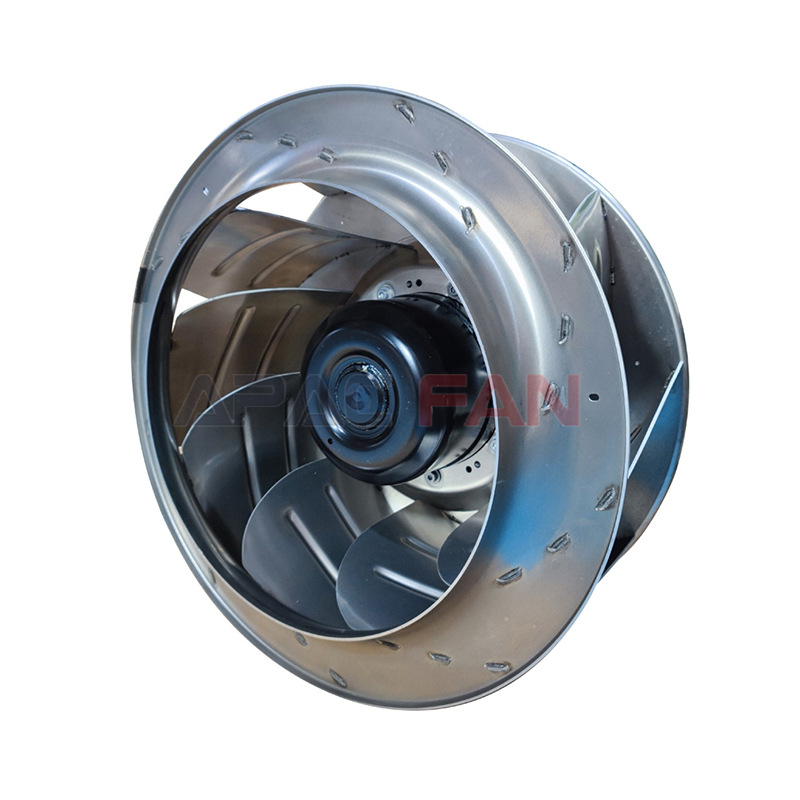

R3G560-PB31-03 ebm-papst EC Centrifugal Fan
High Reliability & Long Service Life
Compact Design & Easy Integration
High Energy Efficiency & Environmental

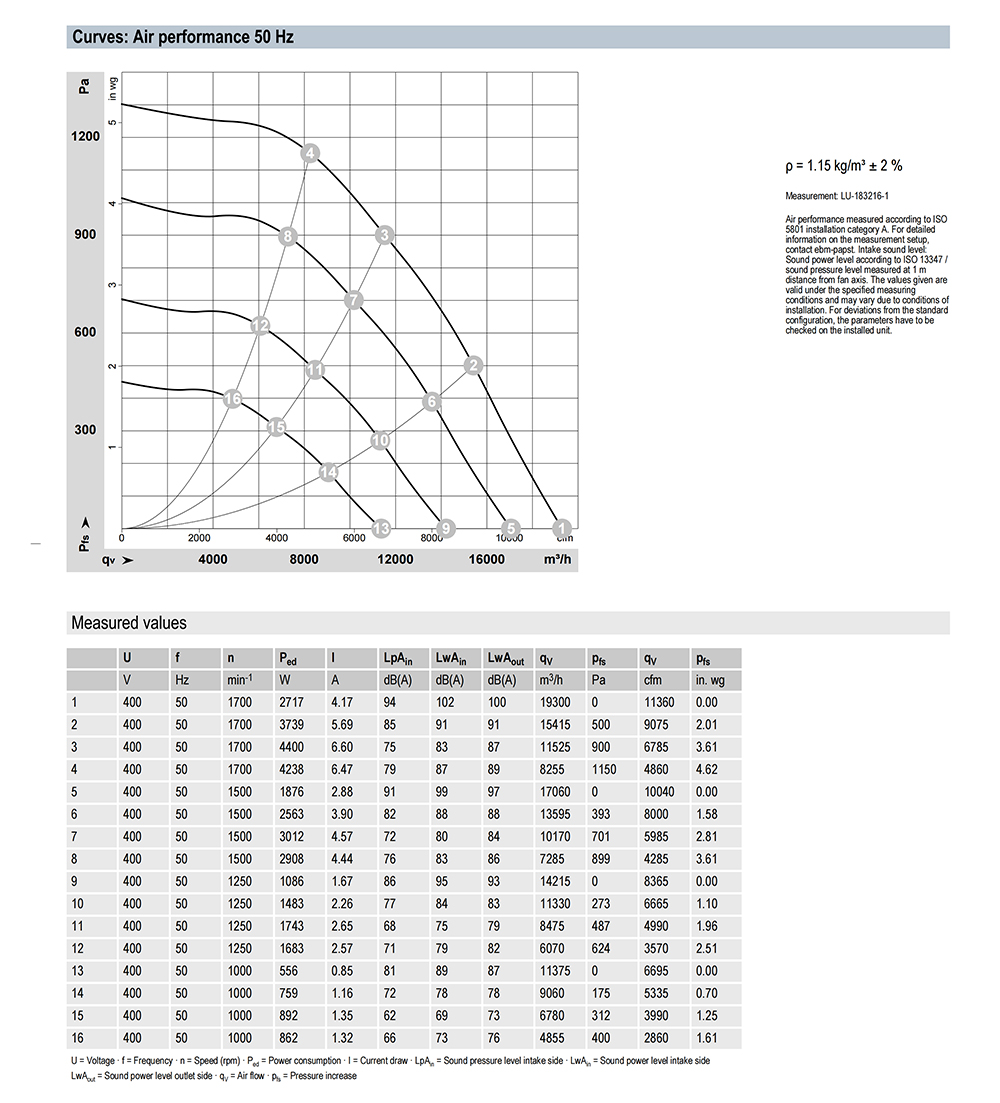

Nominal data
Description

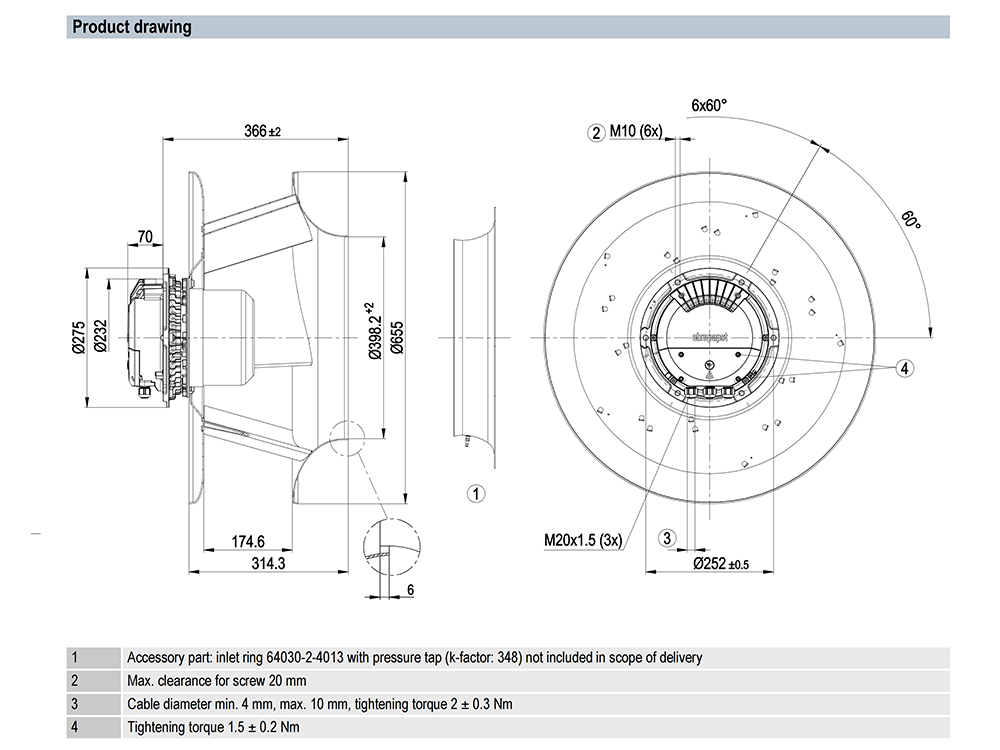

R3G560-PB31-03 Ebm-papst Specification drawing：
Applications
R3G560-PB31-03 can be considered for AHUs, industrial ventilation, large equipment cooling and systems where filters, coils or ductwork create resistance to airflow.
Selection and Replacement
Select against the actual operating point. For replacement, confirm the complete R3G560-PB31-03 model, 400 V supply, dimensions, performance, mounting and electrical/control connection.
FAQ
Q1. What is the R3G560-PB31-03?
A1. The R3G560-PB31-03 is a ebm-papst ec centrifugal fan. Use the complete model number when requesting a quotation or checking a replacement.
Q2. What should I check before ordering the R3G560-PB31-03?
A2. Check the complete part number, rated voltage, dimensions, airflow and pressure requirements, input power, speed, mounting arrangement and electrical connection against your equipment requirements.
Q3. Can a similar model replace the R3G560-PB31-03?
A3. A similar base model should not automatically be treated as interchangeable. Confirm the full suffix and the technical data of the existing fan before substitution.
Request Product Information
Looking for the ebm-papst R3G560-PB31-03? Send the complete model number, quantity and application requirements to APAC FAN for product and availability information.
