Product
R3G560-8317081579
Brand:
ebmpapst
Document:
Category:
Centrifugal Fan
Description:
Type: EC Centrifugal Fan
Air output (m³/h):18535
Speed (RPM): 1900
Min. Ambient Temperature: -40 °C
Material: Die-cast Aluminum Housing and Plastic Impeller
Air output (m³/h):18535
Speed (RPM): 1900
Min. Ambient Temperature: -40 °C
Material: Die-cast Aluminum Housing and Plastic Impeller
Nominal data
Brand:
ebmpapst
Part No.:
R3G560-8317081579
Fan Type:
Centrifugal Fan
Rated Voltage(V):
400
Size(mm):
560
Max.Air Flow(m³/h):
18535
Max.Pressure(Pa):
1050
Input Power(W):
3950
Speed(rpm):
1900
Noise(db):
90
Description

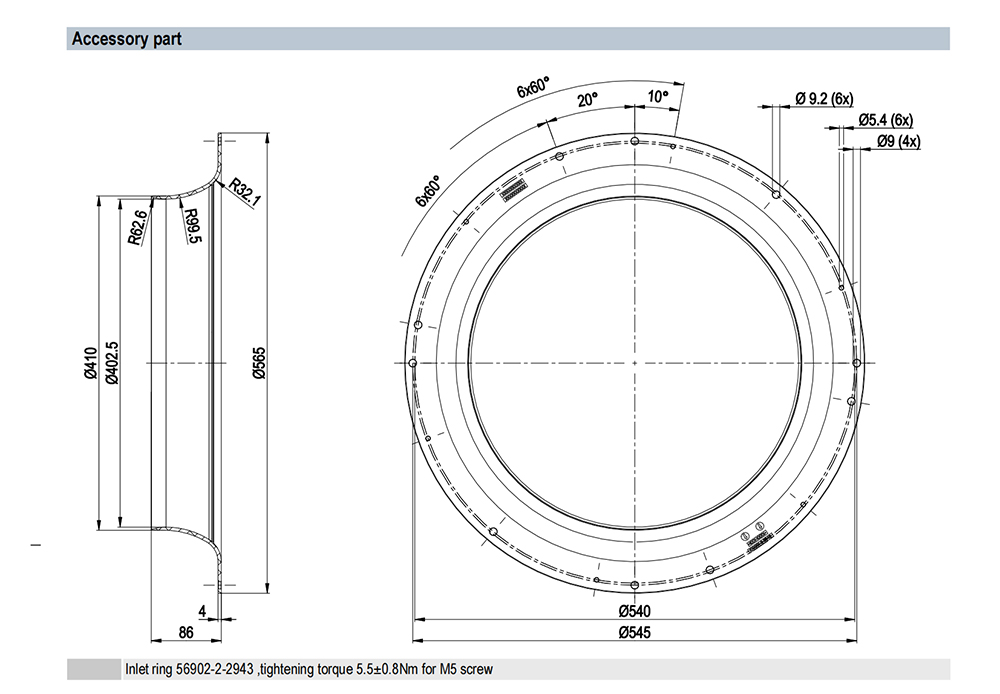

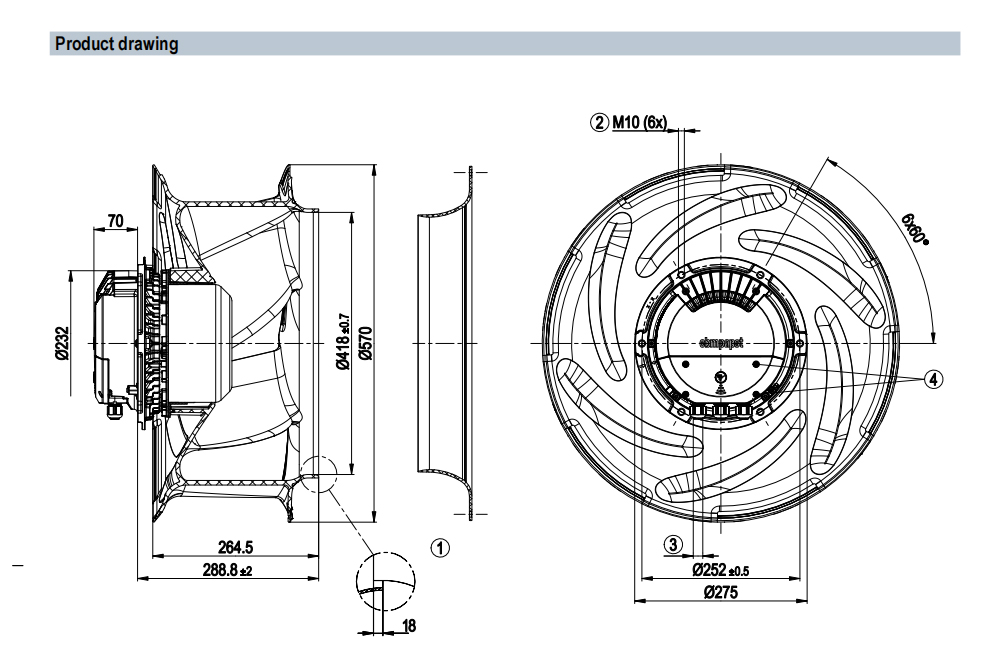

R3G560-8317081579 ebmpapst Specification Drawing:
