R3G310-RR05-H1 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：R3G310-RR05-H1
Fan Type：Centrifugal Fan
Rated Voltage(V)：230
Size(mm)：310
Max.Air Flow(m³/h)：3680
Max.Pressure(Pa)：700
Input Power(W)：500
Speed(RPM)：2360
Noise(dB)：65

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

R3G310-RR05-H1

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

230

Size(mm)：

310

Max.Air Flow(m³/h)：

3680

Max.Pressure(Pa)：

700

Input Power(W)：

500

Speed(rpm)：

2360

Noise(db)：

65

Description

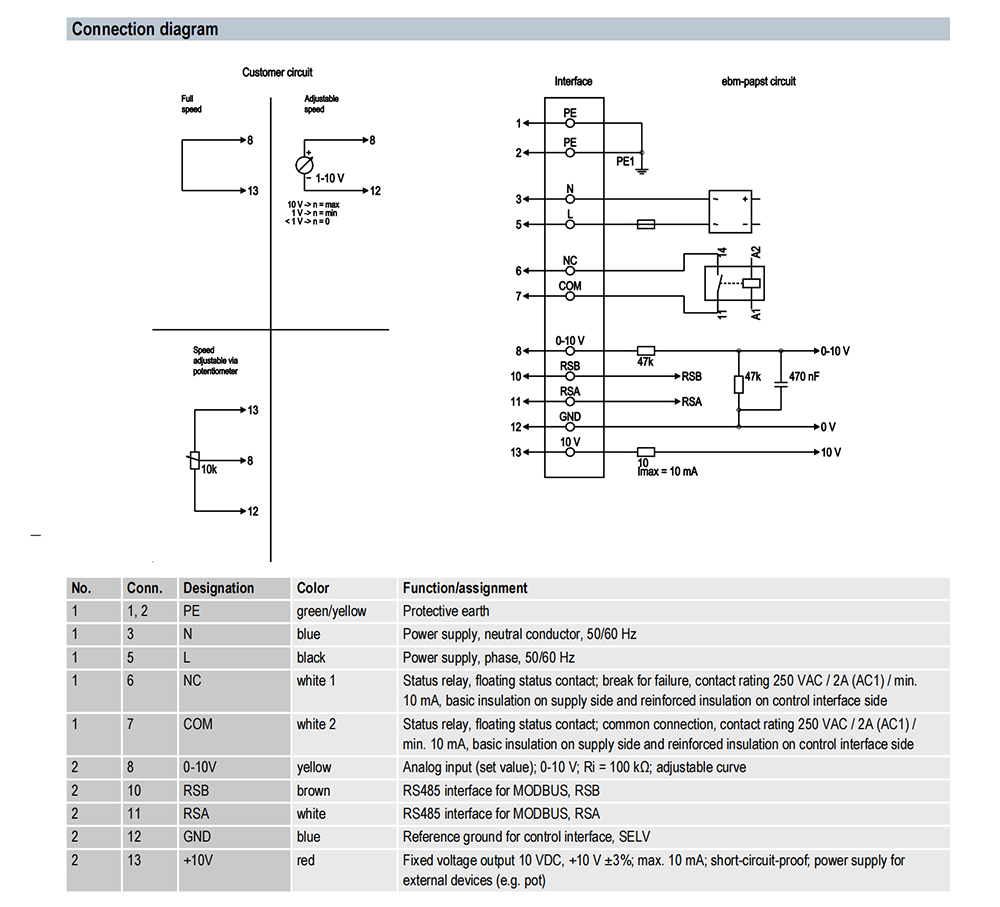

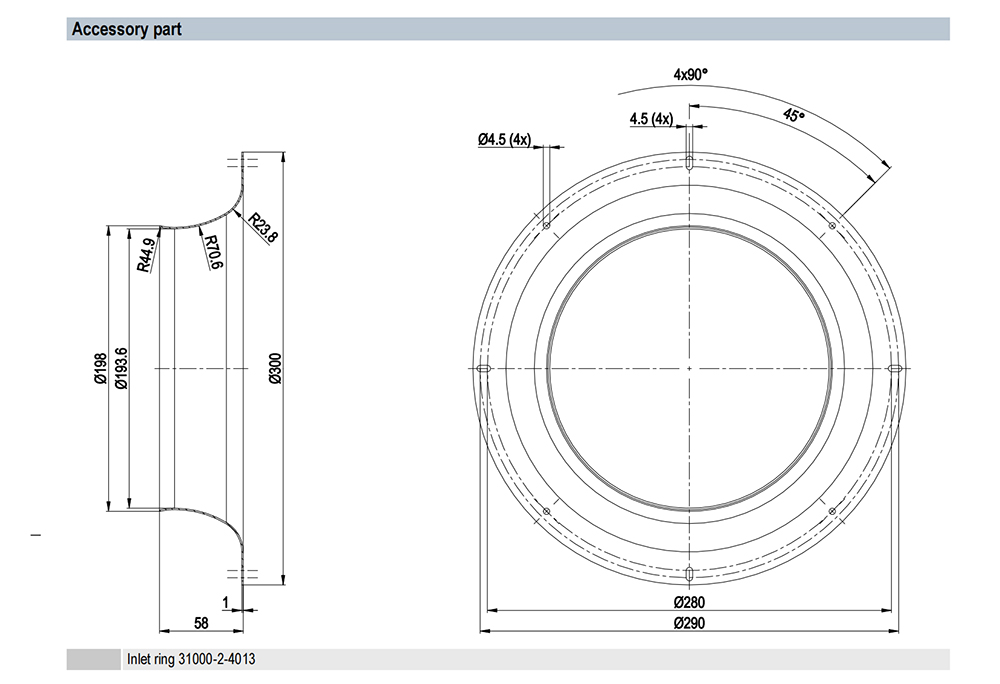

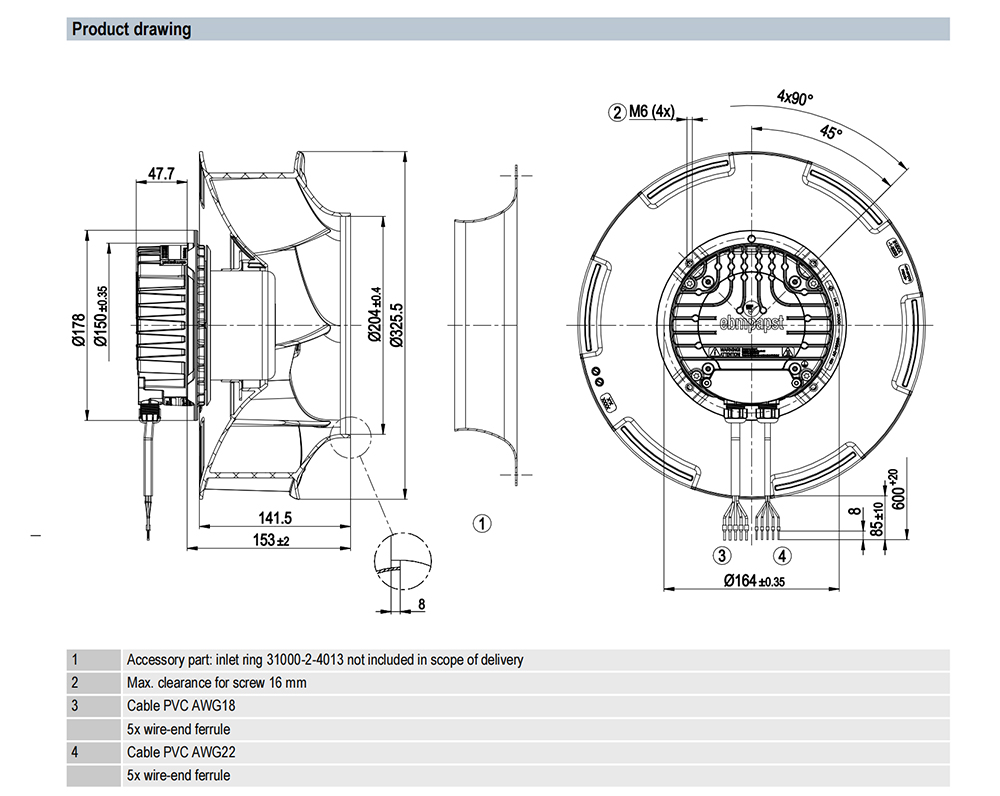

R3G310-RR05-H1 Ebm-papst Specification drawing：
