Product
R2E225-AT52-19
Brand:
ebmpapst
Document:
Category:
Centrifugal Fan
Description:
Type: AC Centrifugal Fan
Min. Ambient Temperature: -25°C
Impeller Material: Plastic PA6, fibreglass-reinforced
Min. Ambient Temperature: -25°C
Impeller Material: Plastic PA6, fibreglass-reinforced
Nominal data
Brand:
ebmpapst
Part No.:
R2E225-AT52-19
Fan Type:
Centrifugal Fan
Rated Voltage(V):
230
Size(mm):
225
Max.Air Flow(m³/h):
905
Max.Pressure(Pa):
400
Input Power(W):
190
Speed(rpm):
3150
Noise(db):
70
Description

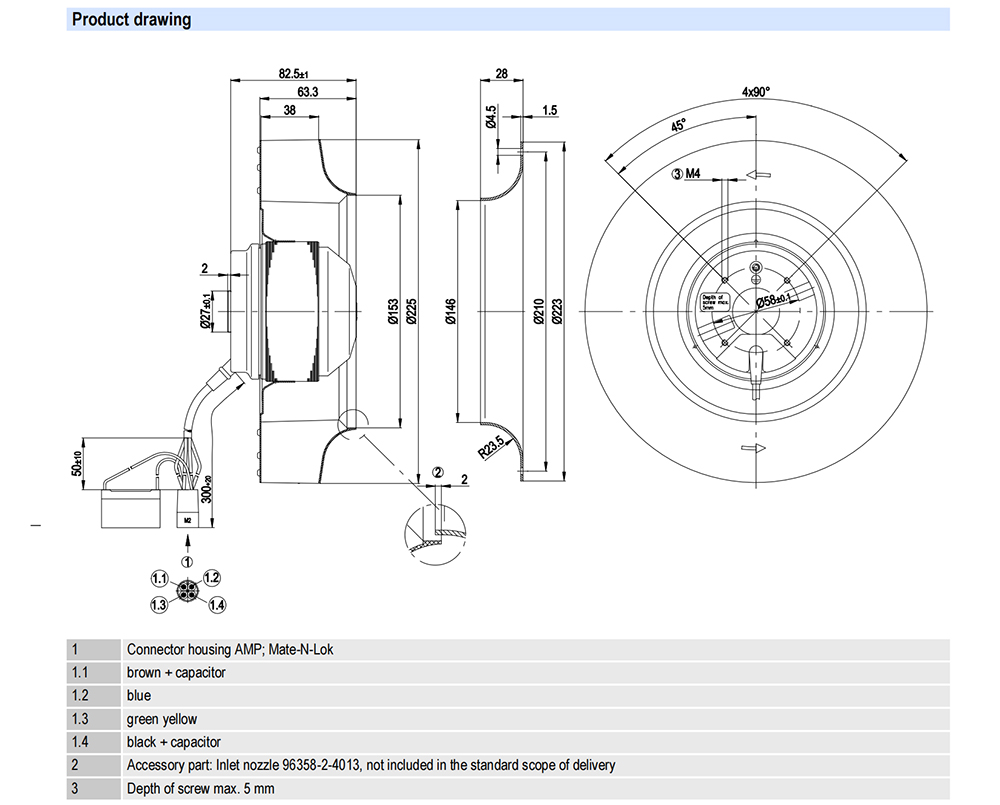

R2E225-AT52-19 ebmpapst Specification drawing:
