Product
K3G560-PC04-01
Brand:
ebmpapst
Document:
Category:
Centrifugal Fan
Description:
Type: EC Centrifugal Fan
Air output (m³/h): 21265
Speed (RPM): 1760
Min. Ambient Temperature: -25 °C
Material: Aluminium Housing and Impeller
Air output (m³/h): 21265
Speed (RPM): 1760
Min. Ambient Temperature: -25 °C
Material: Aluminium Housing and Impeller
Nominal data
Brand:
ebmpapst
Part No.:
K3G560-PC04-01
Fan Type:
Centrifugal Fan
Rated Voltage(V):
400
Size(mm):
560
Max.Air Flow(m³/h):
21265
Max.Pressure(Pa):
1035
Input Power(W):
5000
Speed(rpm):
1760
Noise(db):
75
Description

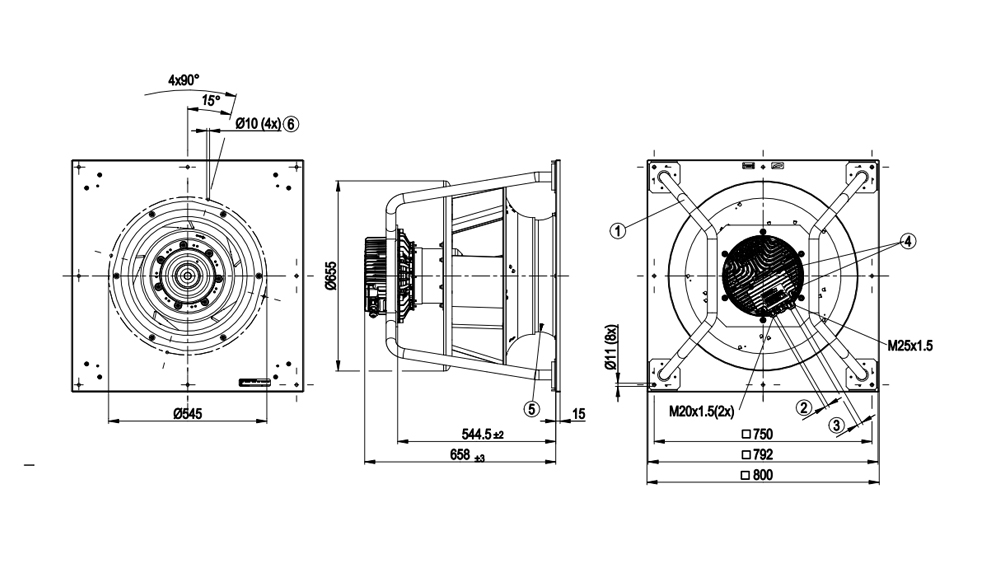

K3G560-PC04-01 ebmpapst Specification Drawing:
