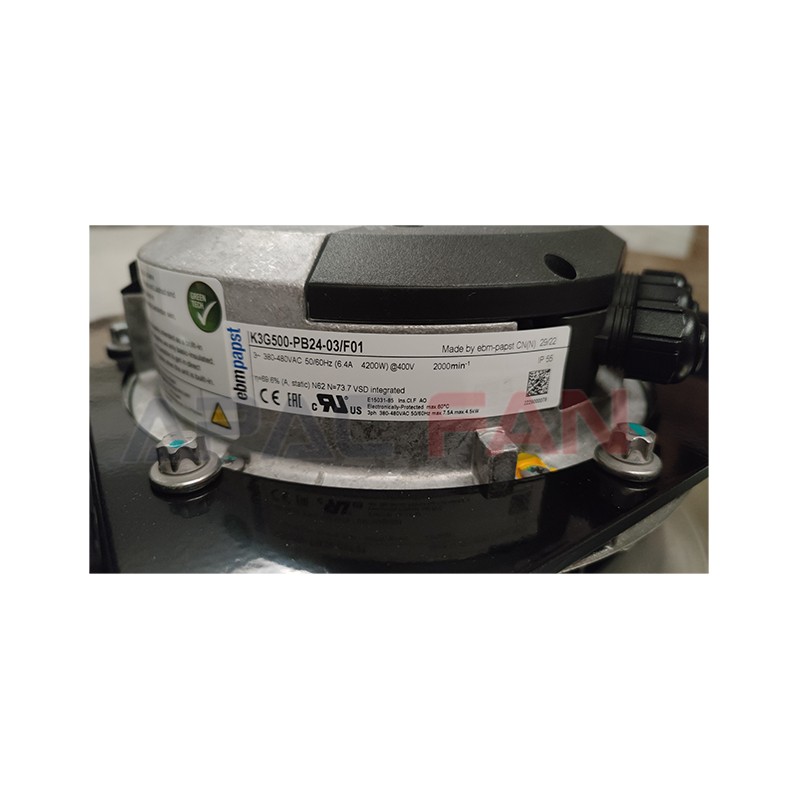

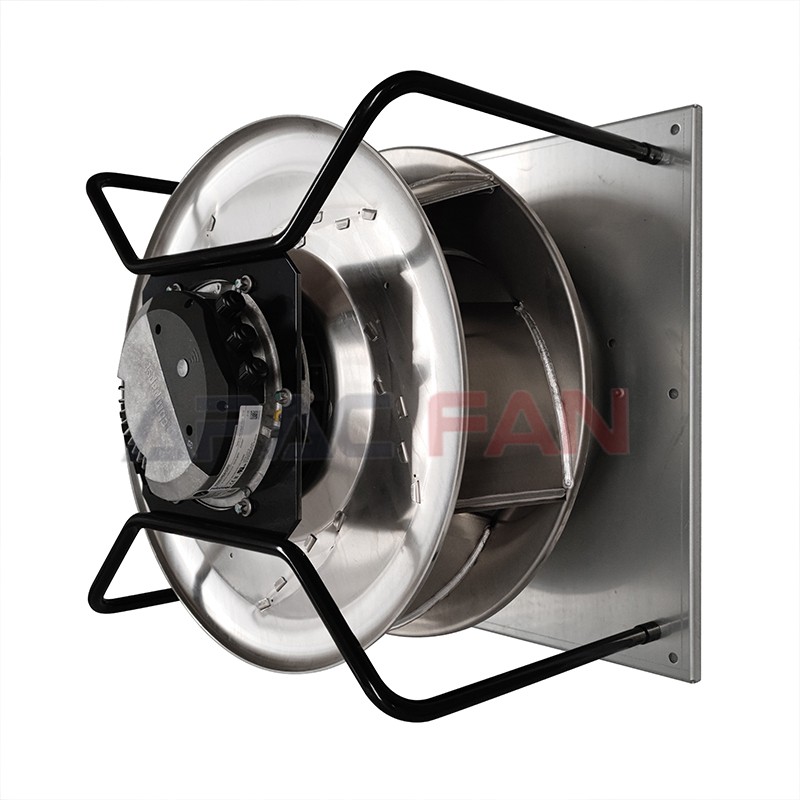

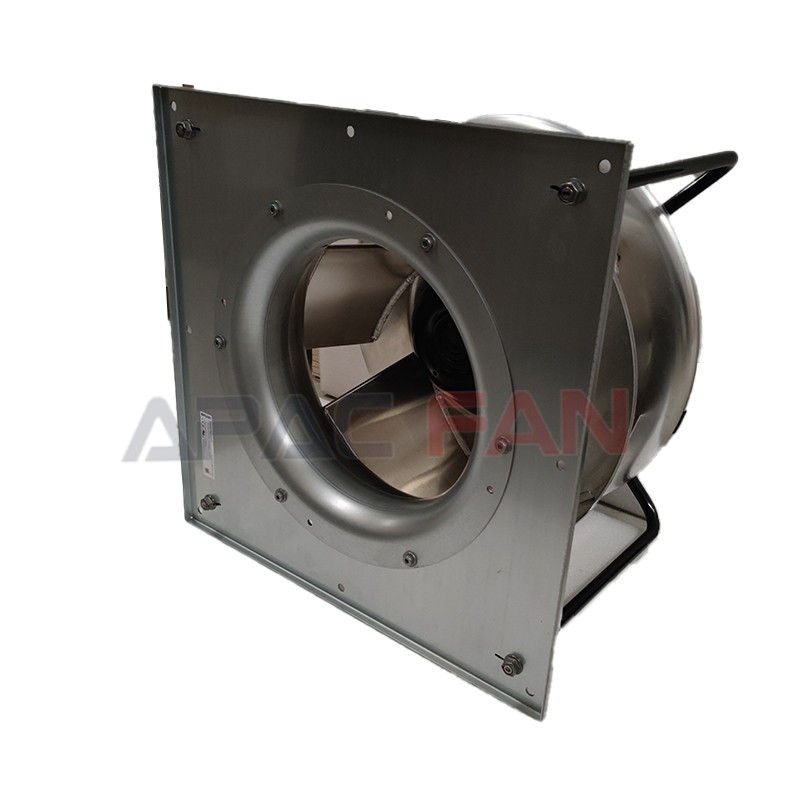

K3G500-PB24-03/F01 Ebmpapst EC Fan

Brand：

ebmpapst

Document：

K3G500PB2403.PDF

Category：

Centrifugal Fan

Description：

RadiPac integrated module with bracket. 500mm backward impeller with EC tech supports 0-10V/PWM. Ideal for commercial AHU with peak efficiency and easy maintenance.

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

K3G500-PB24-03/F01

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

500

Max.Air Flow(m³/h)：

15935

Max.Pressure(Pa)：

1094

Input Power(W)：

4200

Speed(rpm)：

2000

Noise(db)：

Description

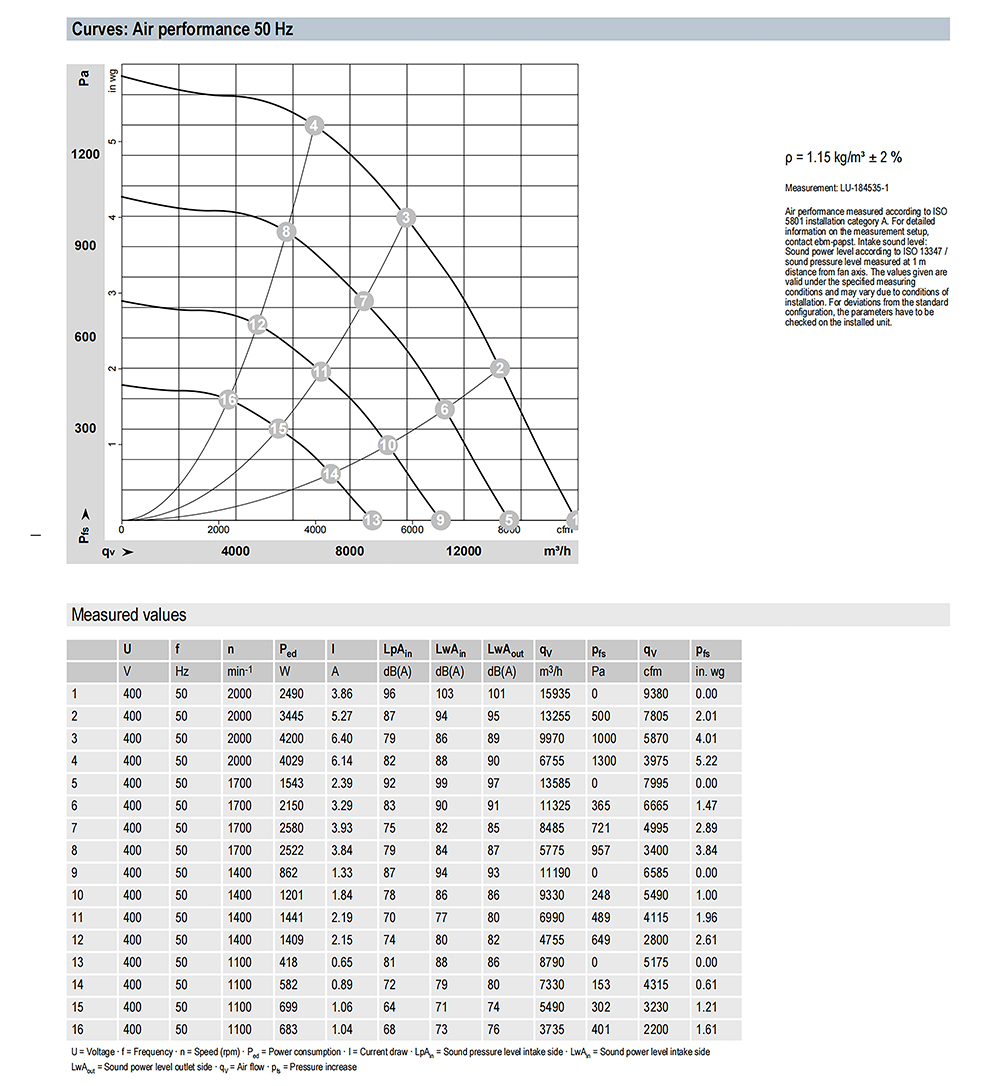

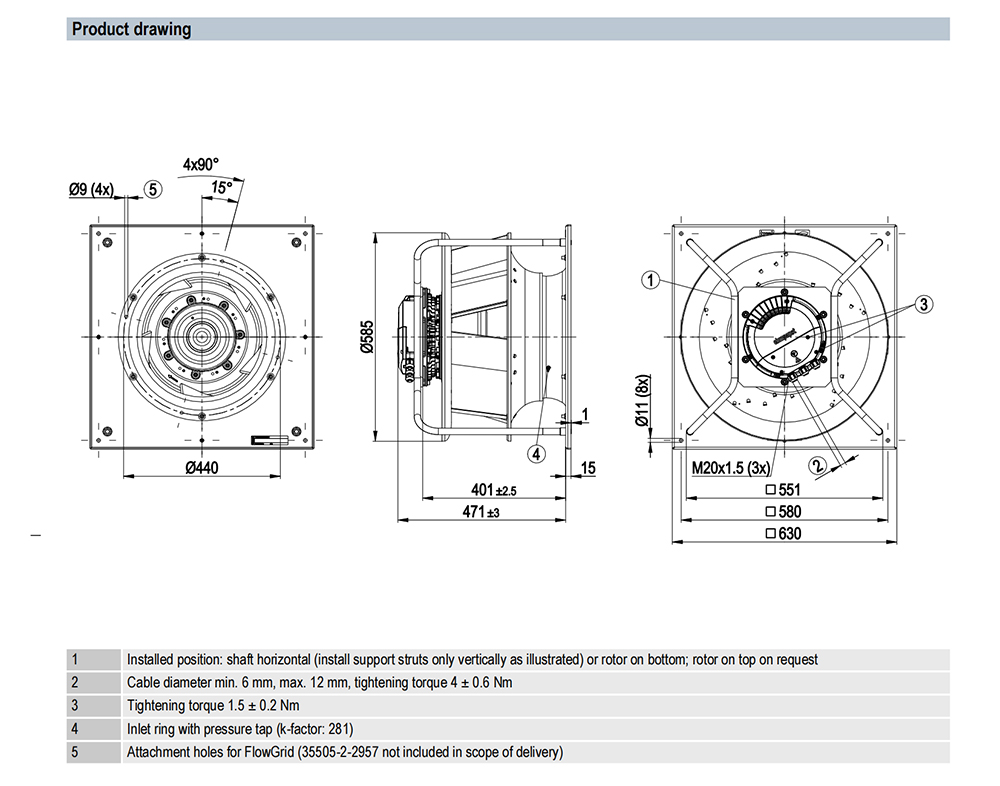

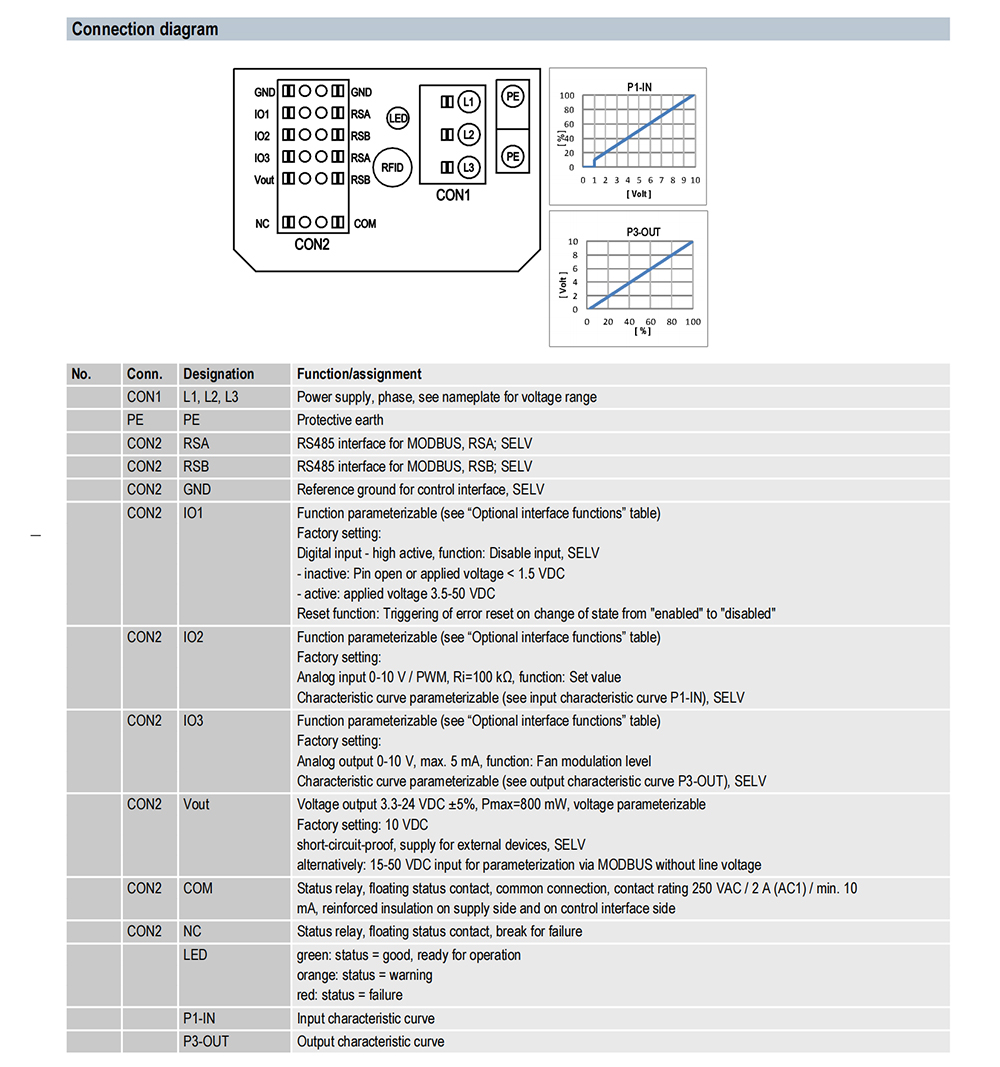

K3G500-PB24-03/F01 ebmpapst Specification Drawing：
