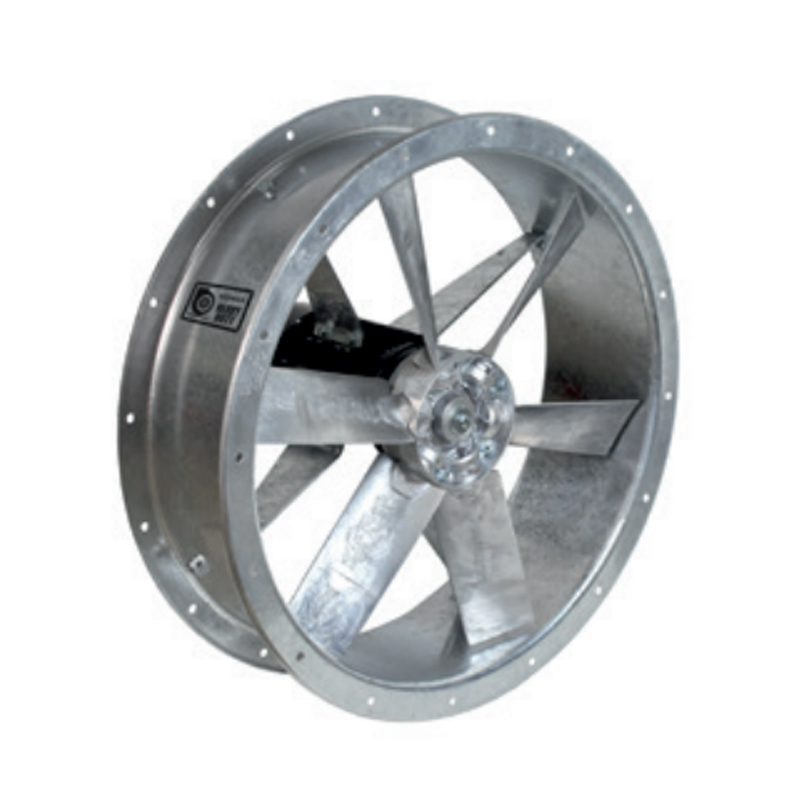

HFW Fans For Industrial Applications
Description
Tubular axial fans designed with four support arms to reduce vibrations and equipped with low consumption aerodynamic aluminum propeller.
Fan:
• Airflow direction from motor to impeller.
• AL version impeller made of cast aluminium.
• Support ring in sheet steel with double flange and cable glands for motor supply.
• Hot dip galvanised tubular sheet steel casing.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Hot dip galvanised.
On request:
• Airflow direction from impeller to motor.
• Fibreglass reinforced polyamide PL version impellers.
• 100% reversible impellers.
• Special windings for different voltages.
• ATEX certified Category 2.
