G3G225-AD29-71

Brand：

ebmpapst

Document：

G3G225AD2971.PDF

Category：

Centrifugal Fan

Description：

Type: Centrifugal fan
Application: Pharmaceutical equipment fan

00852-56261528 info@apacfan.com

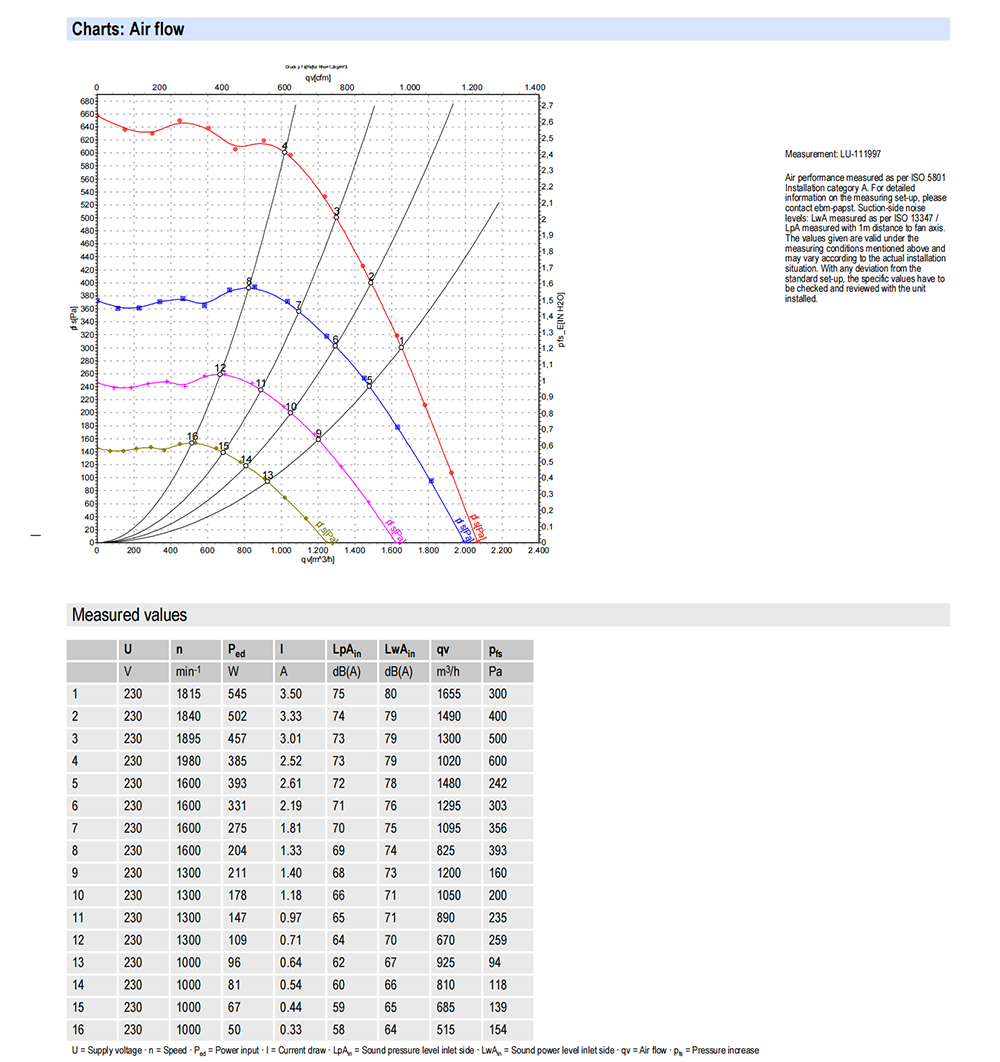

Nominal data

Brand：

ebmpapst

Part No.：

G3G225-AD29-71

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

230

Size(mm)：

225

Max.Air Flow(m³/h)：

1655

Max.Pressure(Pa)：

600

Input Power(W)：

545

Speed(rpm)：

1815

Noise(db)：

58

Description

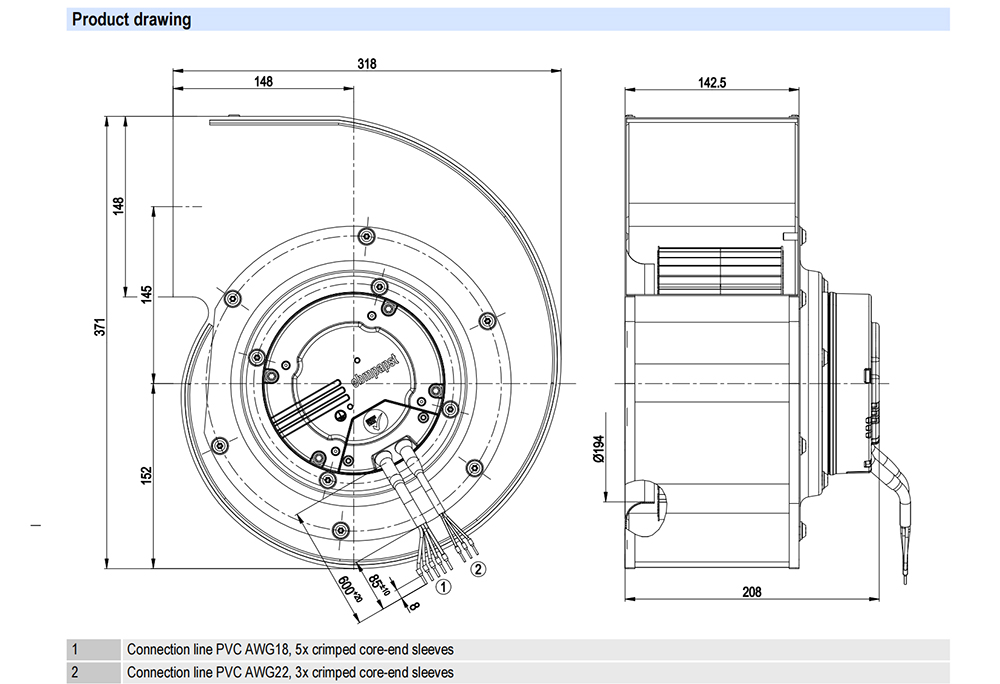

G3G225-AD29-71 ebmpapst Specification drawing：
