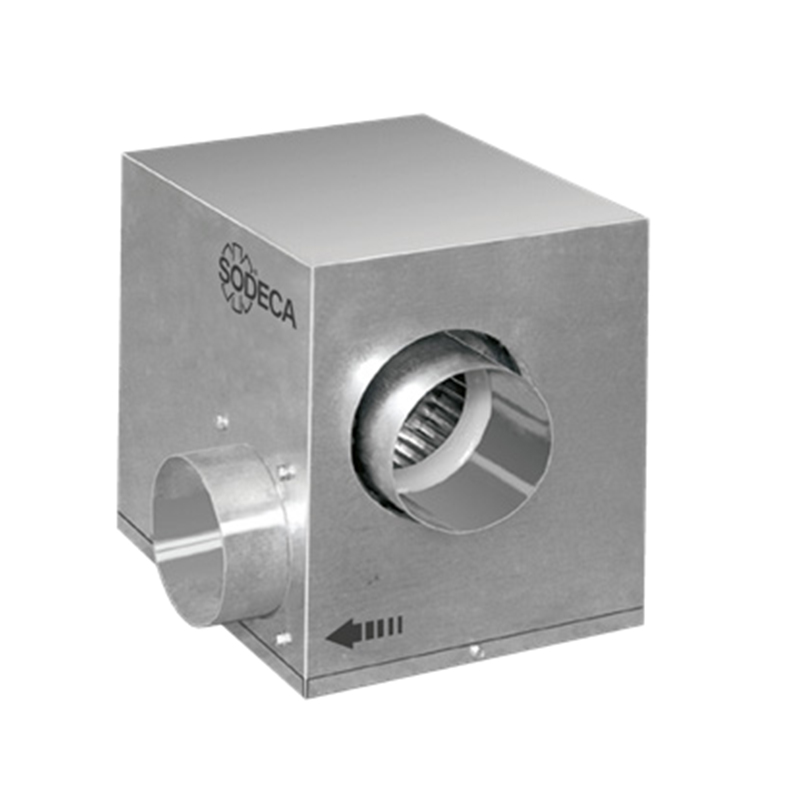

CJMP/AL ATEX Fans
Brand：
SODECA
Document：
Category：
Description：
Non-sparking aluminum ventilation units for use in rooms with natural gas boilers
Nominal data
Brand：
SODECA
Part No.：
CJMP/AL
Fan Type：
Rated Voltage(V)：
1~230/3~400
Size(mm)：
Max.Air Flow(m³/h)：
255
Max.Pressure(Pa)：
Input Power(W)：
90-250
Speed(rpm)：
1370-1440
Noise(db)：
42-53
Description
Low and medium pressure fans with non-sparking aluminum construction, for use in rooms with natural gas boilers according to the UNE 60601 standard, not suitable for ATEX risk areas.
Fan:
• Forward curved impeller in aluminum sheet.
• Galvanised sheet steel structure.
• Maximum temperature of air to be carried: -25 ºC +120 ºC.
Motor:
• Class F motors with ball bearings and IP55 protection.
• Single-phase 230 V 50 Hz.
• Working temperature: -25 ºC +50 ºC.
Finish:
• Galvanised steel sheet.
On request:
• Special windings for different voltages.
• ATEX certified Category 2.
