CDXR/ATEX ATEX Fans

Brand：

SODECA

Document：

Category：

Description：

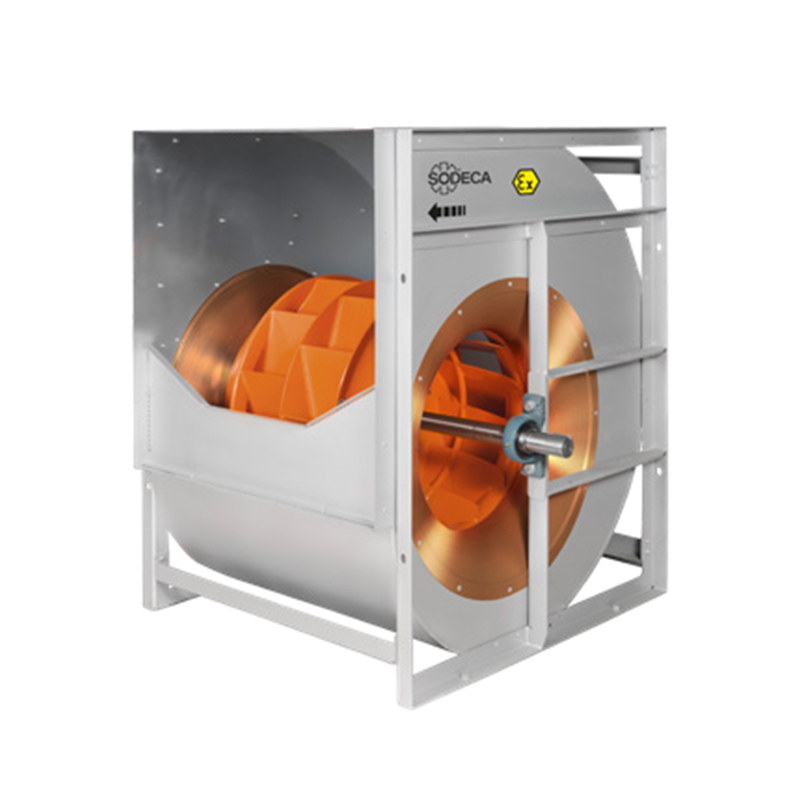

Belt driven centrifugal double inlet fans with shaft output on both sides, with ATEX 2G or 2D certification

00852-56261528 info@apacfan.com

Nominal data

Brand：

SODECA

Part No.：

CDXR/ATEX

Fan Type：

Rated Voltage(V)：

1~230/3~400

Size(mm)：

Max.Air Flow(m³/h)：

4380

Max.Pressure(Pa)：

Input Power(W)：

2200-37000

Speed(rpm)：

1100-4900

Noise(db)：

Description

Belt driven centrifugal double inlet fans with shaft output on both sides, with ATEX 2G or 2D certification
Fan:
• Galvanised steel sheet casing.
• Backward curved impeller made of painted sheet steel.
• Non-sparking inlet rings made of copper.
• Temperature of the air to be carried: -25 ºC to +48 ºC.
• Standard marking: II 2G Ex h IIB T6 Gb and II 2D Ex h IIIC 85 ºC Db.
Finish:
• Galvanised steel sheet.
