繁體中文Energy-Efficient AHU and Exhaust Fan Retrofit for an Optical Film Manufacturer
07/16/2026Optical film and advanced-material manufacturing requires carefully controlled workshop conditions. Airflow uniformity, temperature and humidity stability, cleanliness, and vibration control can all influence production consistency and product quality.
AISA PACIFIC SHENGRUI LIMITED carried out a targeted upgrade of the workshop AHU and exhaust fan system for an optical film and advanced-material manufacturing facility. The project focused on improving energy efficiency, airflow stability, maintainability, and operational reliability without replacing the complete ventilation system.
By evaluating the existing equipment and matching the new fans to actual operating requirements, the retrofit provided a practical solution for reducing energy waste while supporting stable workshop conditions.
Airflow Requirements in Optical Film Manufacturing
Optical films are widely used in displays, lighting products, electronics, automotive systems, and other precision applications. Manufacturing processes may include coating, drying, laminating, curing, slitting, inspection, and packaging.
Some of these processes are sensitive to airborne particles, temperature fluctuations, humidity changes, and unstable air movement. Uneven supply air may create different environmental conditions across the production area, while insufficient exhaust can allow heat, moisture, odors, or process emissions to accumulate.
The workshop AHU and exhaust system must therefore maintain a suitable balance between conditioned air supply, filtration, room pressure, and contaminant removal. Fan performance is a critical part of this overall environmental-control system.
Challenges of the Existing Fan System
The original fan equipment remained operational, but its efficiency and control capability no longer fully matched the facility’s production requirements.
Older AHU and exhaust fans may consume excessive energy because of fixed-speed operation, mechanical transmission losses, contaminated components, poor system matching, or increasing resistance across filters and ductwork. Even when a motor continues running normally, the complete system may deliver less useful airflow for every unit of electricity consumed.
Belt-driven fans also require ongoing inspection and maintenance. Belt tension, pulley alignment, bearing condition, and vibration levels must be checked regularly. As components wear, the system may experience higher noise, reduced airflow, increased power consumption, and a greater risk of unplanned downtime.
These problems can be particularly disruptive in advanced-material manufacturing, where stable environmental conditions and continuous production are important.
Evaluating the Existing AHU and Exhaust System
Before developing the retrofit plan, AISA PACIFIC SHENGRUI LIMITED evaluated the actual operating conditions of the workshop ventilation system.
The assessment considered required airflow, external static pressure, filter resistance, duct configuration, available installation space, equipment structure, electrical connections, maintenance access, and control requirements. The relationship between supply air and exhaust air was also considered to avoid creating unwanted pressure imbalances within the workshop.
Because airflow demand may vary according to production load, operating schedules, filter condition, and seasonal temperature, the system needed sufficient capacity as well as flexible control.
The objective was not simply to install fans with a higher rated output. The new equipment had to match the existing system and deliver stable performance across the required operating range.
Targeted High-Efficiency Fan Upgrade
The retrofit focused on upgrading inefficient fans and associated control components while retaining AHU casings, ducts, and other equipment that remained suitable for continued service.
High-efficiency fan technology can reduce electrical consumption when correctly selected according to the system’s airflow and pressure requirements. Direct-drive designs may also eliminate belts and pulleys, reducing transmission losses and simplifying the mechanical structure.

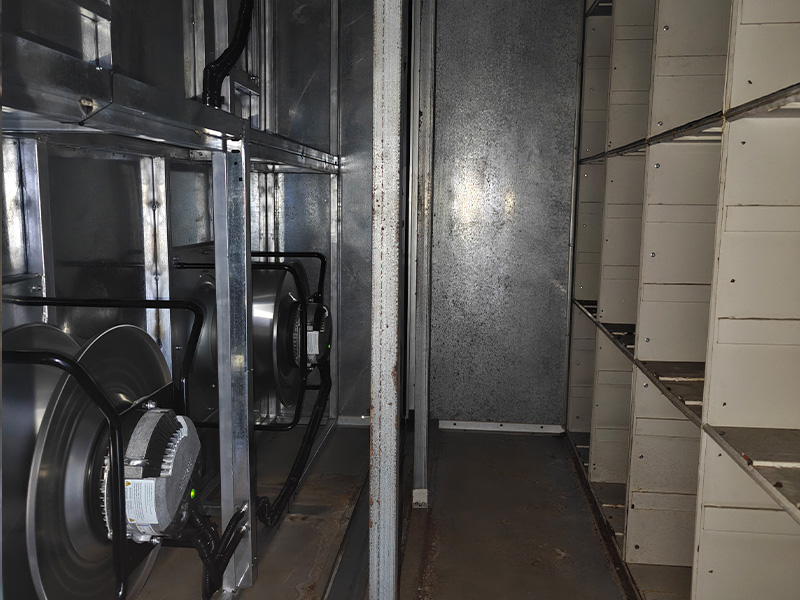

For suitable AHU applications, a modular EC fan wall can distribute airflow more evenly across filters and coils than a traditional single-fan arrangement. This may help improve the utilization of the available heat-transfer and filtration area while providing greater control flexibility.
The final fan arrangement must always be selected according to the AHU structure, system resistance, airflow requirements, and available installation space.
Variable-Speed Control for Changing Demand
A fixed-speed fan generally operates at the same output even when the workshop does not require full airflow. This can result in unnecessary energy consumption during partial-load production, maintenance periods, or lower-demand operating conditions.
Variable-speed control allows AHU and exhaust fans to adjust their output according to actual system demand. Control signals may be based on temperature, humidity, pressure, airflow, filter resistance, production status, or other monitored conditions.
When demand decreases, fan speed can be reduced while the required workshop conditions are maintained. When production load or system resistance increases, the fans can raise their output within the designed operating range.
This demand-based approach can improve energy efficiency while supporting more stable environmental control.
Improved Airflow Uniformity
Airflow uniformity is important in optical film and advanced-material workshops. Poor air distribution may create local areas with different temperatures, humidity levels, particle concentrations, or air velocities.
A properly designed fan retrofit can improve the distribution of supply air through the AHU and duct system. In a modular fan-wall arrangement, multiple fans can deliver air across a wider section of the AHU, helping reduce concentrated airflow and uneven loading across filters or coils.
However, fan performance is only one factor affecting workshop airflow. Diffuser placement, duct design, return-air paths, filter condition, production-equipment layout, and room pressure must also be considered when evaluating overall air distribution.
Stable Temperature and Humidity Conditions
Coating, laminating, curing, and other material-processing operations may require consistent temperature and humidity conditions. Fluctuations can affect material behavior, drying performance, static control, dimensional stability, or process repeatability.
Stable fan output supports the AHU’s cooling, heating, humidification, dehumidification, and filtration functions. When airflow is controlled accurately, other HVAC components can operate under more predictable conditions.
Variable-speed control also allows the facility team to adjust airflow as production requirements change, helping avoid both insufficient ventilation and unnecessary over-conditioning.
Reliable Exhaust for Production Processes
Exhaust systems may be used to remove heat, moisture, odors, or process-generated emissions from production areas. Stable exhaust performance is important for maintaining local air quality and the intended pressure relationship between different workshop zones.
An exhaust fan must provide the necessary airflow at the actual system pressure. If its output is too low, capture performance may be inadequate. If it is oversized, it may waste energy, increase noise, and disturb room-pressure balance.
The retrofit therefore considered exhaust-fan matching and control rather than simply increasing fan capacity. Where process demand varies, speed adjustment can help align exhaust airflow with the number of active production lines or the current operating load.
Reduced Vibration and Noise
Low vibration is especially valuable in facilities using precision coating, inspection, measuring, or handling equipment. Mechanical vibration from worn belts, bearings, pulleys, or unbalanced fan assemblies may be transferred to the AHU casing, ductwork, or nearby structures.
Direct-drive fans reduce the number of mechanical transmission components and eliminate problems associated with belt tension and pulley alignment. Improved fan selection and operation at appropriate speeds can also reduce unnecessary aerodynamic noise.
Lower noise and vibration contribute to a more stable production environment and can reduce mechanical stress on connected equipment.
Simplified Maintenance and Improved Serviceability
Maintenance requirements were an important consideration in the retrofit design. AHU and exhaust equipment must be inspected, cleaned, and serviced without causing excessive interruption to manufacturing operations.
Replacing belt-driven equipment with direct-drive fans can reduce the number of wear components requiring adjustment and replacement. Maintenance teams no longer need to perform routine belt-tension and pulley-alignment work on upgraded direct-drive units.
When a modular fan arrangement is appropriate, individual fan modules may also be easier to inspect or replace than one large centralized fan. Depending on the system design, other fans may continue providing partial airflow while one module is serviced.
Monitoring and alarm functions can further help facility teams identify abnormal conditions and plan maintenance before a minor problem develops into an unexpected shutdown.
Why a Targeted Retrofit Can Be More Practical
Replacing an entire AHU or exhaust system may involve modifications to equipment rooms, ductwork, structural supports, electrical systems, and workshop layouts. It may also require extended production shutdowns.
A targeted fan retrofit retains serviceable parts of the existing system while addressing the primary sources of energy waste, unstable airflow, mechanical maintenance, or limited control. This can reduce project cost and implementation time compared with complete equipment replacement.
The approach is particularly suitable when the existing AHU structure and duct system remain usable but the original fan technology no longer meets current efficiency and operational requirements.
Long-Term Operational Benefits
The long-term value of the retrofit comes from lower energy consumption, more accurate airflow control, reduced mechanical maintenance, and improved operational flexibility.
As production schedules, filter resistance, outdoor conditions, or process loads change, variable-speed fans can be adjusted to maintain the required system performance. Better monitoring also helps maintenance teams understand operating conditions and respond more quickly to potential faults.
These improvements support more predictable maintenance planning and reduce the facility’s exposure to airflow-related production interruptions.
Conclusion
The AHU and exhaust fan upgrade provided the optical film and advanced-material manufacturer with a focused way to improve ventilation performance without replacing the entire system.
Through site evaluation, high-efficiency fan selection, variable-speed control, and improved serviceability, AISA PACIFIC SHENGRUI LIMITED developed a retrofit solution designed to support airflow uniformity, temperature and humidity stability, workshop cleanliness, low vibration, and energy-efficient operation.
For advanced-material production facilities with aging ventilation equipment, a carefully planned fan retrofit can help reduce operating costs while supporting reliable and consistent manufacturing conditions.
