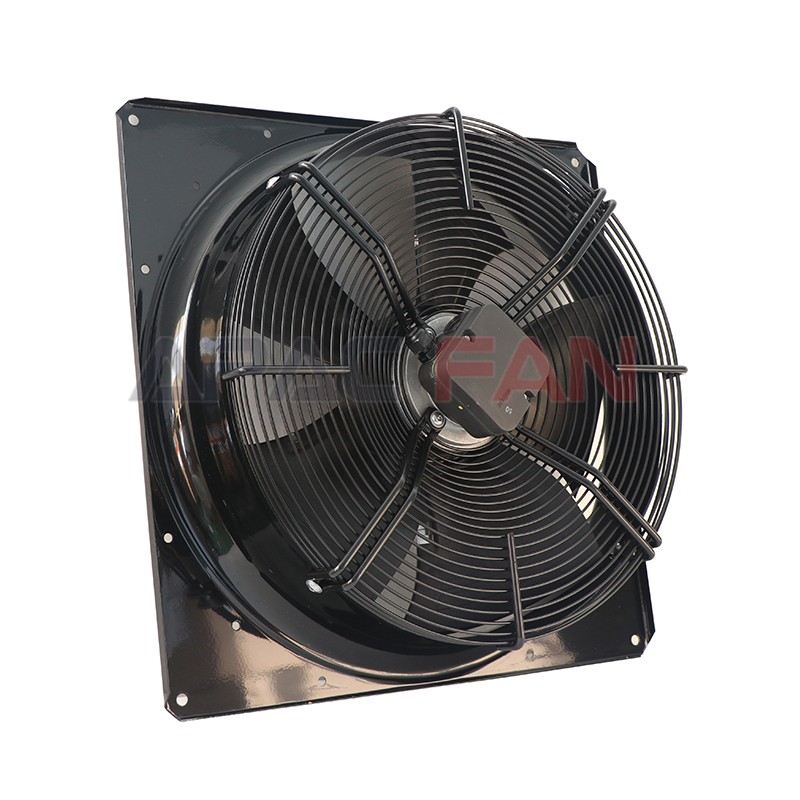

W4D560-GR03-03 Ebm-papst Axial Fan

Brand：

ebmpapst

Document：

W4D560GR0303.PDF

Category：

Axial Fan

Description：

Brand：ebmpapst
Part No：W4D560-GR03-03
Fan Type：Axial Fan
Rated Voltage(V)：480
Size(mm)：560
Max.Air Flow(m³/h)：12070
Max.Pressure(Pa)：230
Input Power(W)：1420
Speed(RPM)：1640
Noise(dB)：75

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

W4D560-GR03-03

Fan Type：

Axial Fan

Rated Voltage(V)：

480

Size(mm)：

560

Max.Air Flow(m³/h)：

12070

Max.Pressure(Pa)：

230

Input Power(W)：

1420

Speed(rpm)：

1640

Noise(db)：

75

Description

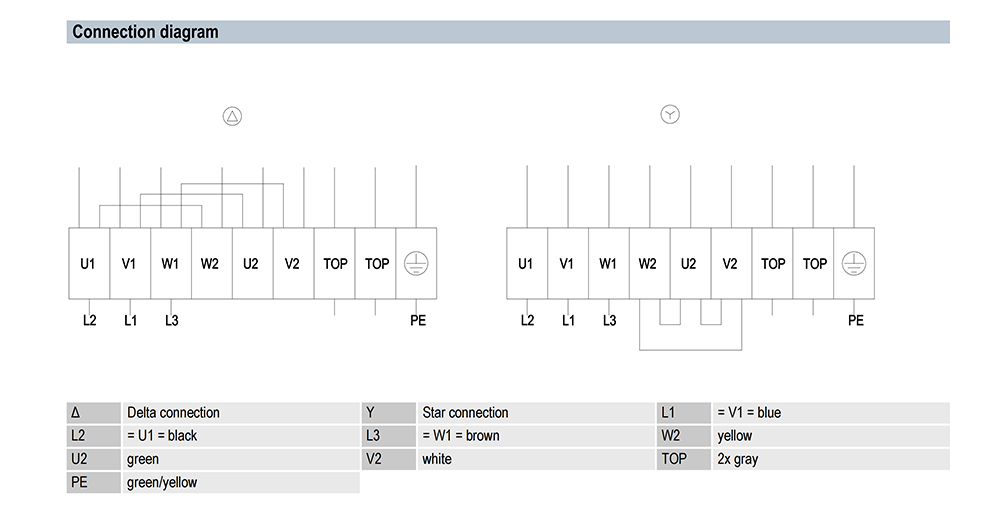

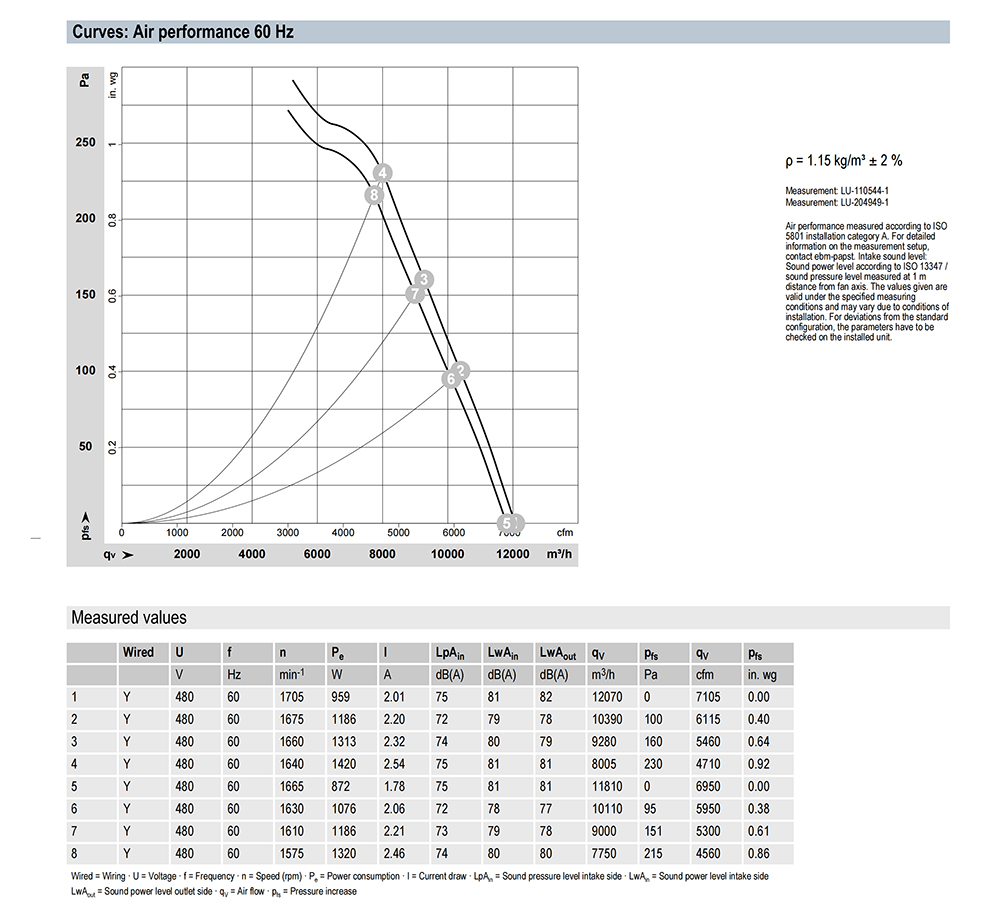

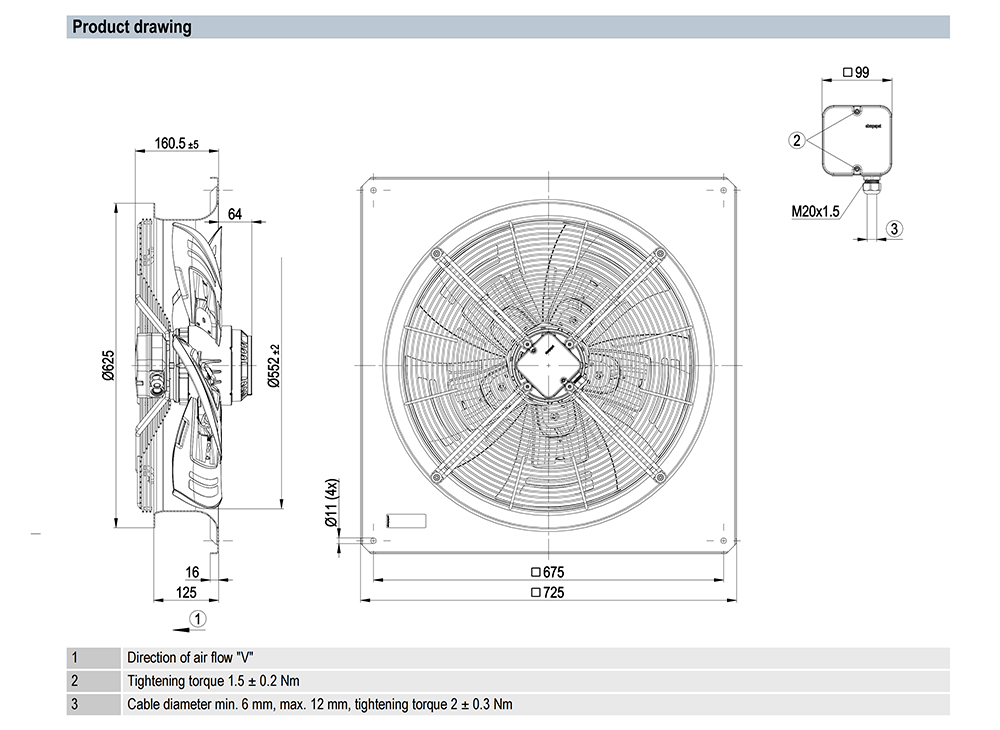

W4D560-GR03-03 Ebm-papst Specification drawing：
