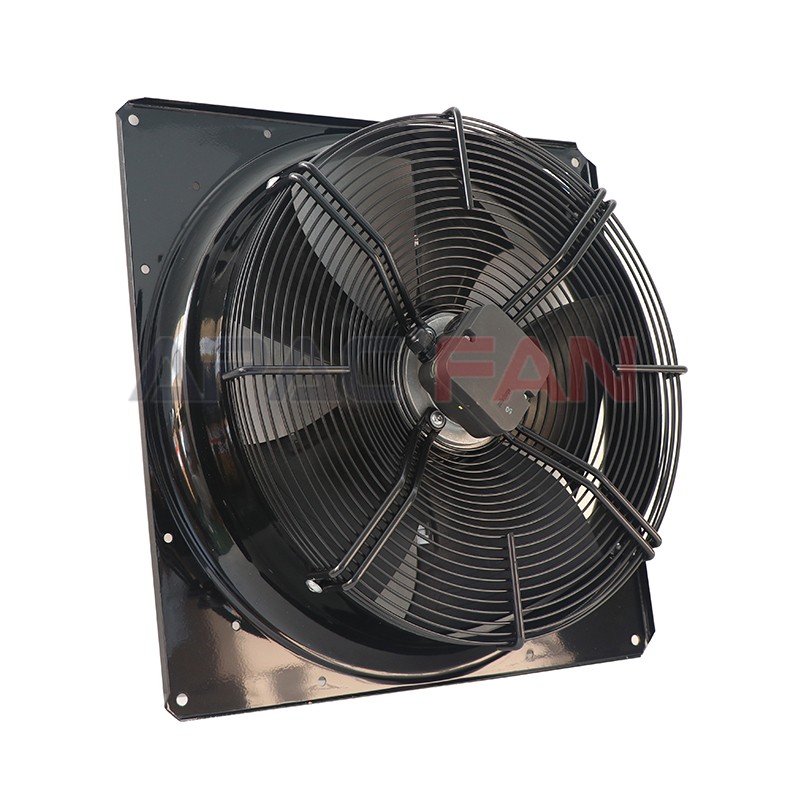

W4D500-GM01-03/F01 Ebm-papst Axial Fan

Brand：

ebmpapst

Document：

W4D500-GM01-03/F01

Category：

Axial Fan

Description：

Brand：ebmpapst
Part No：W4D500-GM01-03/F01
Fan Type：Axial Fan
Rated Voltage(V)：480
Size(mm)：500
Max.Air Flow(m³/h)：10830
Max.Pressure(Pa)：160
Input Power(W)：1050
Speed(RPM)：1590
Noise(dB)：67

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

W4D500-GM01-03/F01

Fan Type：

Axial Fan

Rated Voltage(V)：

480

Size(mm)：

500

Max.Air Flow(m³/h)：

10830

Max.Pressure(Pa)：

160

Input Power(W)：

1050

Speed(rpm)：

1590

Noise(db)：

67

Description

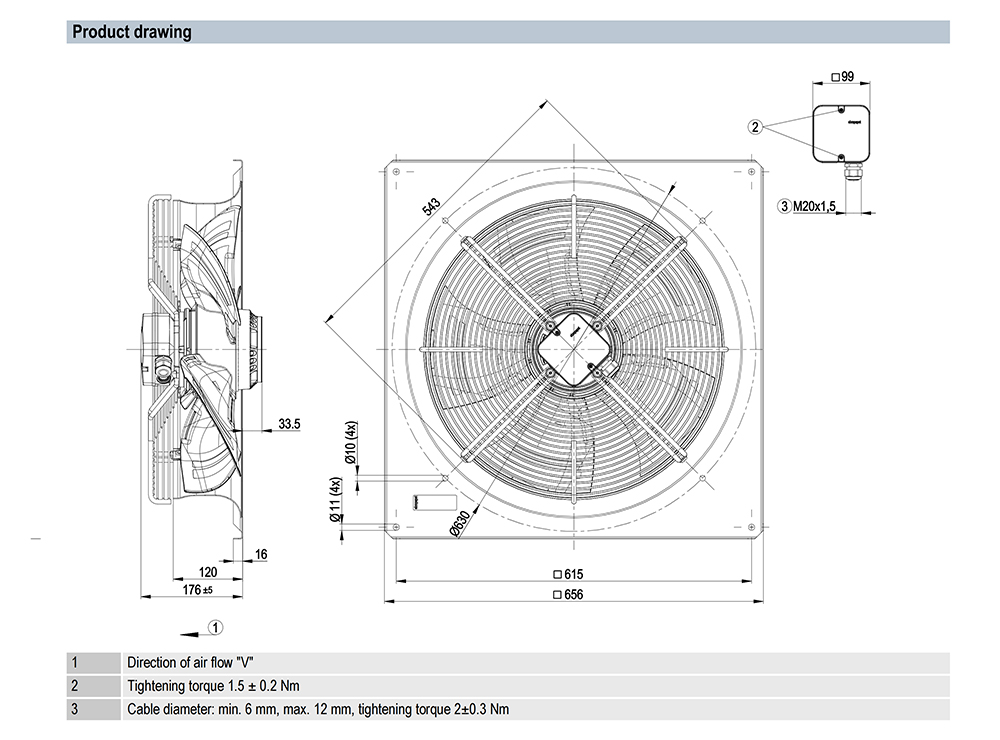

W4D500-GM01-03/F01 Ebm-papst Specification drawing：
