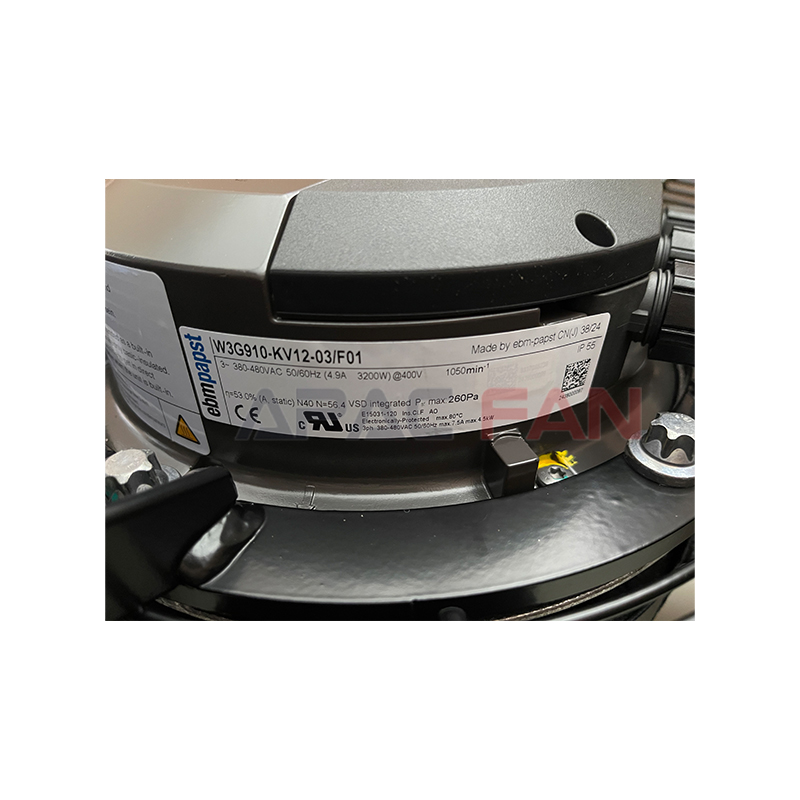

W3G910-KV12-03/F01 Ebm-papst Axial Fan

Brand：

ebmpapst

Document：

W3G910KV1203F01.PDF

Category：

Axial Fan

Description：

Brand：ebmpapst
Part No：W3G910-KV12-03/F01
Fan Type：Axial Fan
Rated Voltage(V)：400
Size(mm)：910
Max.Air Flow(m³/h)：36070
Max.Pressure(Pa)：260
Input Power(W)：3200
Speed(RPM)：1050
Noise(dB)：79

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

W3G910-KV12-03/F01

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

910

Max.Air Flow(m³/h)：

36070

Max.Pressure(Pa)：

260

Input Power(W)：

3200

Speed(rpm)：

1050

Noise(db)：

Description

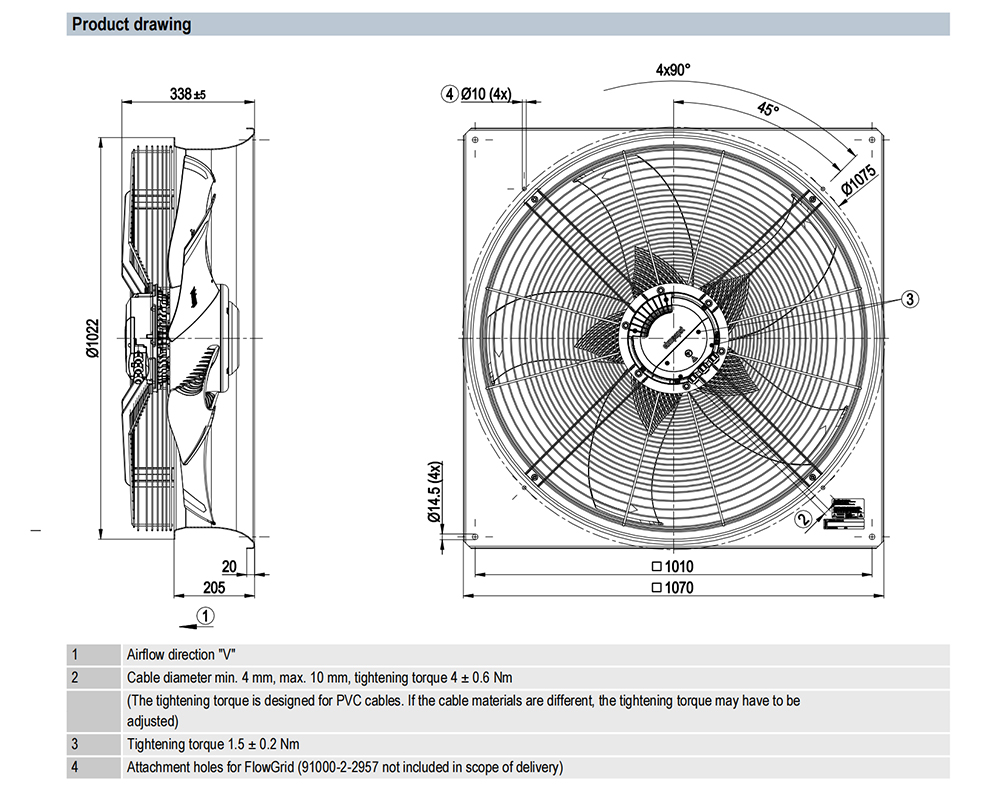

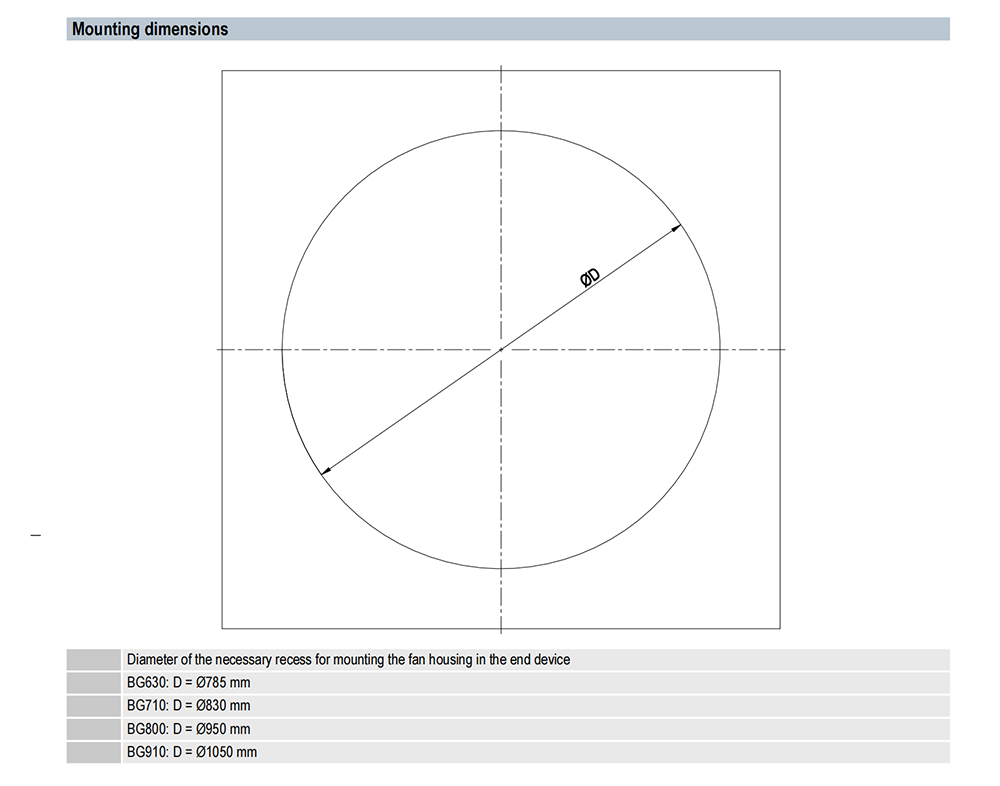

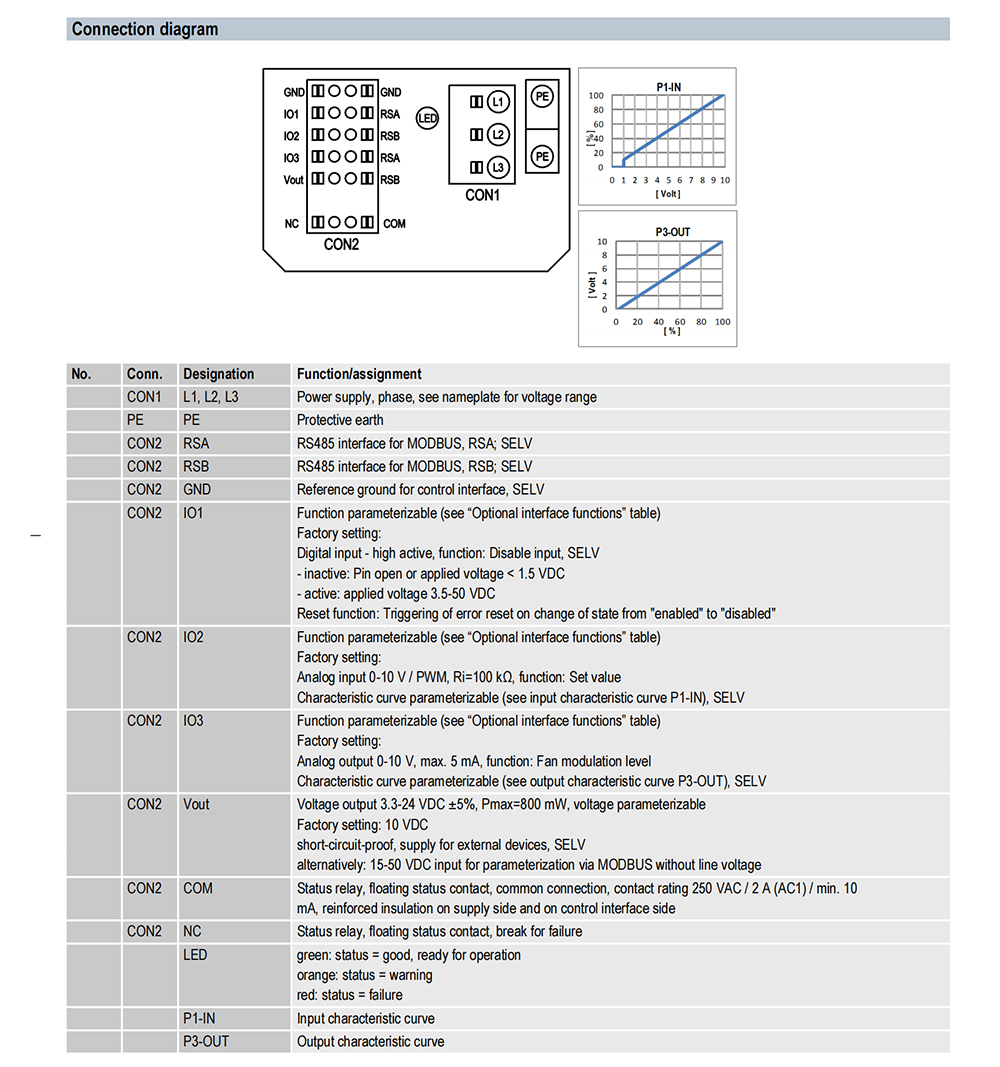

W3G910-KV12-03/F01 Ebm-papst Specification drawing：
