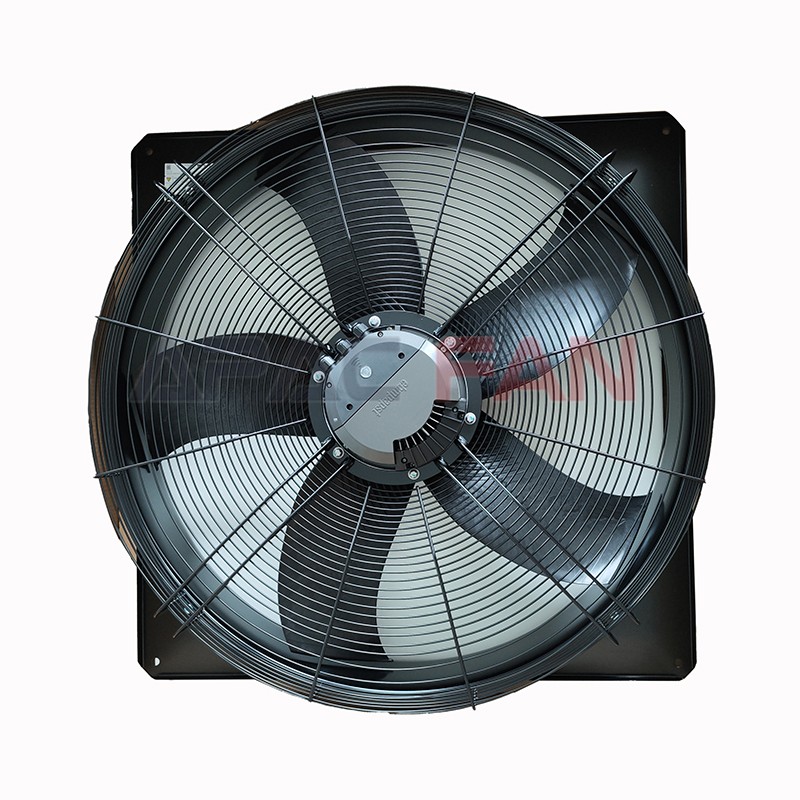

W3G910-KU25-03/F08
Part No：W3G910-KU25-03/F08
Fan Type：Axial Fan
Rated Voltage(V)：400
Size(mm)：910
Max.Air Flow(m³/h)：20280
Max.Pressure(Pa)：220
Input Power(W)：2550
Speed(RPM)：980
Noise(dB)：75
Nominal data
Description

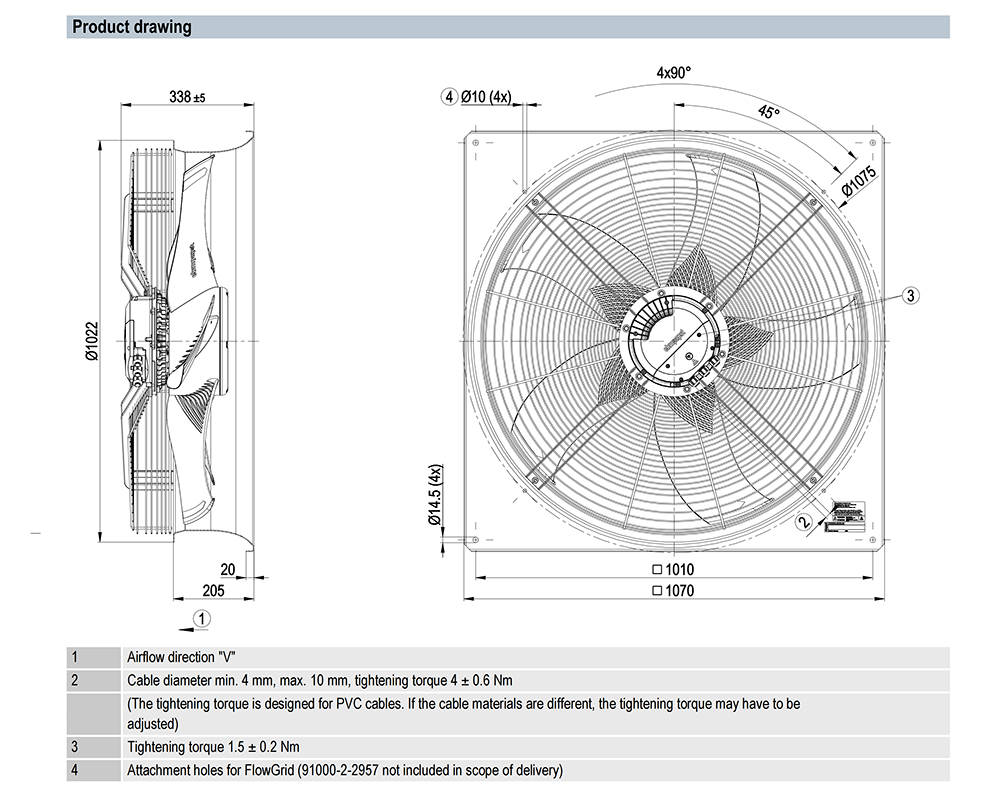

W3G910-KU25-03/F08 Ebm-papst Specification drawing：
910 mm Axial Fan for High-Airflow Applications
With its 910 mm fan size and maximum airflow of 20,280 m³/h, the W3G910-KU25-03/F08 is suitable for applications where a large volume of air needs to be moved through cooling or ventilation equipment.
Axial fan design moves air primarily in the direction of the fan axis, making this type of fan particularly suitable for systems requiring high airflow with relatively moderate pressure requirements.
The combination of 20,280 m³/h maximum airflow and 220 Pa maximum pressure makes the W3G910-KU25-03/F08 suitable for integration into appropriately designed air-moving systems where both airflow capacity and system resistance must be considered.
EC Fan Technology
The W3G910-KU25-03/F08 belongs to the ebm-papst W3G series of EC axial fans.
EC fan technology combines the motor and electronic control system into an integrated fan solution. This makes EC axial fans suitable for modern cooling and ventilation equipment where controlled fan operation is required.
When integrating the W3G910-KU25-03/F08 into existing equipment or a new system, the electrical supply, control requirements, operating point and installation conditions should be checked carefully.
Typical Applications
The W3G910-KU25-03/F08 can be considered for high-airflow cooling and ventilation equipment where its airflow, pressure, electrical and dimensional specifications match the system requirements.
Typical application areas may include:
- Condensing units
- Refrigeration equipment
- HVAC equipment
- Industrial cooling systems
- Heat exchanger ventilation
- Air-cooled equipment
- Large ventilation systems
Actual fan selection should always be based on the required operating point and equipment design rather than fan diameter or airflow alone.
Selecting the W3G910-KU25-03/F08
Before selecting this model for a new project, check the required airflow and static pressure of the system.
A fan should normally be evaluated at the actual operating point rather than selected only according to its maximum airflow value. Components such as heat exchangers, coils, grilles and equipment structures can create airflow resistance and affect actual fan performance.
For replacement projects, check the complete existing fan identification before ordering. Important information includes:
- Complete model number
- Rated voltage
- Fan size
- Airflow requirement
- Pressure requirement
- Input power
- Speed
- Installation dimensions
- Electrical connection
- Control requirements
This is particularly important for the W3G910-KU25-03 series, because different suffix versions should not automatically be treated as interchangeable.
W3G910-KU25-03/F08 Replacement Considerations
When replacing an existing W3G910-KU25-03/F08, using the complete part number is the safest starting point.
Do not select a replacement based only on the base designation W3G910-KU25-03. The suffix /F08 identifies the specific version covered on this page.
Before replacing the fan, compare the existing unit with the required replacement in terms of electrical data, performance, dimensions, mounting arrangement and control requirements.
If the original fan label is available, providing a clear photo of the nameplate can help identify the exact model.
W3G910-KU25-03/F08 FAQ
Q1. What type of fan is the W3G910-KU25-03/F08?
A1. The W3G910-KU25-03/F08 is an ebm-papst axial fan with a 910 mm size. It is designed for applications requiring high-volume airflow through cooling or ventilation equipment.
Q2. What is the rated voltage of the W3G910-KU25-03/F08?
A2. The rated voltage is 400 V. The electrical requirements of the equipment should be checked before installation or replacement.
Q3. What is the maximum airflow of the W3G910-KU25-03/F08?
A3. The maximum airflow is 20,280 m³/h. Actual airflow in an installed system depends on the operating point and system resistance.
Q4. What is the maximum pressure of the W3G910-KU25-03/F08?
A4. The maximum pressure is 220 Pa. For fan selection, both required airflow and system pressure should be considered together.
Q5. What is the speed of the W3G910-KU25-03/F08?
A5. The listed speed is 980 rpm, with an input power of 2,550 W.
Q6. Is W3G910-KU25-03/F08 the same as other W3G910-KU25-03 versions?
A6. No. W3G910-KU25-03/F08 is a specific version within the W3G910-KU25-03 product family. Other suffix versions may have different technical specifications or configurations. Always check the complete model number before selecting a replacement.
Q7. Can I replace another W3G910-KU25-03 variant with the /F08 version?
A7. The models should not be assumed to be interchangeable simply because they share the W3G910-KU25-03 base designation. Compare the complete specifications, dimensions, electrical requirements and control configuration before making a substitution.
Q8. What information should I provide when requesting W3G910-KU25-03/F08?
A8. Provide the complete model number W3G910-KU25-03/F08, required quantity and, for replacement applications, a photo of the existing fan nameplate if available. For new projects, airflow, pressure, voltage, installation dimensions and application information are also useful for confirming the selection.
Request W3G910-KU25-03/F08 Product Information
Looking for the ebm-papst W3G910-KU25-03/F08 for a replacement or new cooling project?
Send us the complete model number, required quantity and application requirements. For replacement projects, you can also provide the existing fan nameplate and installation information so that the model and specifications can be checked before ordering.
