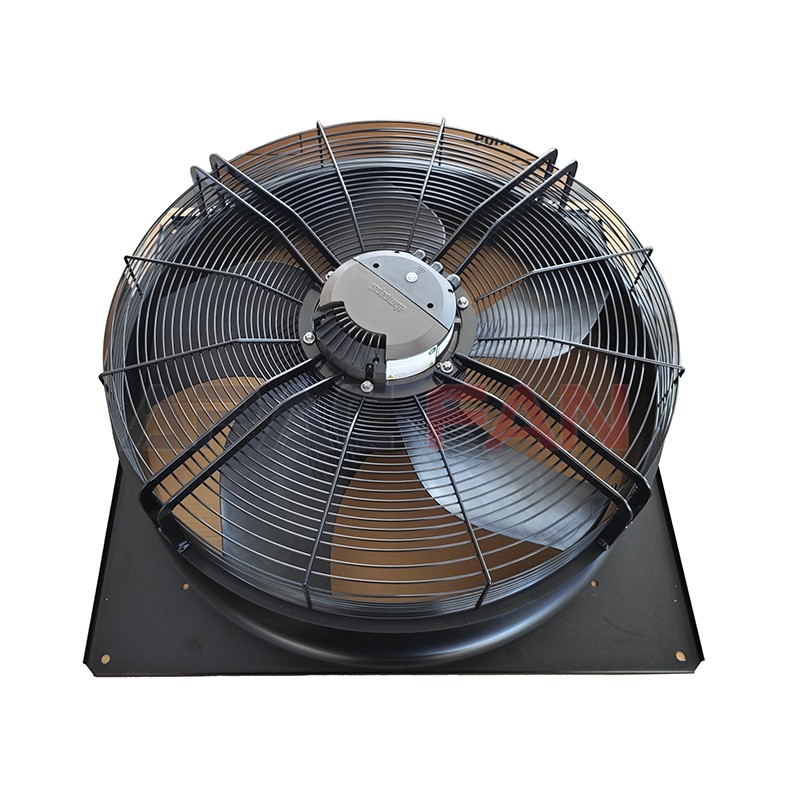

W3G800-KS39-03 ebm-papst Axial Fan
High-Efficiency EC Brushless Motor for Outstanding Energy Savings.
Supports 0–10V, PWM, Modbus and other control methods.
Long service life and minimal maintenance.
Nominal data
Description

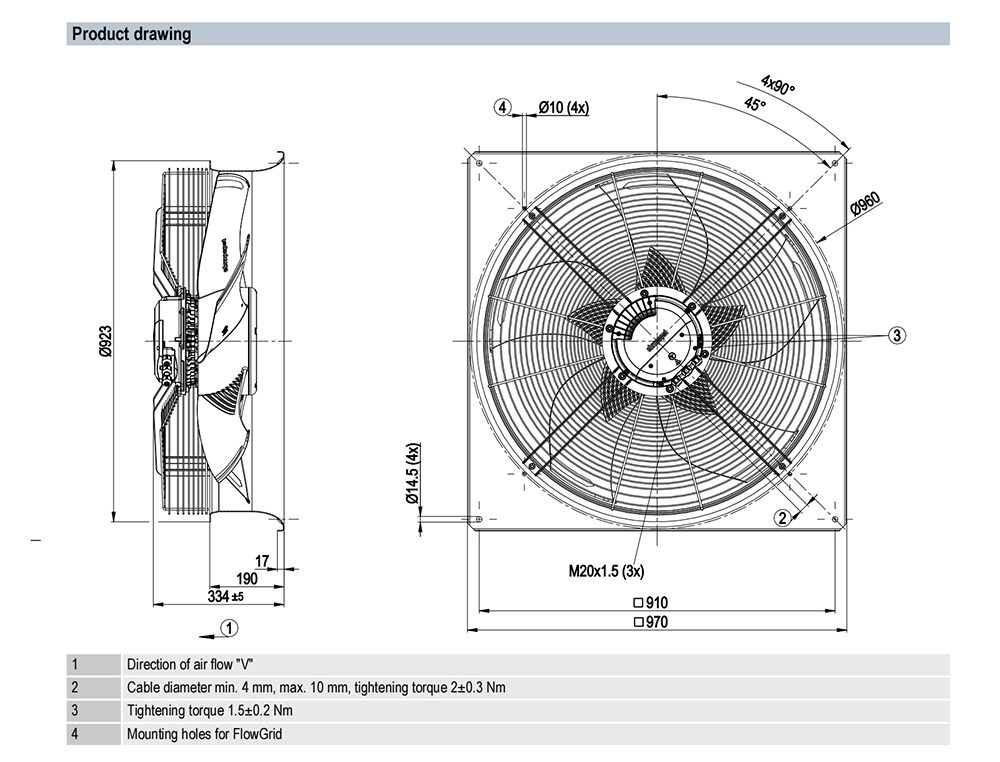

W3G800-KS39-03 Ebm-papst Specification drawing：
Product Description
The ebm-papst W3G800-KS39-03 is an EC axial fan for compatible heat-exchanger and ventilation equipment. APAC FAN currently lists a 400 V supply, 800 mm fan size, maximum airflow of 25,740 m³/h, maximum pressure of 220 Pa, 1,950 W power input, 940 rpm speed and 79 dB noise value.
Key Product Information
Keep the existing technical specification table prominent. The exact model number, EC axial fan type, 800 mm size and 400 V supply should be immediately visible to users arriving from an exact-model Google search.
Selection Considerations
Confirm the required operating point, mounting dimensions, airflow direction, electrical supply and control requirements before using W3G800-KS39-03 as a replacement. Maximum airflow is not the same as the airflow delivered at every system pressure.
Typical Equipment
The model can be considered for compatible condenser, heat-exchanger, dry-cooler and ventilation equipment when its performance and installation requirements match the system.
FAQ
Q1. What type of fan is W3G800-KS39-03?
A1. It is an ebm-papst EC axial fan.
Q2. What fan size is listed?
A2. APAC FAN currently lists an 800 mm fan size.
Q3. What is the listed maximum airflow?
A3. The current APAC FAN data lists 25,740 m³/h.
Q4. What is the listed speed?
A4. The current APAC FAN data lists 940 rpm.
Q5. Should the page be heavily rewritten for SEO?
A5. No. Because the page already has a strong search position, changes should be conservative and focused on CTR, technical clarity and useful internal links.
CTA
Need help confirming the correct fan for a replacement or new project? Send APAC FAN the existing model number, required airflow, static pressure, voltage, installation dimensions and control requirements. Our team can help you identify a suitable product and check availability.
