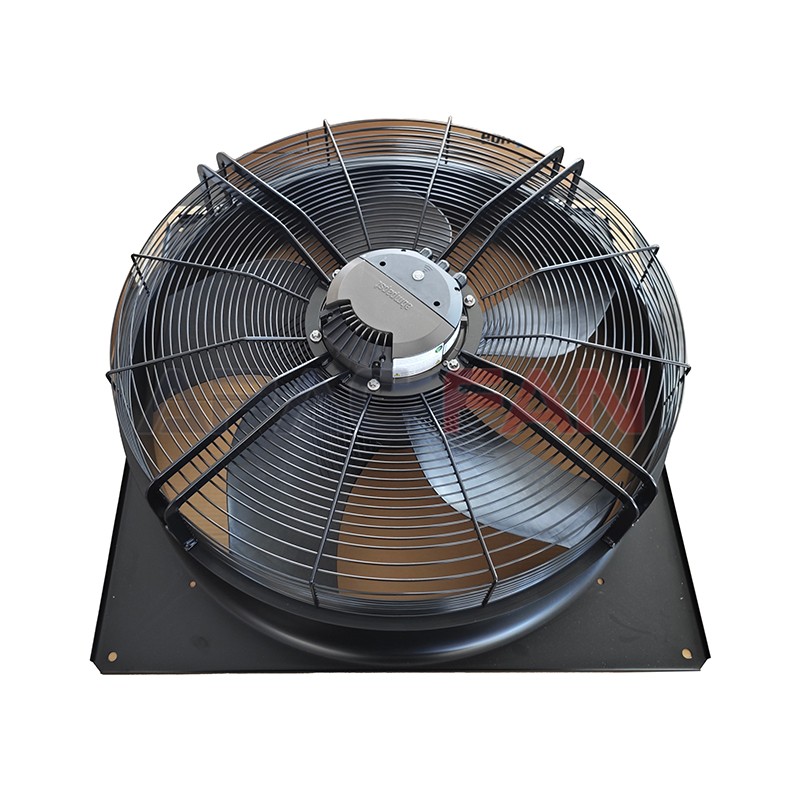

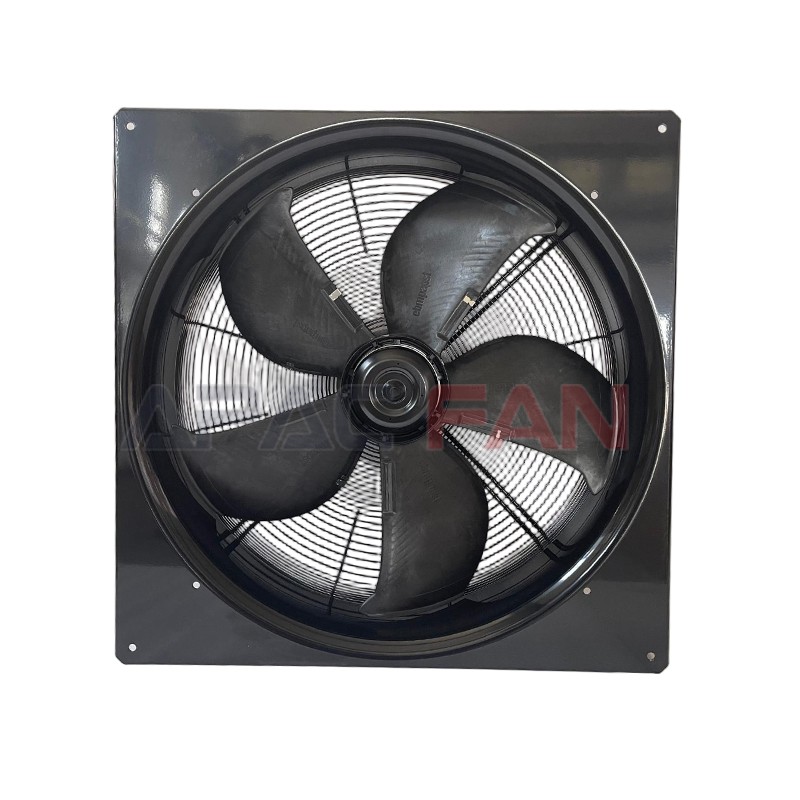

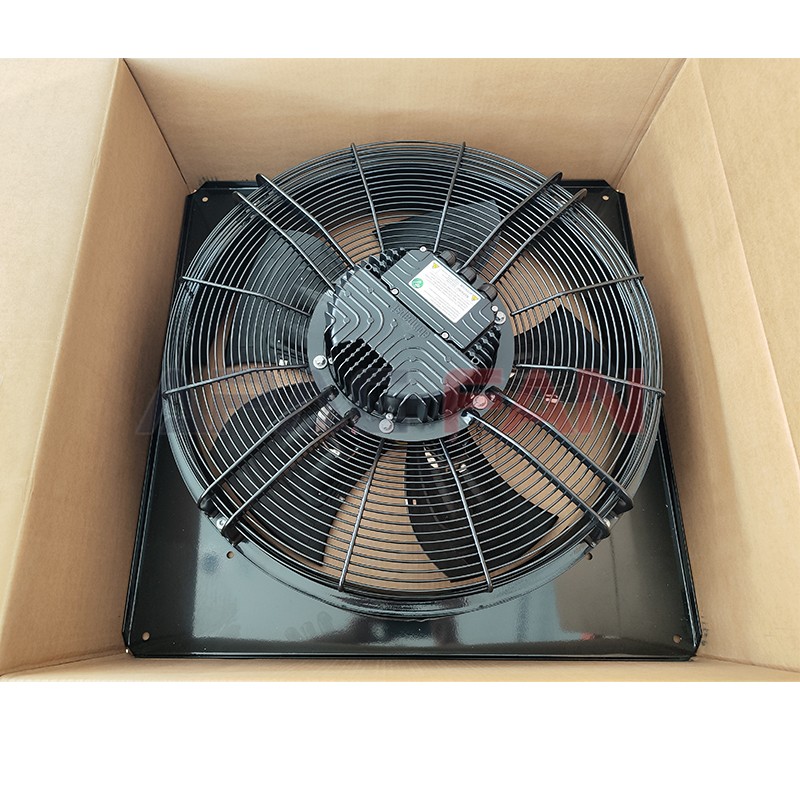

W3G630-NP04-H1 Ebm-papst Axial Fan
Brand：
ebmpapst
Category：
Axial Fan
Description：
Brand：ebmpapst
Part No：W3G630-NP04-H1
Fan Type：Axial Fan
Rated Voltage(V)：230
Size(mm)：630
Max.Air Flow(m³/h)：10430
Max.Pressure(Pa)：100
Input Power(W)：410
Speed(RPM)：830
Noise(dB)：64
Part No：W3G630-NP04-H1
Fan Type：Axial Fan
Rated Voltage(V)：230
Size(mm)：630
Max.Air Flow(m³/h)：10430
Max.Pressure(Pa)：100
Input Power(W)：410
Speed(RPM)：830
Noise(dB)：64
Nominal data
Brand：
ebmpapst
Part No.：
W3G630-NP04-H1
Fan Type：
Axial Fan
Rated Voltage(V)：
230
Size(mm)：
630
Max.Air Flow(m³/h)：
10430
Max.Pressure(Pa)：
100
Input Power(W)：
410
Speed(rpm)：
830
Noise(db)：
64
Description

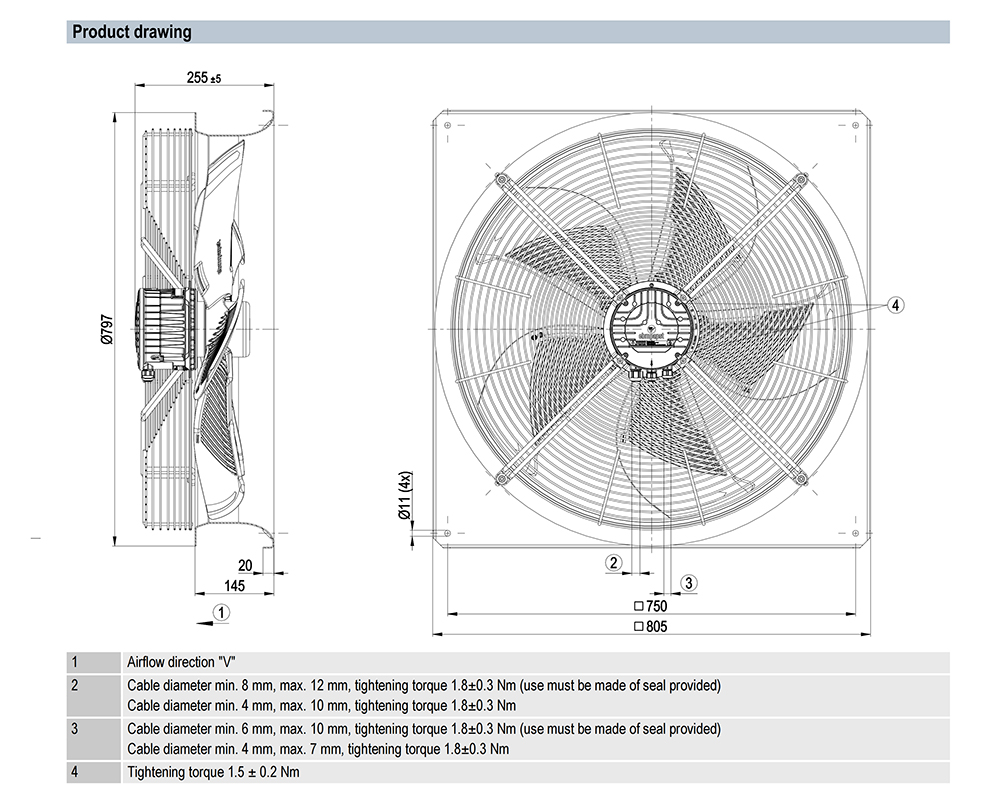

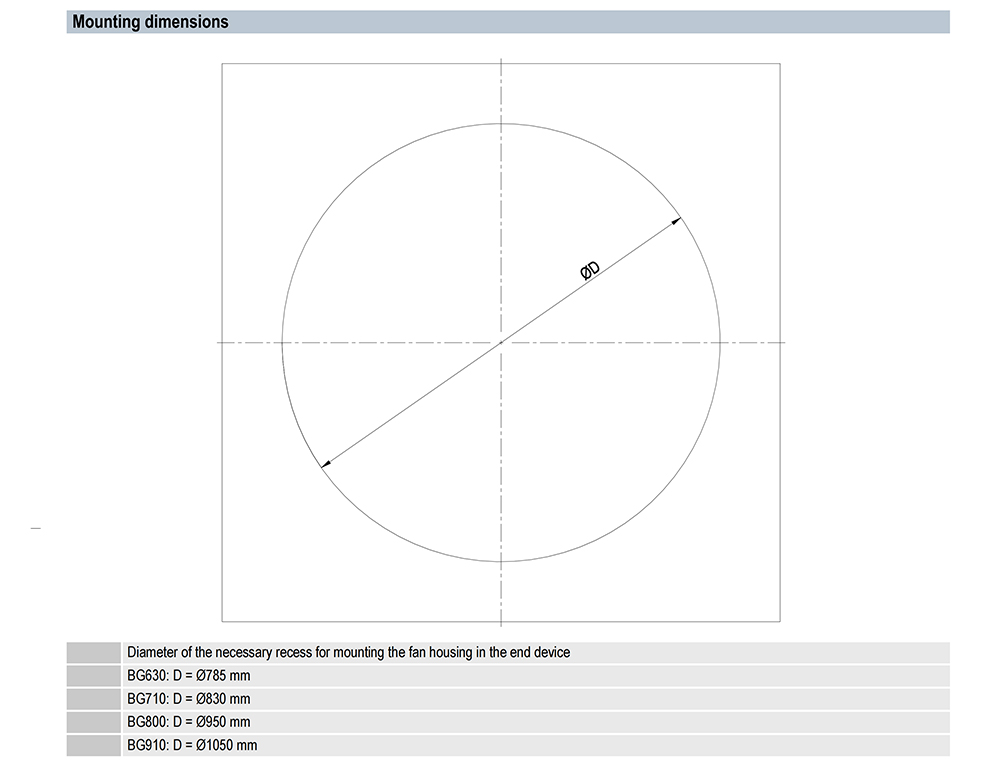

W3G630-NP04-H1 Ebm-papst Specification drawing：
