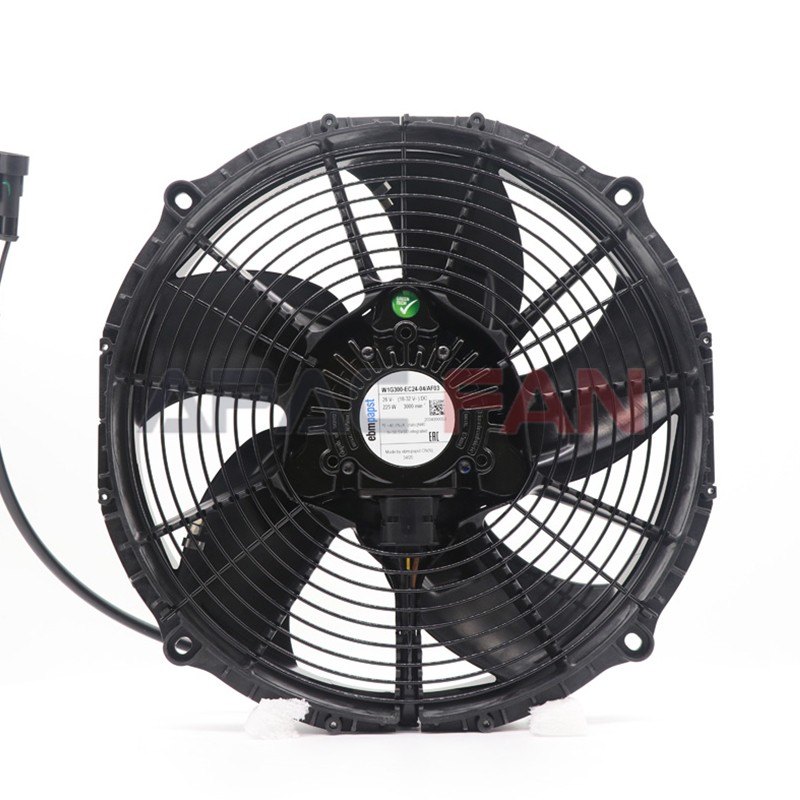

W1G300-EC24-04/AF03 Ebm-papst Axial Fan
Brand：
ebmpapst
Document：
Category：
Axial Fan
Description：
Brand：ebmpapst
Part No：W1G300-EC24-04/AF03
Fan Type：Axial Fan
Rated Voltage(V)：26
Size(mm)：300
Max.Air Flow(m³/h)：2755
Max.Pressure(Pa)：225
Input Power(W)：225
Speed(RPM)：3000
Part No：W1G300-EC24-04/AF03
Fan Type：Axial Fan
Rated Voltage(V)：26
Size(mm)：300
Max.Air Flow(m³/h)：2755
Max.Pressure(Pa)：225
Input Power(W)：225
Speed(RPM)：3000
Nominal data
Brand：
ebmpapst
Part No.：
W1G300-EC24-04/AF03
Fan Type：
Axial Fan
Rated Voltage(V)：
26
Size(mm)：
300
Max.Air Flow(m³/h)：
2755
Max.Pressure(Pa)：
225
Input Power(W)：
225
Speed(rpm)：
3000
Noise(db)：
Description

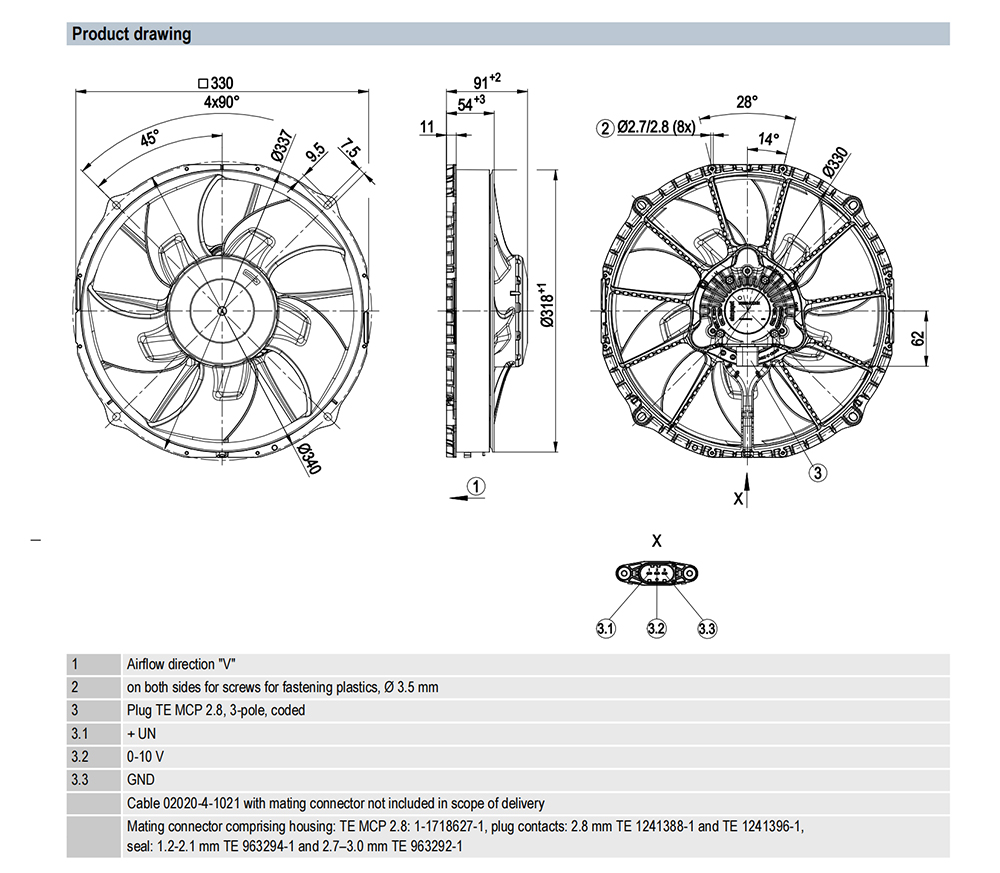

W1G300-EC24-04/AF03 Ebm-papst Specification drawing：
