UF-12AR23BTH

Brand：

ebmpapst

Category：

Axial Fan

Description：

Brand：FULLTECH
Part No：UF-12AR23BTH
Fan Type：Axial Fan
Rated Voltage(V)：230
Size(mm)：120*120*38
Max.Air Flow(m³/h)：168
Input Power(W)：15
Speed(RPM)：3100
Noise(dB)：47

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

UF-12AR23BTH

Fan Type：

Axial Fan

Rated Voltage(V)：

230

Size(mm)：

120*120*38

Max.Air Flow(m³/h)：

168

Max.Pressure(Pa)：

Input Power(W)：

15

Speed(rpm)：

3100

Noise(db)：

47

Description

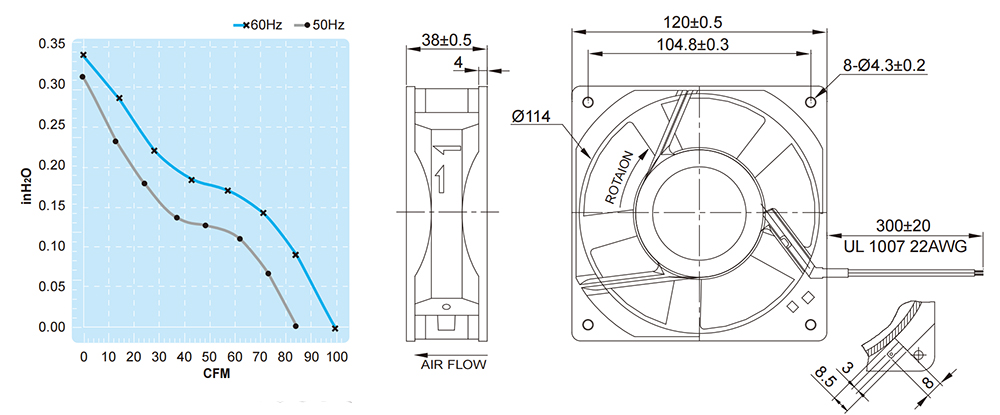

UF-12AR23BTH FULLTECH Specification drawing：
