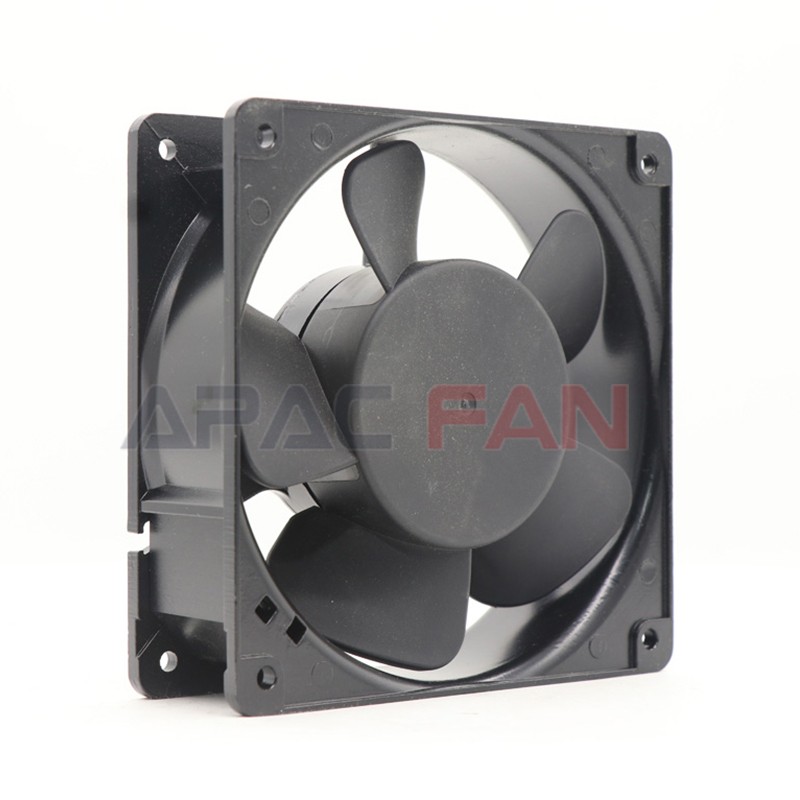

UF-12A23BTM

Brand：

Fulltech

Category：

Axial Fan

Description：

Brand：FULLTECH
Part No：UF-12A23BTM
Fan Type：Axial Fan
Rated Voltage(V)： 230
Size(mm)：120*120*38
Max.Air Flow(m³/h)：156.4
Input Power(W)：15
Speed(RPM)：2750
Noise(dB)：42

00852-56261528 info@apacfan.com

Nominal data

Brand：

Fulltech

Part No.：

UF-12A23BTM

Fan Type：

Axial Fan

Rated Voltage(V)：

230

Size(mm)：

120*120*38

Max.Air Flow(m³/h)：

156

Max.Pressure(Pa)：

Input Power(W)：

15

Speed(rpm)：

2750

Noise(db)：

42

Description

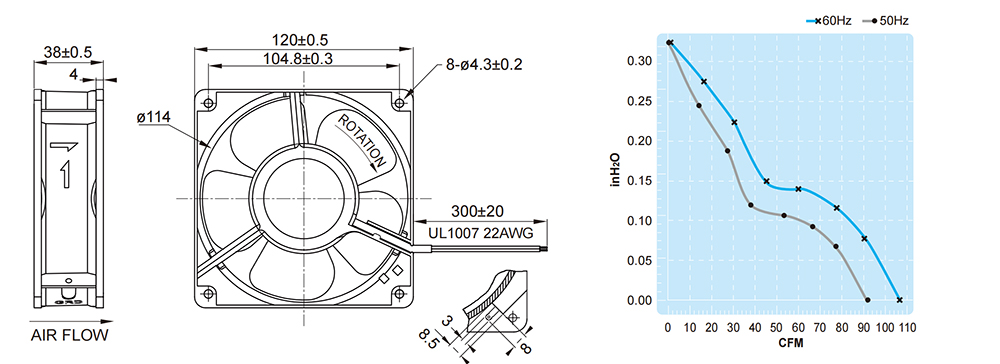

UF-12A23BTM FULLTECH Specification drawing：
