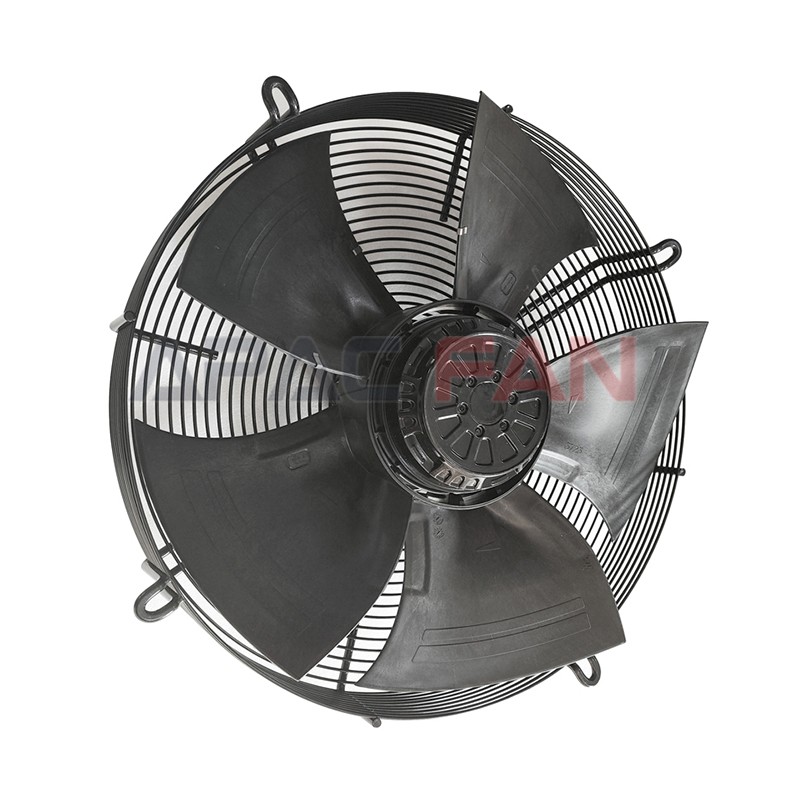

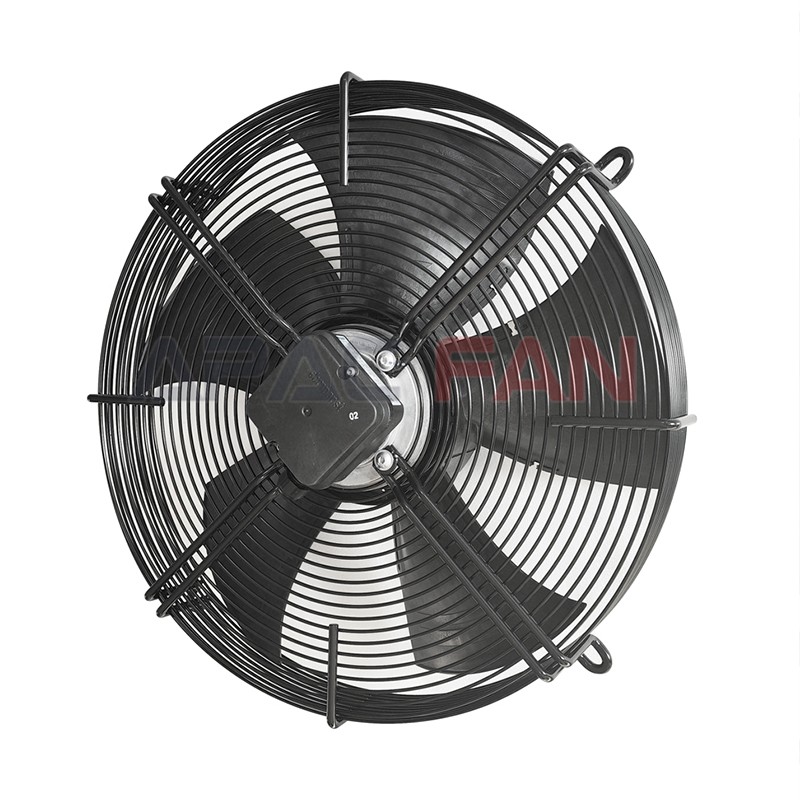

S4D500-AD01-05 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Category：

Axial Fan

Description：

Brand：ebmpapst
Part No：S4D500-AD01-05
Fan Type：Axial Fan
Rated Voltage(V)：400
Size(mm)：500
Max.Air Flow(m³/h)：11295
Max.Pressure(Pa)：135
Input Power(W)：1096
Speed(RPM)：1480
Noise(dB)：73

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

S4D500-AD01-05

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

500

Max.Air Flow(m³/h)：

11295

Max.Pressure(Pa)：

135

Input Power(W)：

1096

Speed(rpm)：

1480

Noise(db)：

73

Description

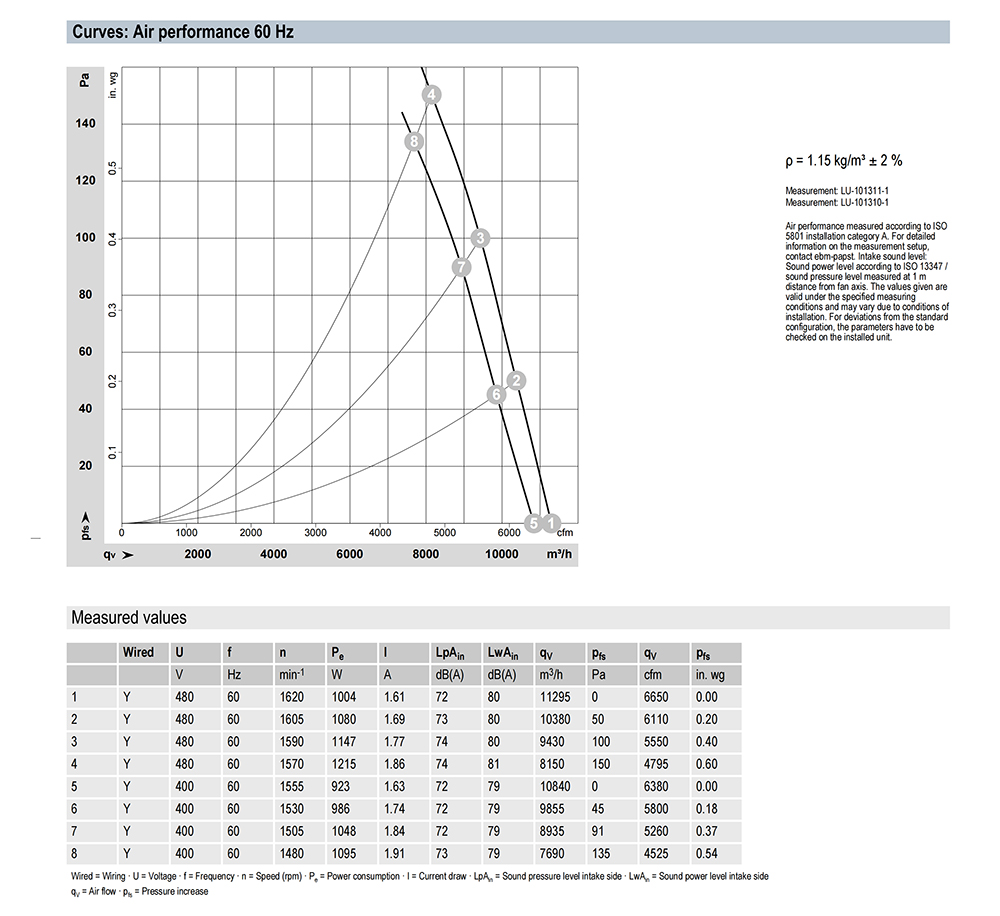

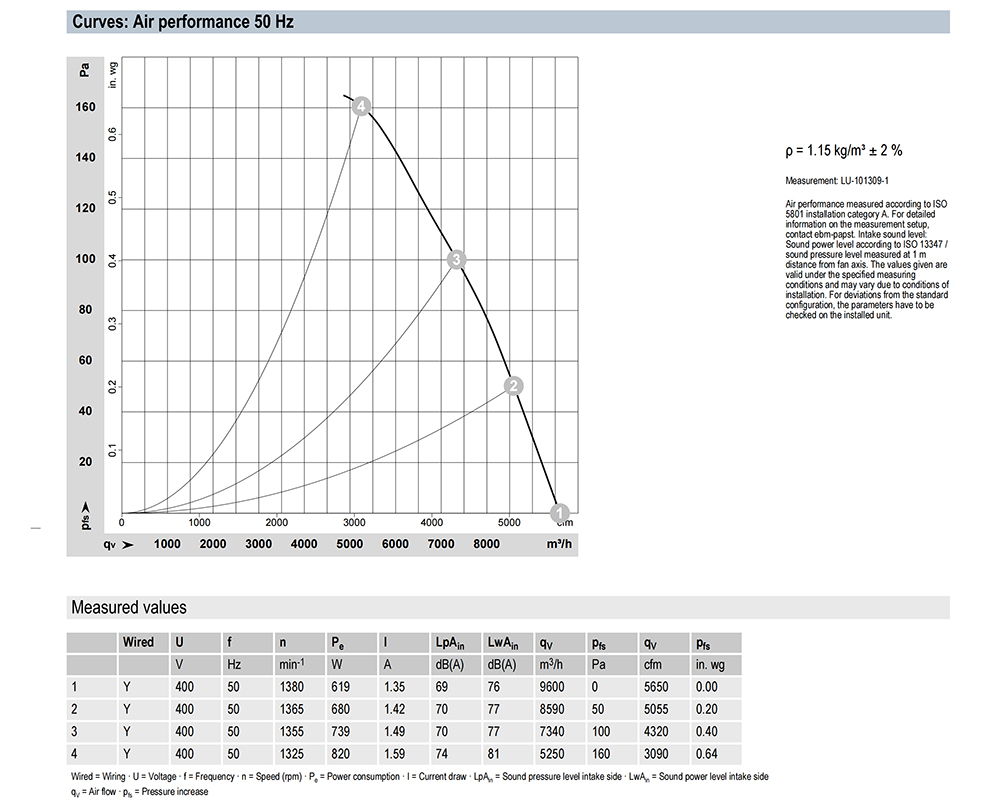

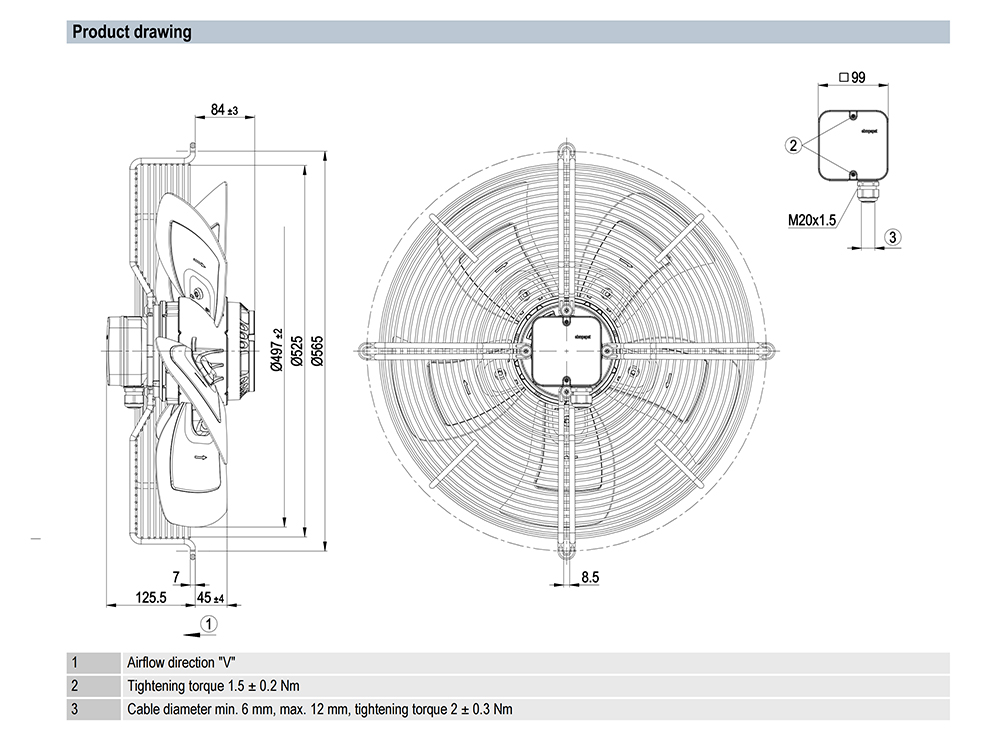

S4D500-AD01-05 Ebm-papst Specification drawing：
