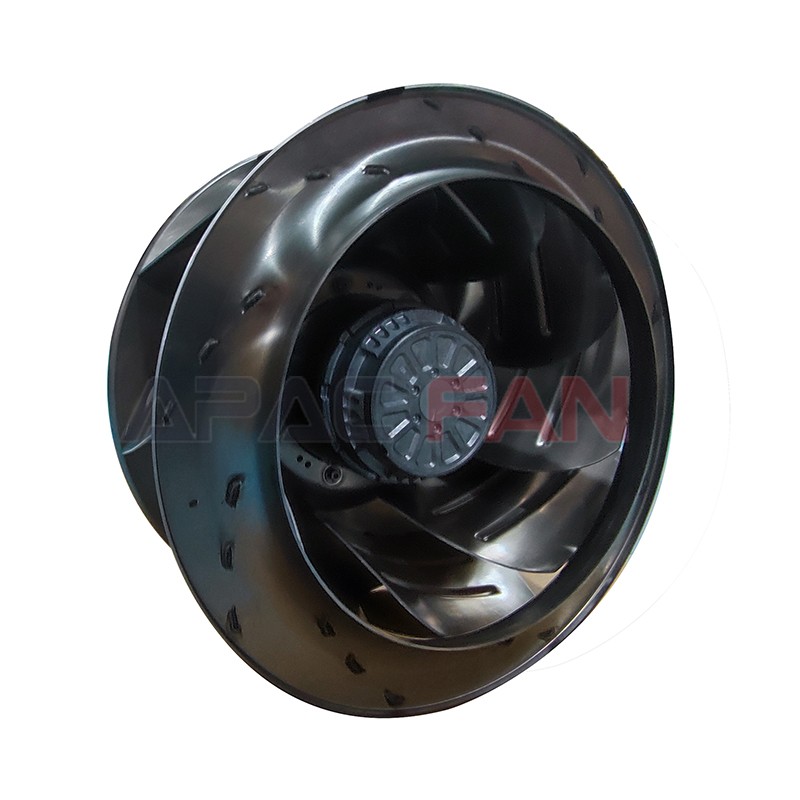

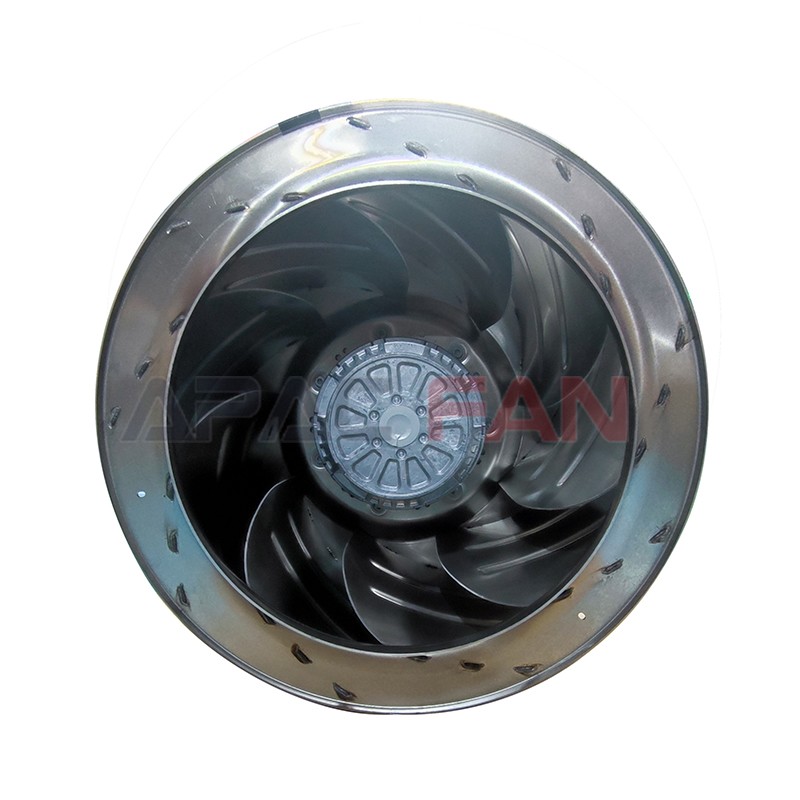

R4D560-AW03-05 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Document：

R4D560AW0305.PDF

Category：

Centrifugal Fan

Description：

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

R4D560-AW03-05

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

480

Size(mm)：

560

Max.Air Flow(m³/h)：

13680

Max.Pressure(Pa)：

900

Input Power(W)：

3800

Speed(rpm)：

1610

Noise(db)：

78

Description

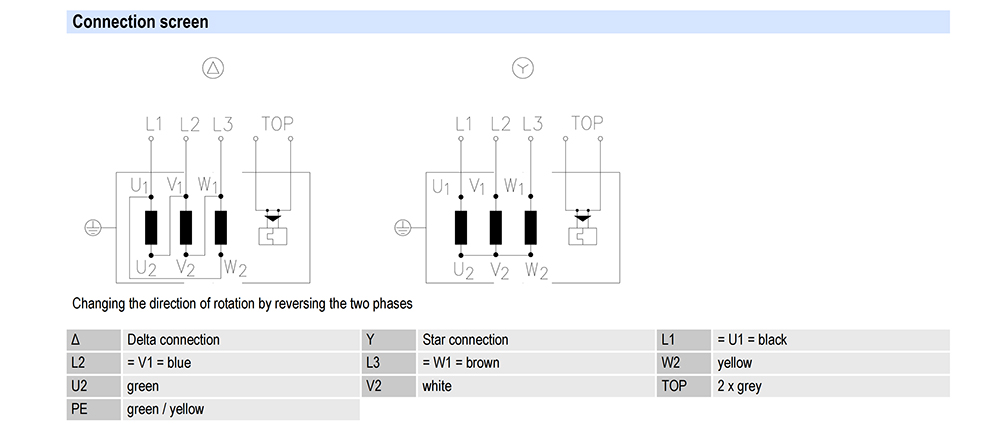

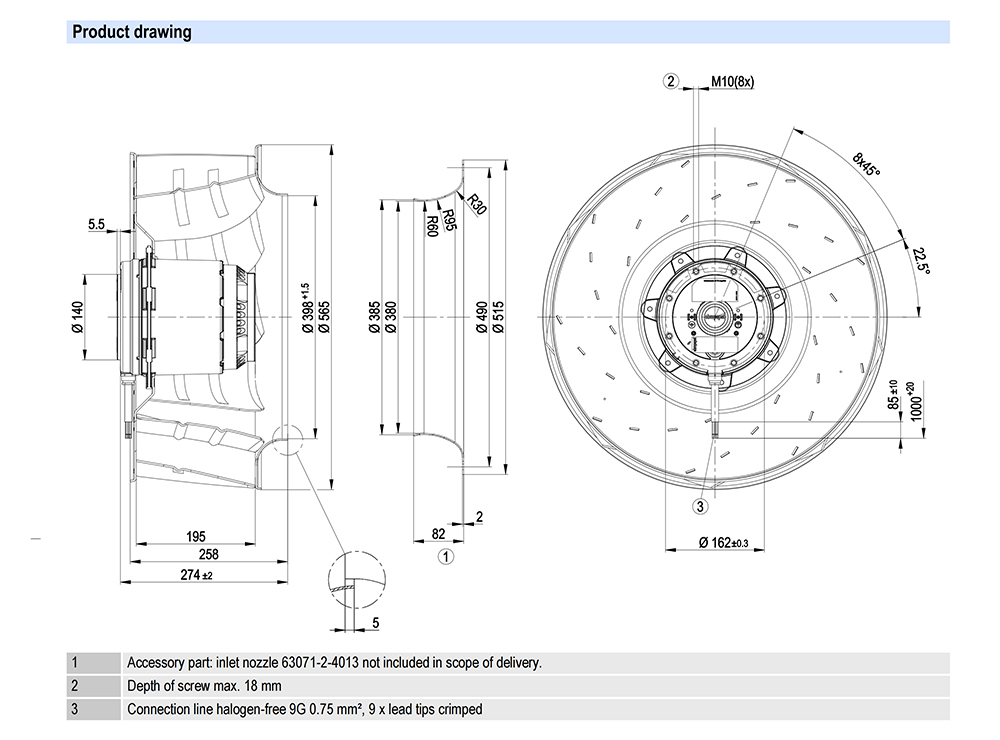

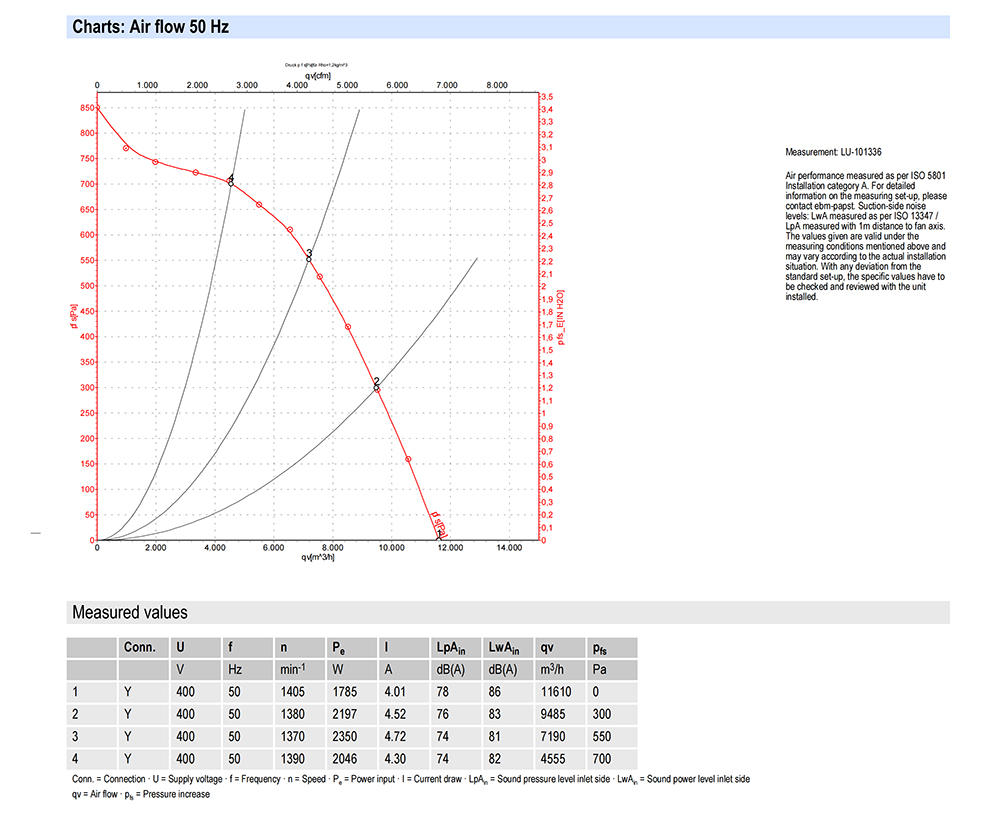

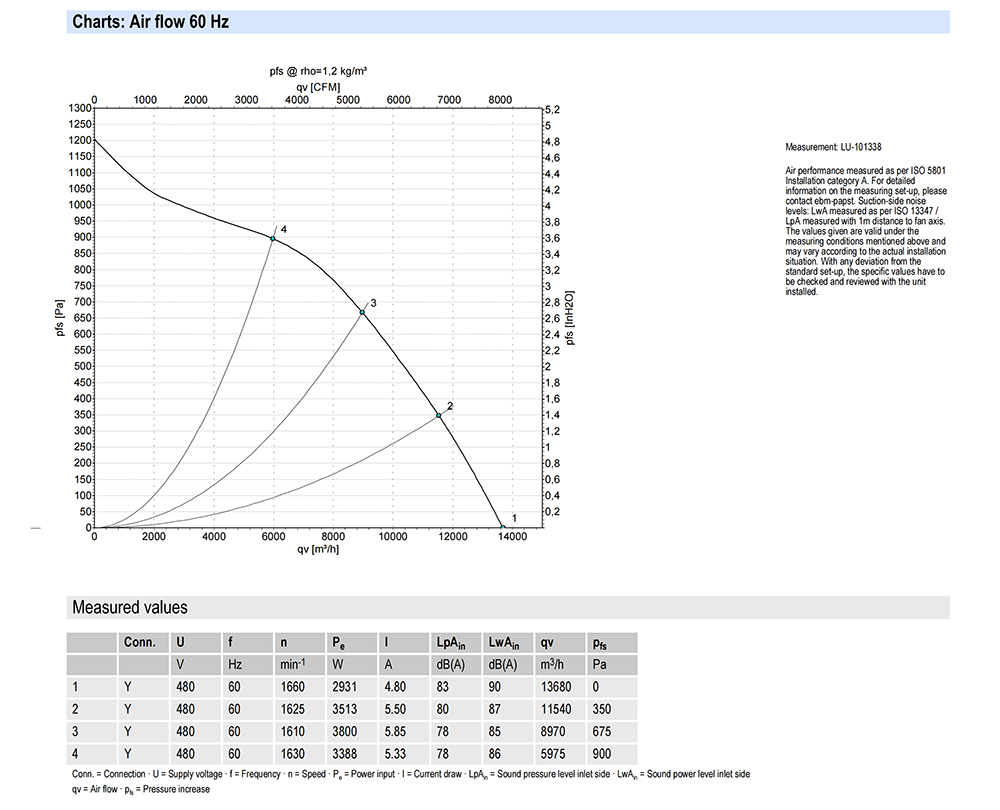

R4D560-AW03-05 Ebm-papst Specification Drawing：
