R4D500-RA03-01/SO3 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Document：

R4D500RA0301SO3.PDF

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：R4D500-RA03-01/SO3
Fan Type：Centrifugal Fan
Rated Voltage(V)：400
Size(mm)：500
Max.Air Flow(m³/h)：6040
Max.Pressure(Pa)：650
Input Power(W)：1520
Speed(RPM)：1370
Noise(dB)：73

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

R4D500-RA03-01/SO3

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

500

Max.Air Flow(m³/h)：

6040

Max.Pressure(Pa)：

650

Input Power(W)：

1520

Speed(rpm)：

1370

Noise(db)：

73

Description

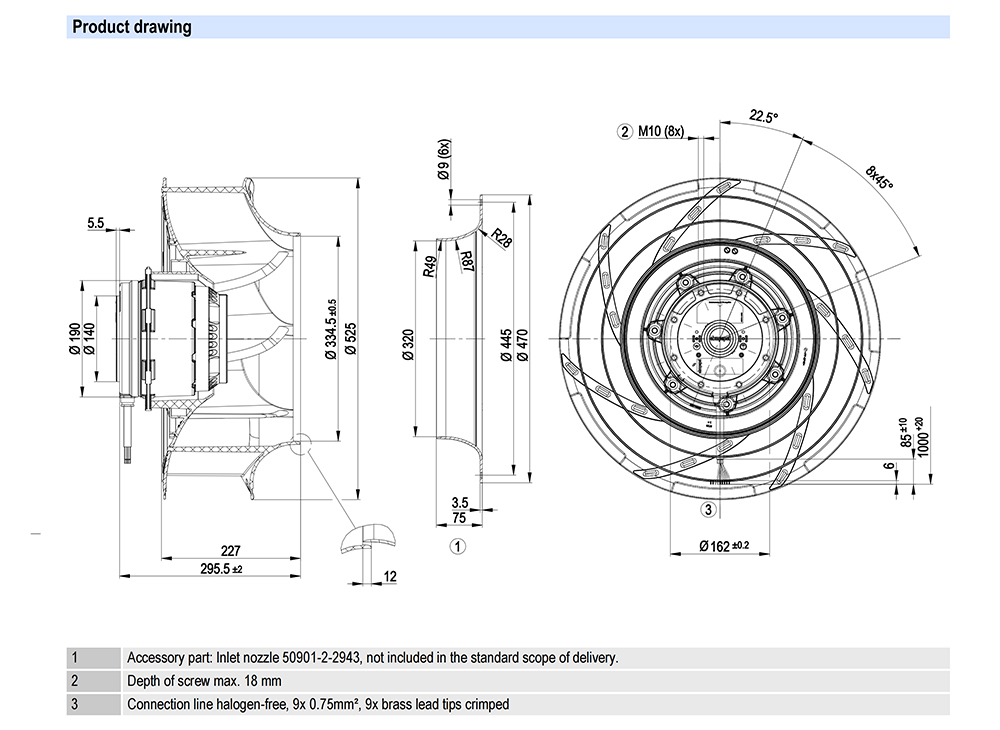

R4D500-RA03-01/SO3 Ebm-papst Specification drawing：
