R3G355-RJ91-02/F01 Ebm-papst Specification drawing：

Brand：

ebmpapst

Document：

R3G355RJ9102.PDF

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：R3G355-RJ91-02/F01
Fan Type：Centrifugal Fan
Rated Voltage(V)：400
Size(mm)：355
Max.Air Flow(m³/h)：6155
Max.Pressure(Pa)：1100
Input Power(W)：1500
Speed(RPM)：2660
Noise(dB)：74

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

R3G355-RJ91-02/F01

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

355

Max.Air Flow(m³/h)：

6155

Max.Pressure(Pa)：

1100

Input Power(W)：

1500

Speed(rpm)：

2660

Noise(db)：

74

Description

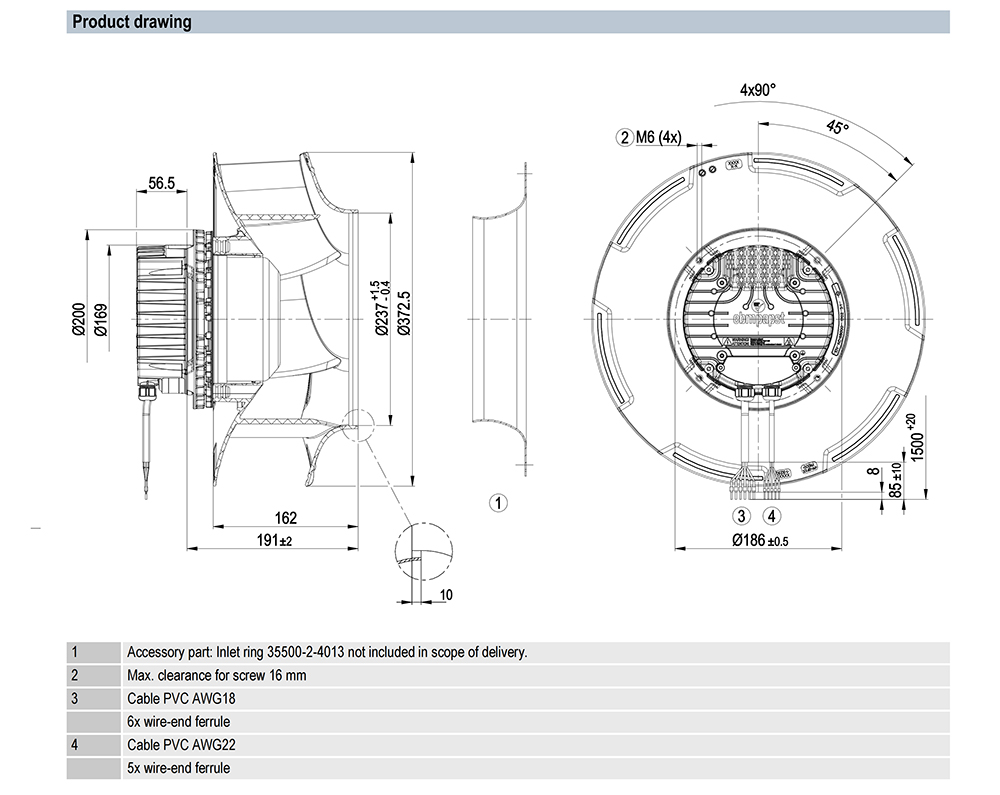

R3G355-RJ91-02/F01 Ebm-papst Specification drawing：
