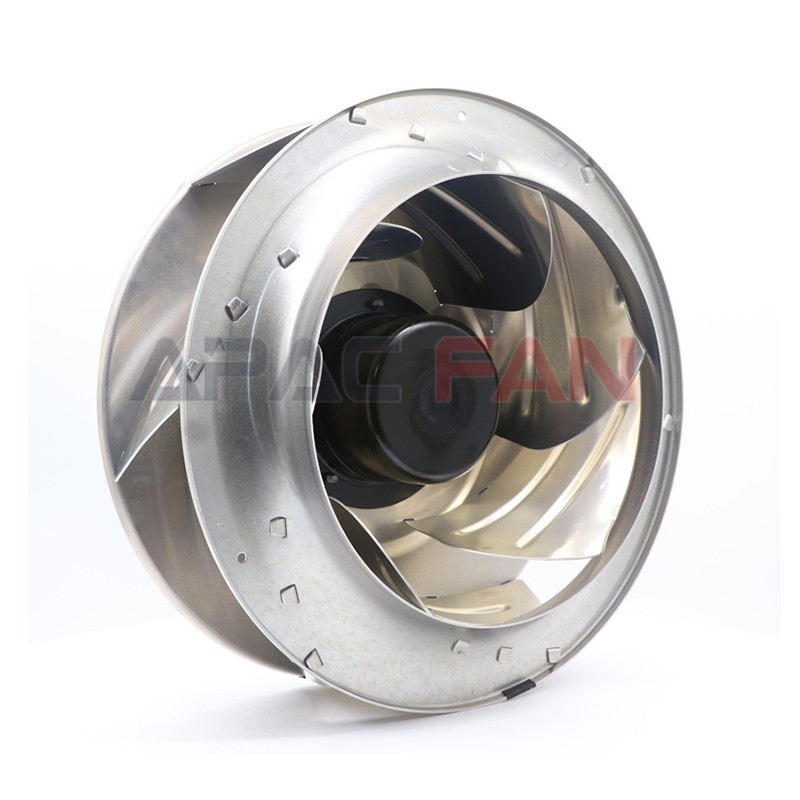

R3G355-AY40-01 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：R3G355-AY40-01
Fan Type：Centrifugal Fan
Rated Voltage(V)：400
Size(mm)：355
Max.Air Flow(m³/h)：6670
Max.Pressure(Pa)：1050
Input Power(W)：1700
Speed(RPM)：2600
Noise(dB)：75

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

R3G355-AY40-01

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

355

Max.Air Flow(m³/h)：

6670

Max.Pressure(Pa)：

1050

Input Power(W)：

1700

Speed(rpm)：

2600

Noise(db)：

75

Description

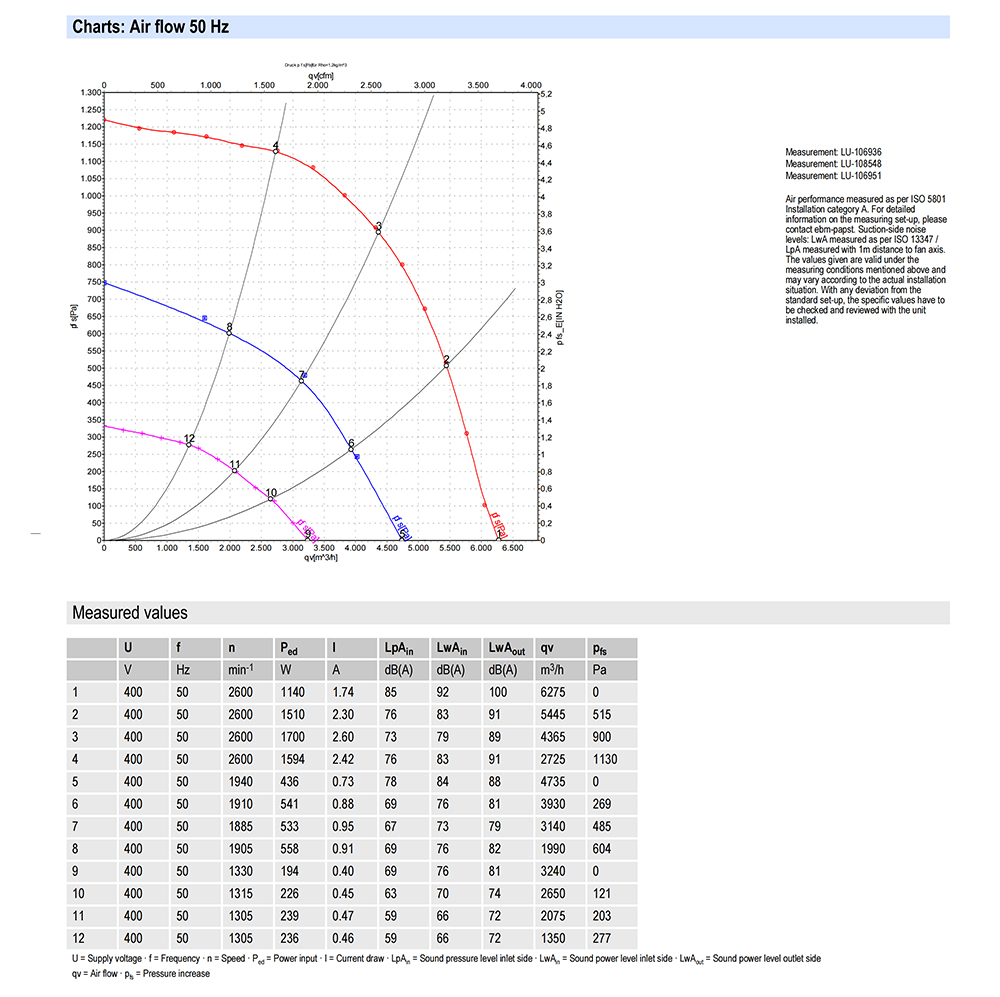

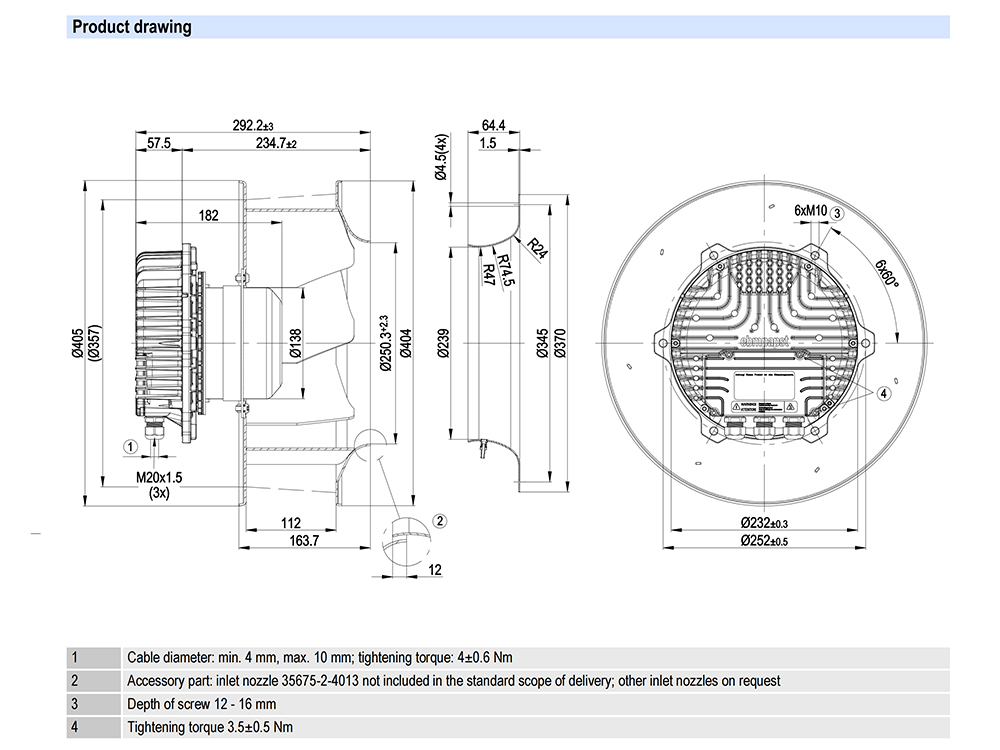

R3G355-AY40-01 Ebm-papst Specification drawing：
