R3G225-RE07-20 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Document：

R3G225RE0720.PDF

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：R3G280-RNB4-10
Fan Type：Centrifugal Fan
Rated Voltage(V)：48
Size(mm)：280
Max.Air Flow(m³/h)：2235
Max.Pressure(Pa)：374
Input Power(W)：140
Speed(RPM)：1900
Noise(dB)：66

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

R3G225-RE07-20

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

48

Size(mm)：

225

Max.Air Flow(m³/h)：

2235

Max.Pressure(Pa)：

374

Input Power(W)：

140

Speed(rpm)：

1900

Noise(db)：

66

Description

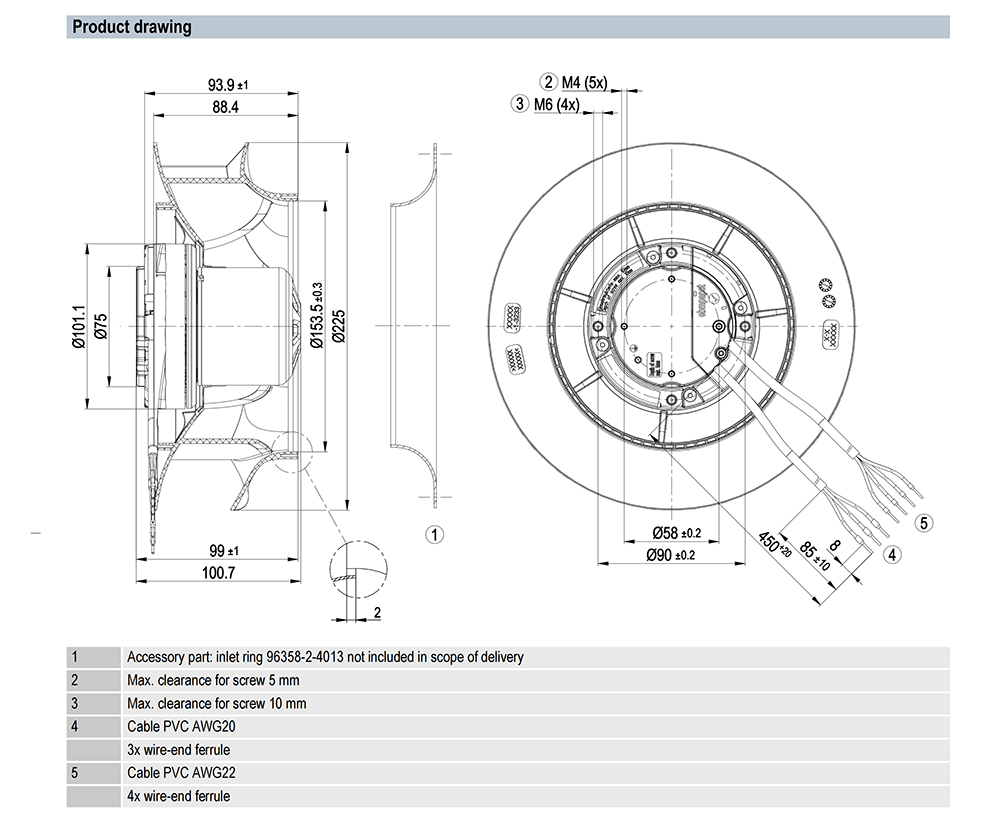

R3G225-RE07-20 Ebm-papst Specification drawing：
