R3G220-RD53-03 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Document：

R3G220RD5303.PDF

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：R3G220-RD53-03
Fan Type：Centrifugal Fan
Rated Voltage(V)：230
Size(mm)：220
Max.Air Flow(m³/h)：1290
Max.Pressure(Pa)：550
Input Power(W)：168
Speed(RPM)：3230
Noise(dB)：62

00852-56261528 info@apacfan.com

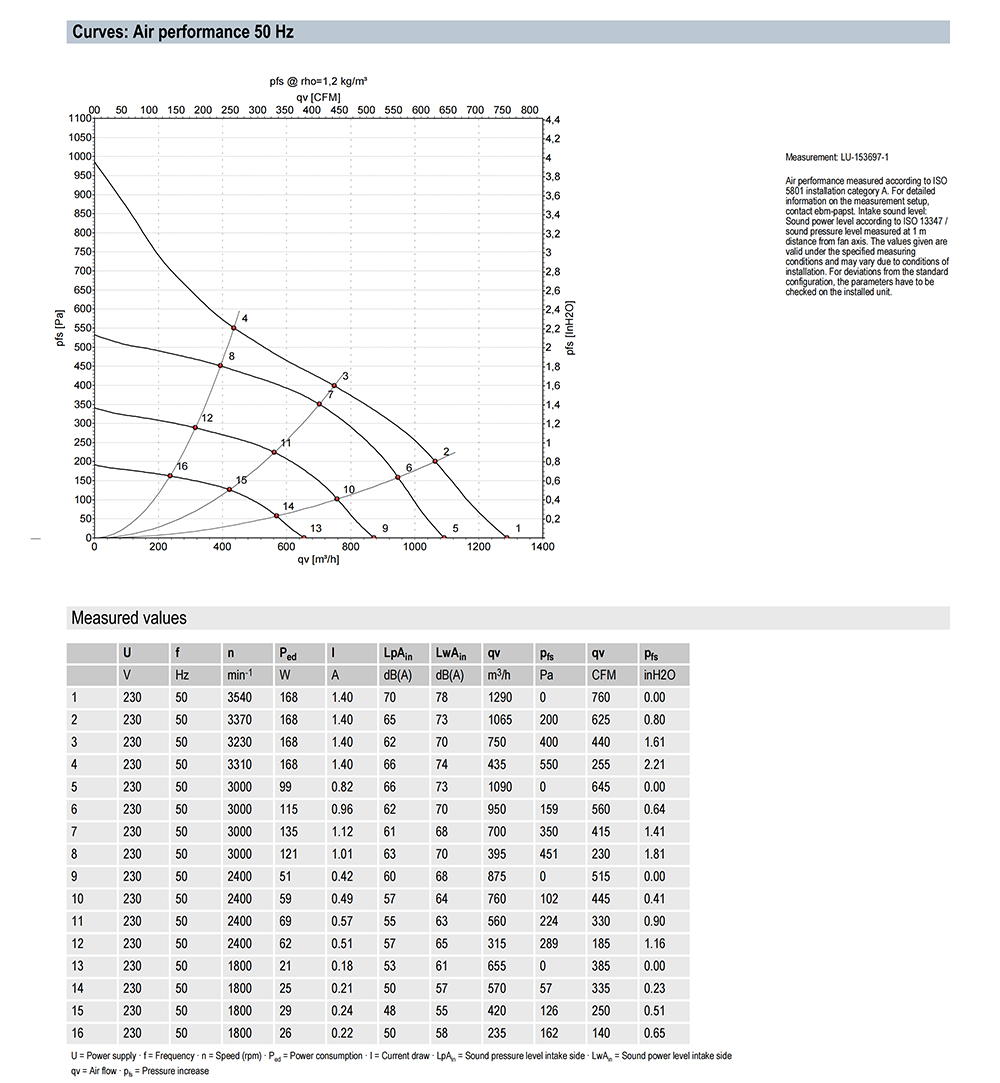

Nominal data

Brand：

ebmpapst

Part No.：

R3G220-RD53-03

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

230

Size(mm)：

220

Max.Air Flow(m³/h)：

1290

Max.Pressure(Pa)：

550

Input Power(W)：

168

Speed(rpm)：

3230

Noise(db)：

62

Description

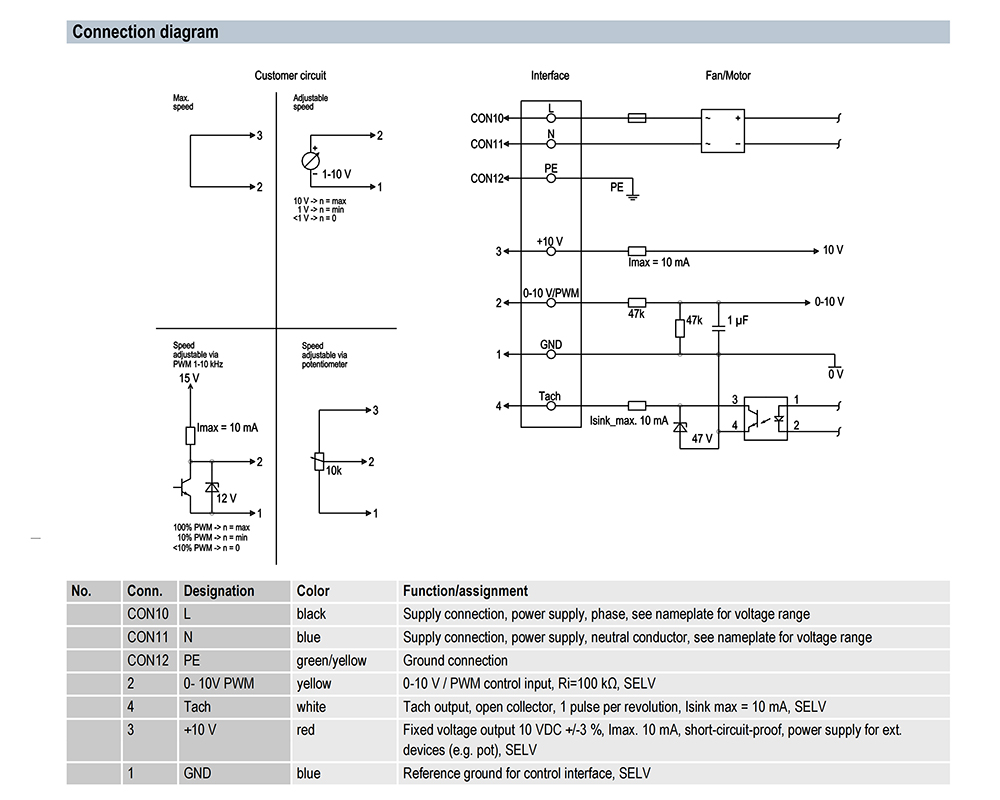

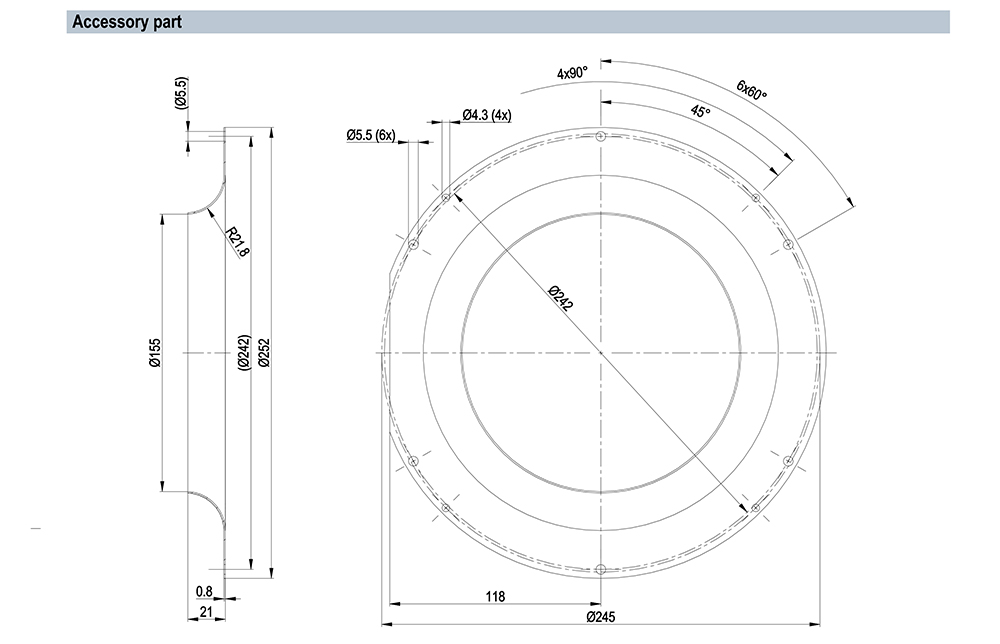

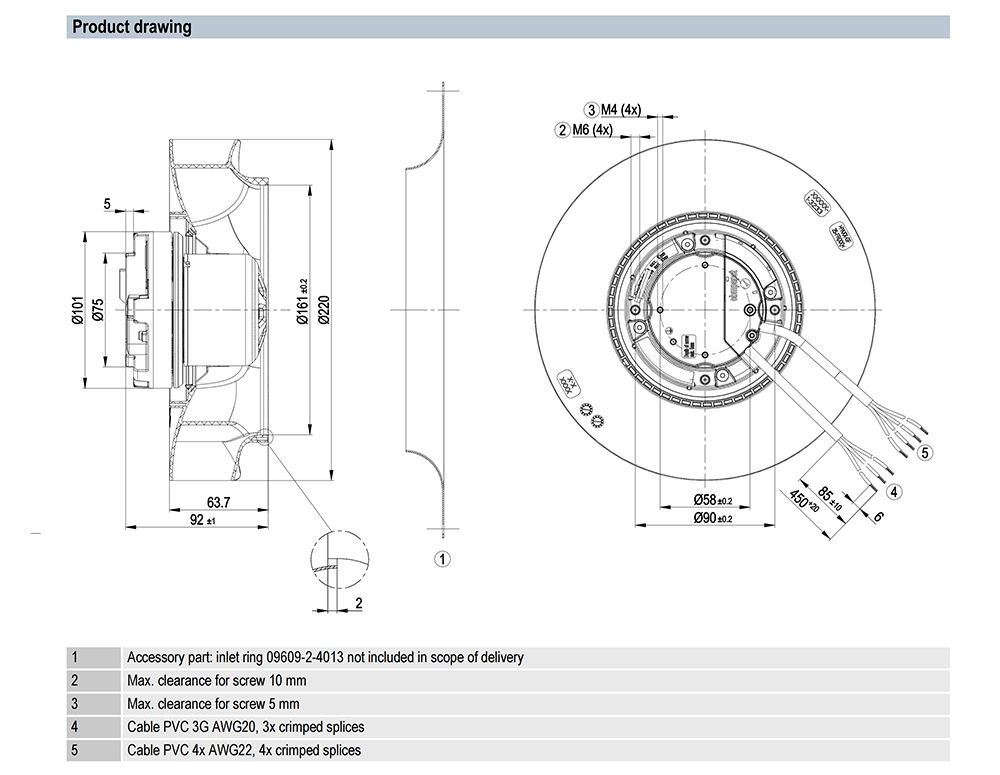

R3G220-RD53-03 Ebm-papst Specification drawing：
