ebmpapst K3G450-PB24-01/F01 EC Centrifugal Fan for AHU

Brand：

ebmpapst

Document：

K3G450PB2401F01.PDF

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：K3G450-PB24-01/F01
Fan Type：Centrifugal Fan
Rated Voltage(V)：400
Size(mm)：450
Max.Air Flow(m³/h)：15055
Max.Pressure(Pa)：1400
Input Power(W)：5250
Speed(RPM)：2600

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

K3G450-PB24-01/F01

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

450

Max.Air Flow(m³/h)：

15055

Max.Pressure(Pa)：

1400

Input Power(W)：

5250

Speed(rpm)：

2600

Noise(db)：

Description

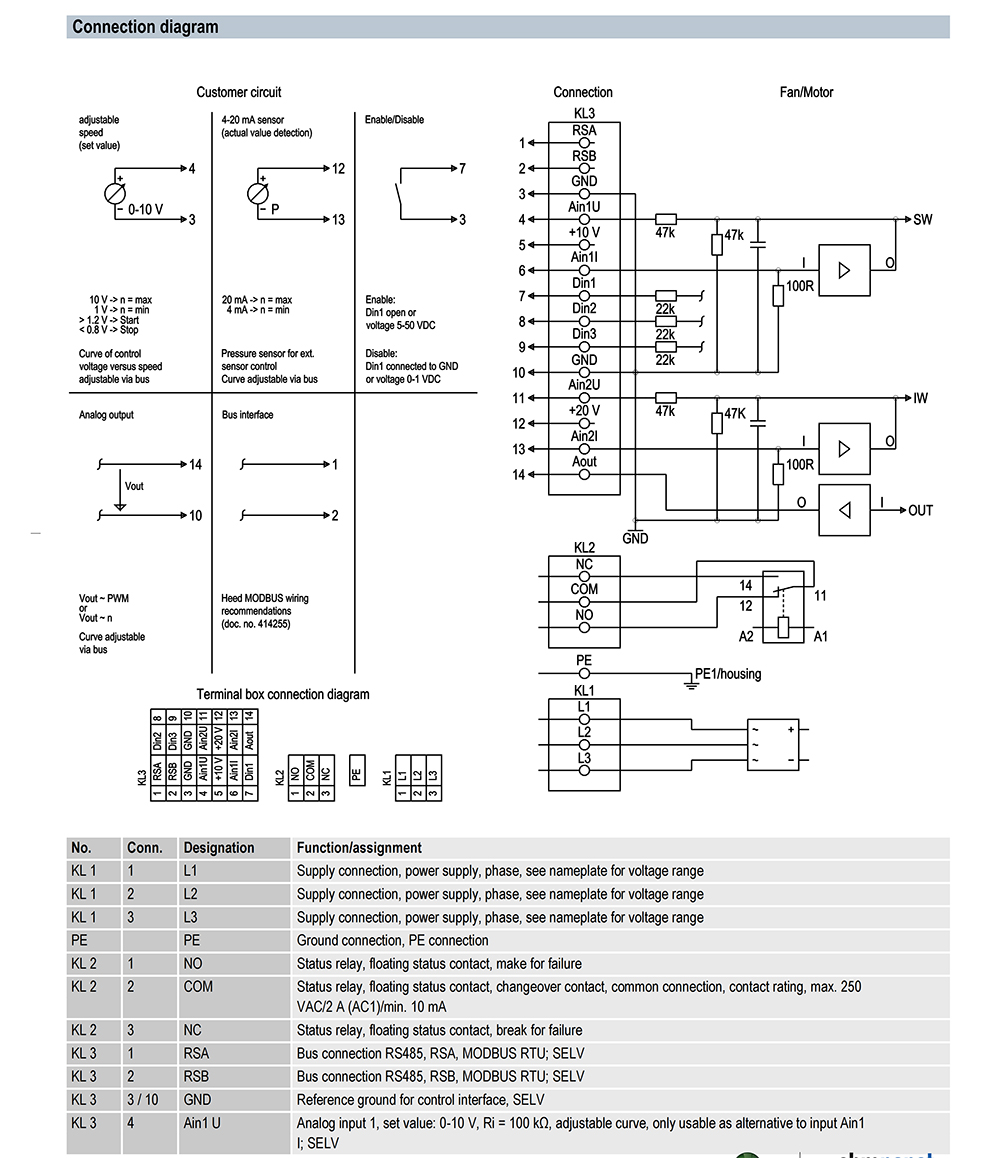

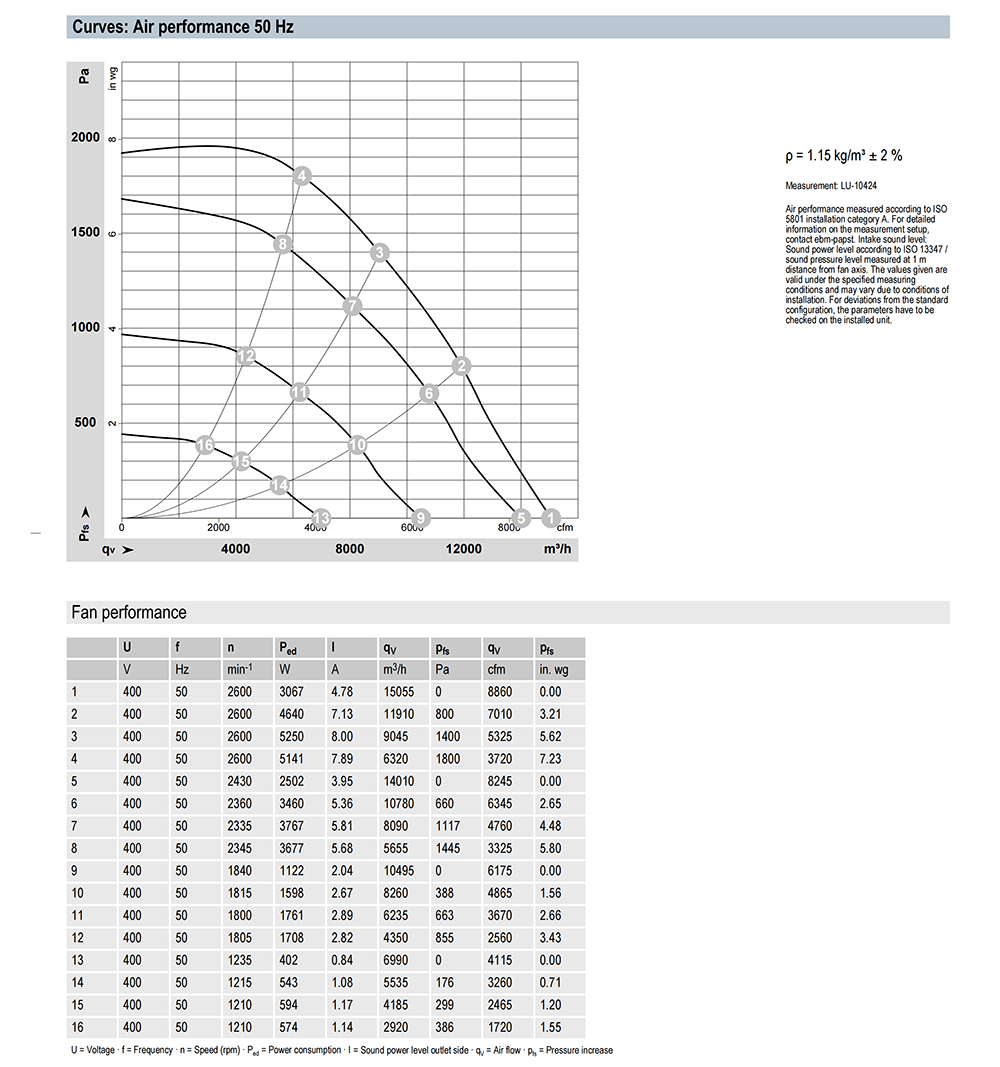

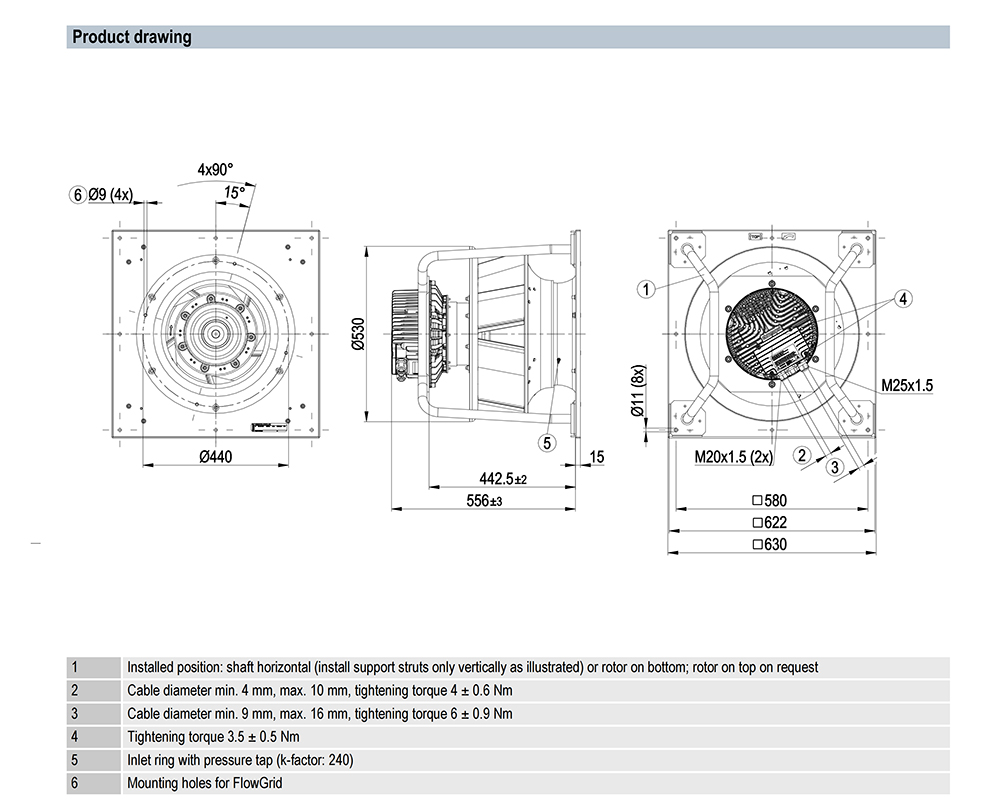

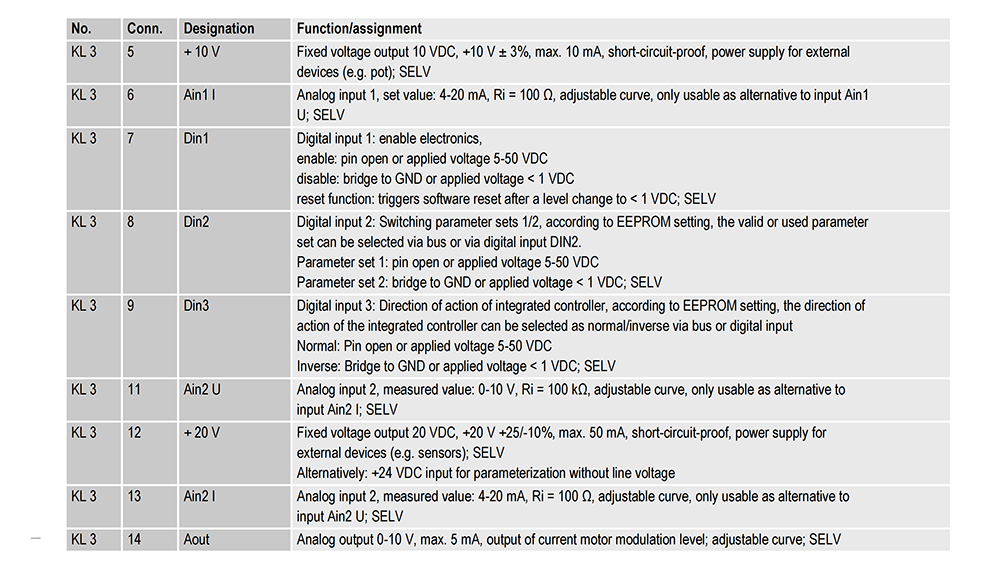

K3G450-PB24-01/F01 Ebm-papst Specification drawing：
