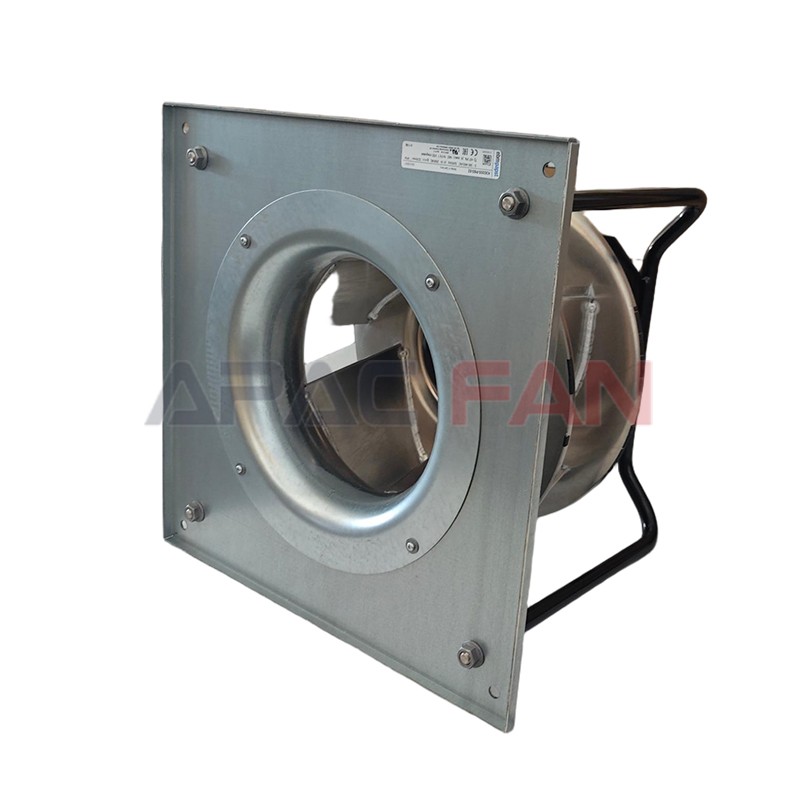

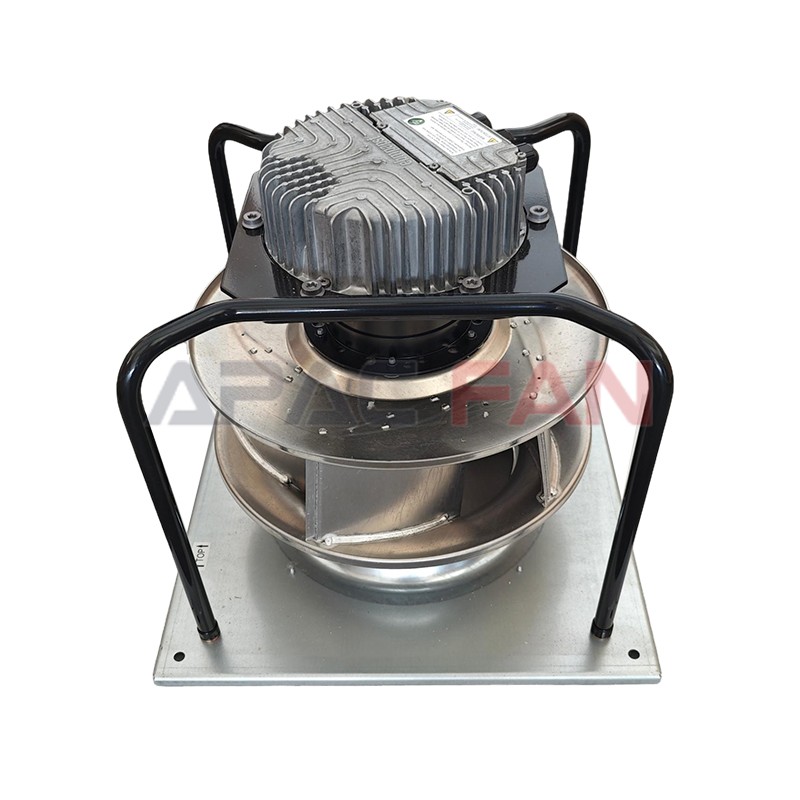

K3G355-PI93-02 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：K3G355-PI93-02
Fan Type：Centrifugal Fan
Rated Voltage(V):400
Size(mm)：355
Max.Air Flow(m³/h)：8190
Max.Pressure(Pa)：1600
Input Power(W)：2680
Speed(rpm)：3230
Noise(db)：50

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

K3G355-PI93-02

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

355

Max.Air Flow(m³/h)：

8190

Max.Pressure(Pa)：

1600

Input Power(W)：

2680

Speed(rpm)：

3230

Noise(db)：

50

Description

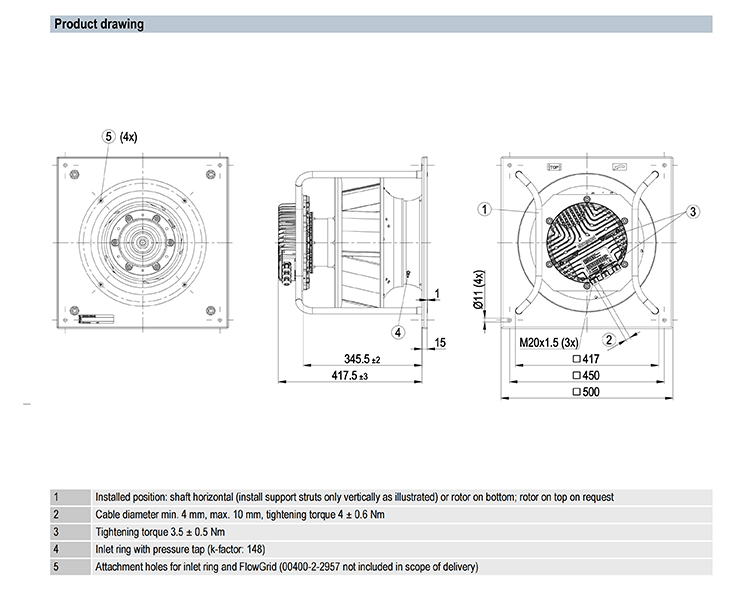

K3G355-PI93-02 Ebm-papst Specification drawing：
