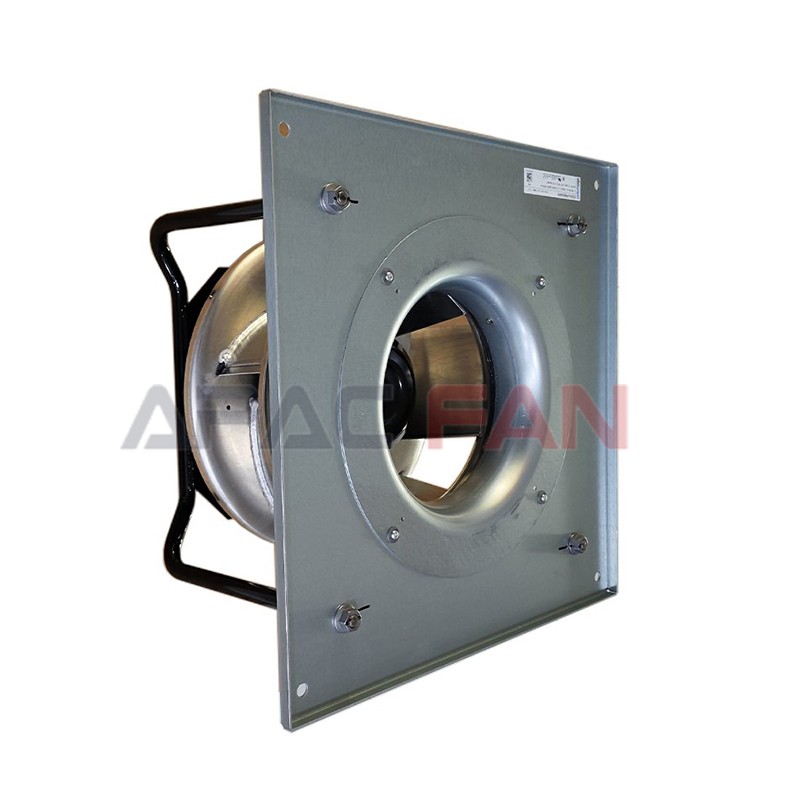

K3G310-PV69-05 ebm-papst Centrifugal Fan
EC technology enables high efficiency and energy savings.
It supports multiple speed control methods such as 0-10V, PWM, and RS485 (MODBUS).
It achieves "plug-and-play" for easy installation.
Nominal data
Description

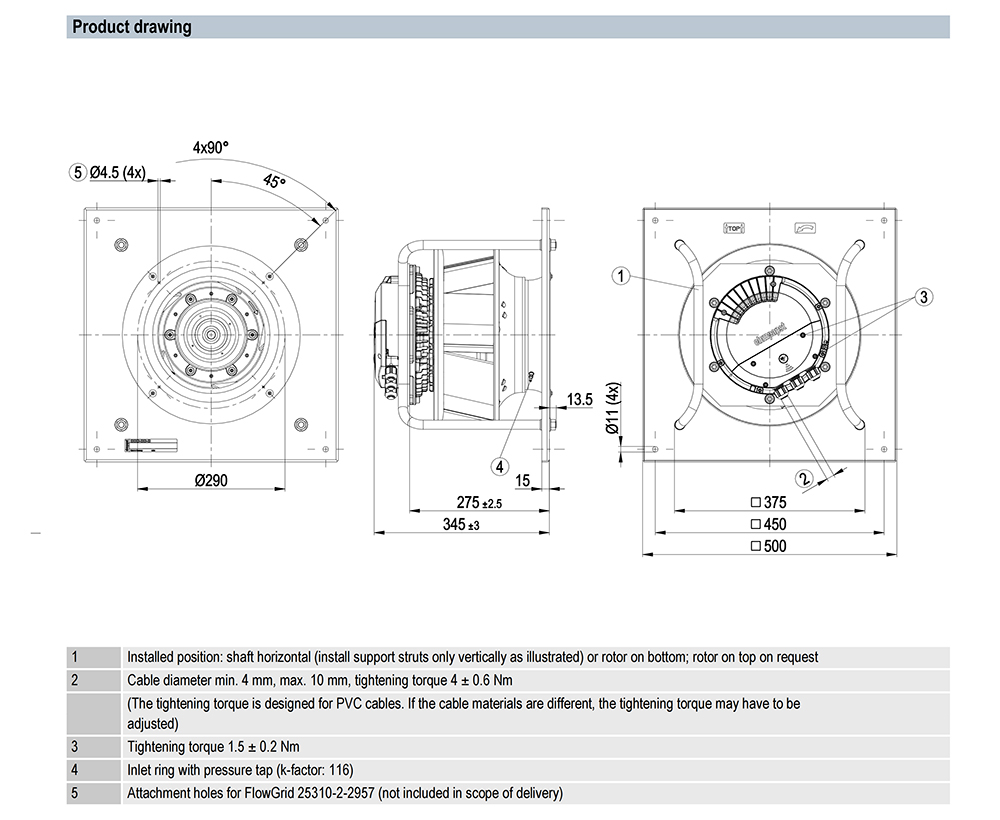

K3G310-PV69-05 Ebm-papst Specification drawing：
Applications
Centrifugal fans of this type can be considered for AHUs, industrial ventilation, equipment cooling and other systems with duct, coil, filter or heat-exchanger resistance, provided the operating point matches the fan.
Selection and Replacement
Use the actual system airflow and static-pressure requirement when selecting the K3G310-PV69-05. For replacement, confirm the complete suffix, voltage, dimensions, performance and control/electrical connection before ordering.
FAQ
Q1. What is the K3G310-PV69-05?
A1. The K3G310-PV69-05 is a ebm-papst ec centrifugal fan. Use the complete model number when requesting a quotation or checking a replacement.
Q2. What should I check before ordering the K3G310-PV69-05?
A2. Check the complete part number, rated voltage, dimensions, airflow and pressure requirements, input power, speed, mounting arrangement and electrical connection against your equipment requirements.
Q3. Can a similar model replace the K3G310-PV69-05?
A3. A similar base model should not automatically be treated as interchangeable. Confirm the full suffix and the technical data of the existing fan before substitution.
Request Product Information
Looking for the ebm-papst K3G310-PV69-05? Send the complete model number, quantity and application requirements to APAC FAN for product and availability information.
